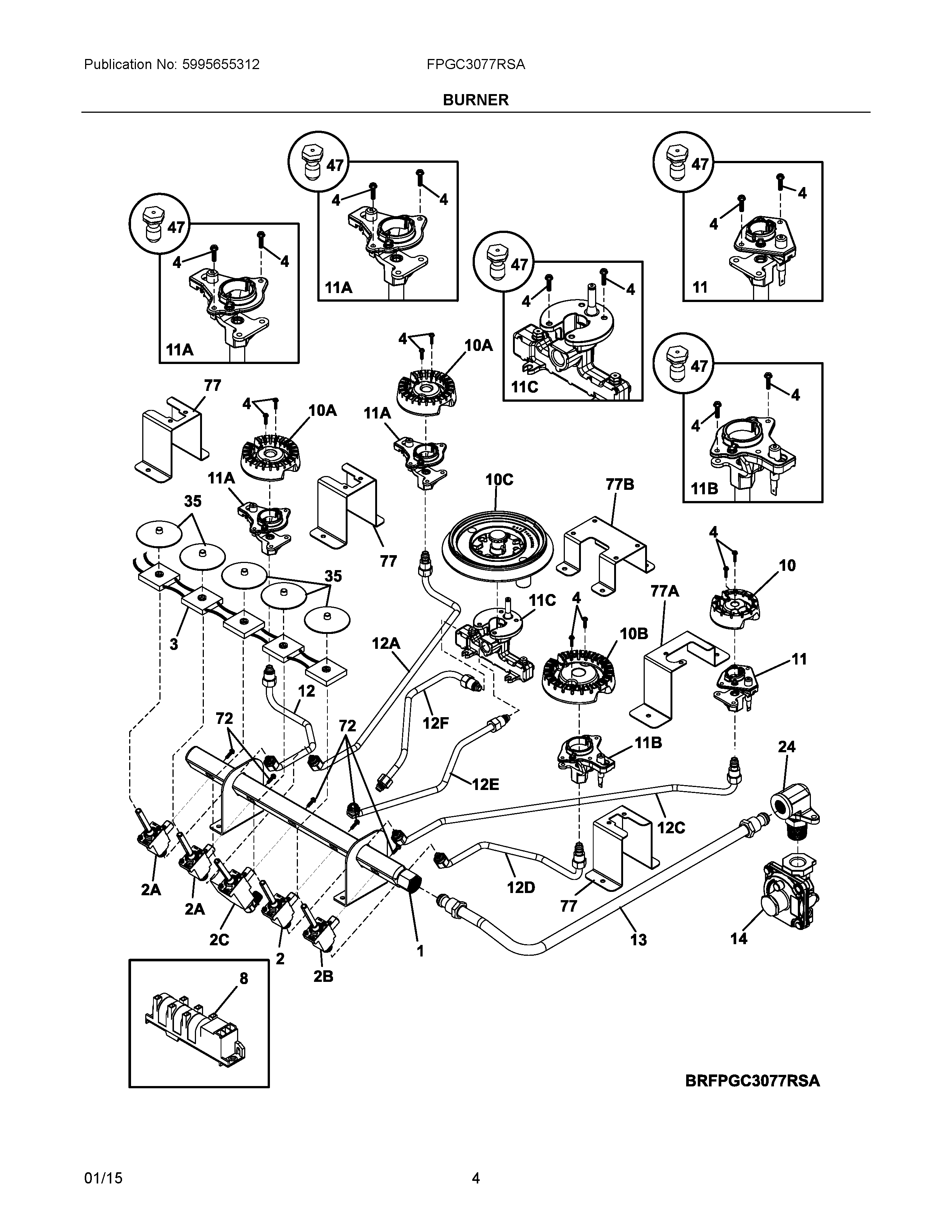

FPGC3077RSA 03 – BURNER

Products

PositionProduct
NI305338602 Frigidaire Screw
NIB305338601 Frigidaire Screw
NICA316566901 Frigidaire Oven Sleeve
NICA5303211311 Frigidaire Refrigerator Screw
NIAWCI 318199780
NI305309701 Frigidaire Oven Screw
1WCI 5304498880
2WCI 316536009
2B316536002 Frigidaire Valve-Top Burner
2A316536000 Frigidaire Top Burner Valve
2CWCI 316272312
3305595107 Frigidaire Assembly Switch
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10C5304519952 Frigidaire Burner Assembly
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
11B5304498788 Frigidaire Igniter/Orifice Assembly
11A5304498787 Frigidaire Igniter Assembly/Orifice
115304498786 Frigidaire Igniter/Orifice Assembly
11C316440107 Frigidaire Igniter/Orifice Assembly
12D5304521187 Frigidaire Oven Tube
12FWCI 5304500248
12C5304531763 Frigidaire Tube
12A5304532033 Frigidaire Tube
12EWCI 5304500249
125304532159 Frigidaire Tube
13WCI 5304498793
145304519943 Frigidaire Regulator
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
47WCI 318565429
72316215600 Frigidaire Oven Screw
77A5304523447 Frigidaire Bracket
775304498799 Frigidaire Bracket
77B5304500254 Frigidaire Bracket
