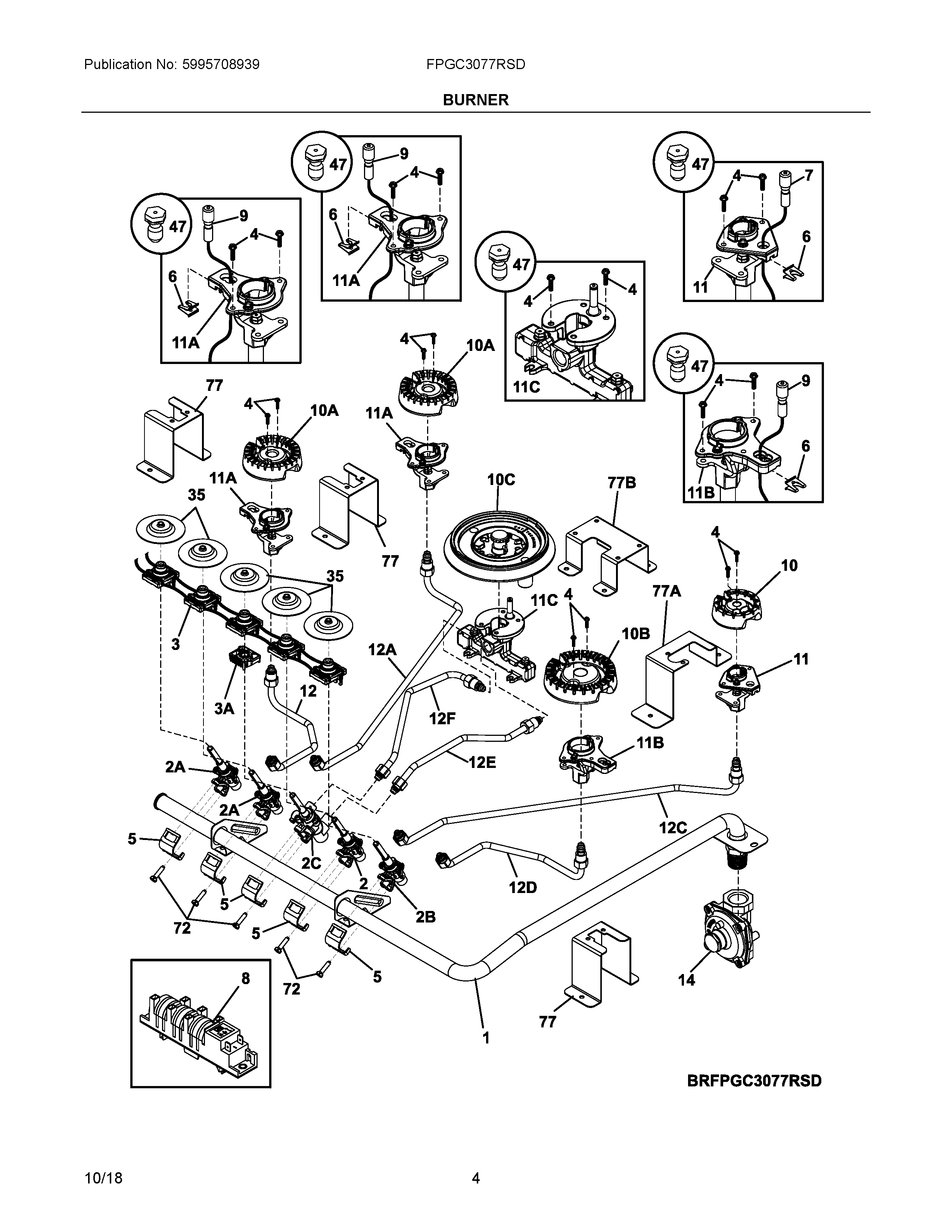

FPGC3077RSD 03 – BURNER

FPGC3077RSD 03 – BURNER

Written by

in

FPGC3077RSD 03 – BURNER

Products

PositionProduct
NIA5304516456 Frigidaire Wire
NI305338602 Frigidaire Screw
NICAWIRING, IGNITOR, G5-600MM, TWIN BURNER, W/SLEEVE
NI305309701 Frigidaire Oven Screw
NIACA
NIC316566901 Frigidaire Oven Sleeve
15304527972 Frigidaire Manifold Pipe
25304505693 Frigidaire Oven Surface Burner Valve
2A5304505690 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
2C5304508435 Frigidaire Oven Valve
3A5304508439 Frigidaire Oven Adapter Assembly
35304527828 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
75304516453 Frigidaire Igniter
8SPARK MODULE
95304516454 Frigidaire Igniter
10C5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11CB316440107 Frigidaire Igniter/Orifice Assembly
115304516449 Frigidaire Oven Holder
11A5304516450 Frigidaire Oven Holder
11B5304516451 Frigidaire Oven Holder
125304532159 Frigidaire Tube
12E5304508438 Frigidaire Tube
12A5304532033 Frigidaire Tube
12C5304531763 Frigidaire Tube
12FWCI 5304508437
12D5304521187 Frigidaire Oven Tube
145304519943 Frigidaire Regulator
355304508440 Frigidaire Bushing
47LP KIT, GAS CONVERSION
725304508436 Frigidaire Oven Screw
775304498799 Frigidaire Bracket
77B5304500254 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
