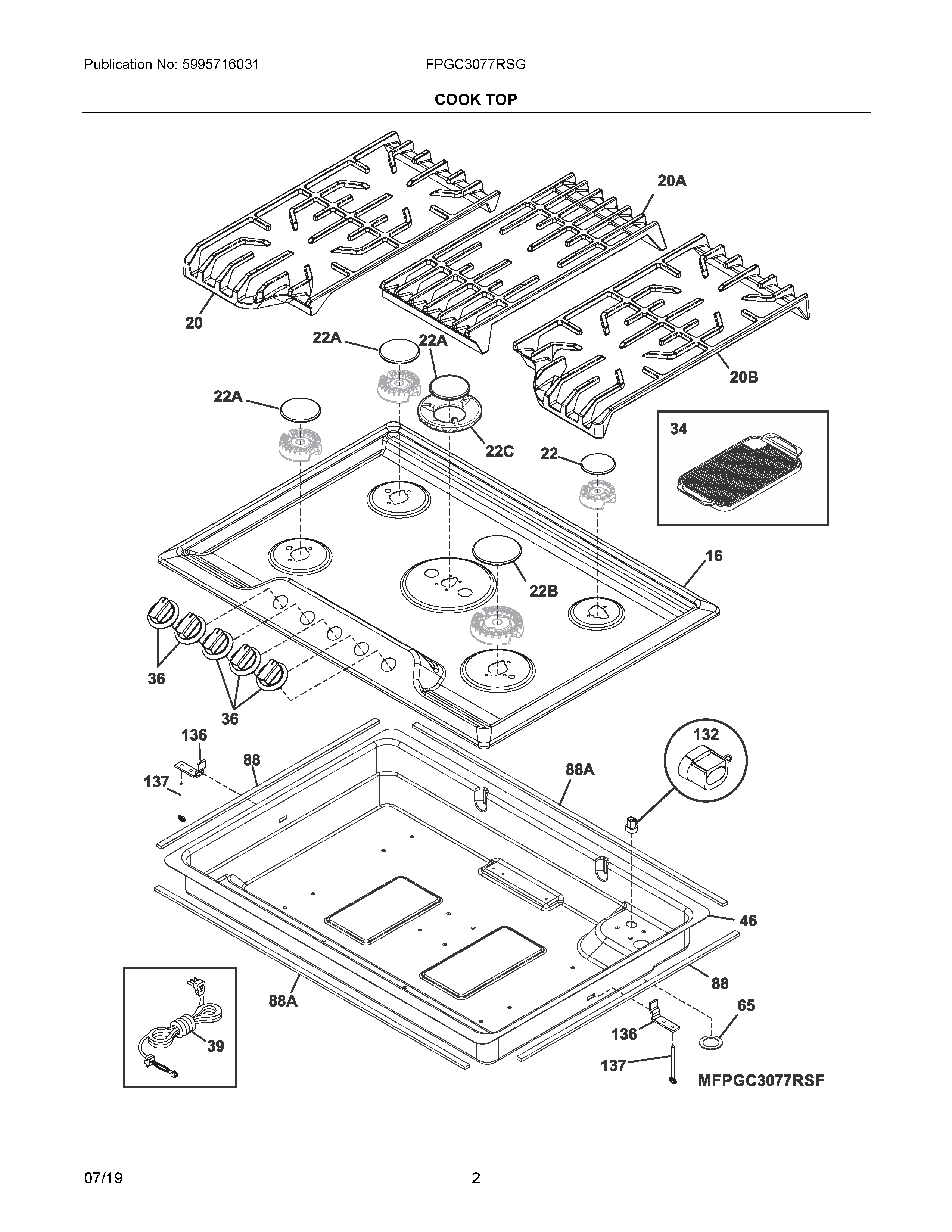

FPGC3077RSG 02 – COOK TOP

FPGC3077RSG 02 – COOK TOP

Written by

in

FPGC3077RSG 02 – COOK TOP

Products

PositionProduct
NIWCI 318163602
NIA305452800 Frigidaire Screw
NIA305338602 Frigidaire Screw
165304528574 Frigidaire Maintop
20B5304504908 Frigidaire Right Burner Grate
20A5304500257 Frigidaire Oven Grate
205304504907 Frigidaire Oven Grate
22C5304519953 Frigidaire Oven Cap
22CAP
22B5304508443 Frigidaire Oven Surface Burner Cap
22A5304508442 Frigidaire Oven Surface Burner Cap
345304495353 Frigidaire Oven Griddle
365304500250 Frigidaire Oven Knob
39305574902 Frigidaire Power Cord
465304499395 Frigidaire Burner Box
655304506478 Frigidaire Seal
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
88GASKET, MAINTOP, FOAM TAPE, SIDE
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
