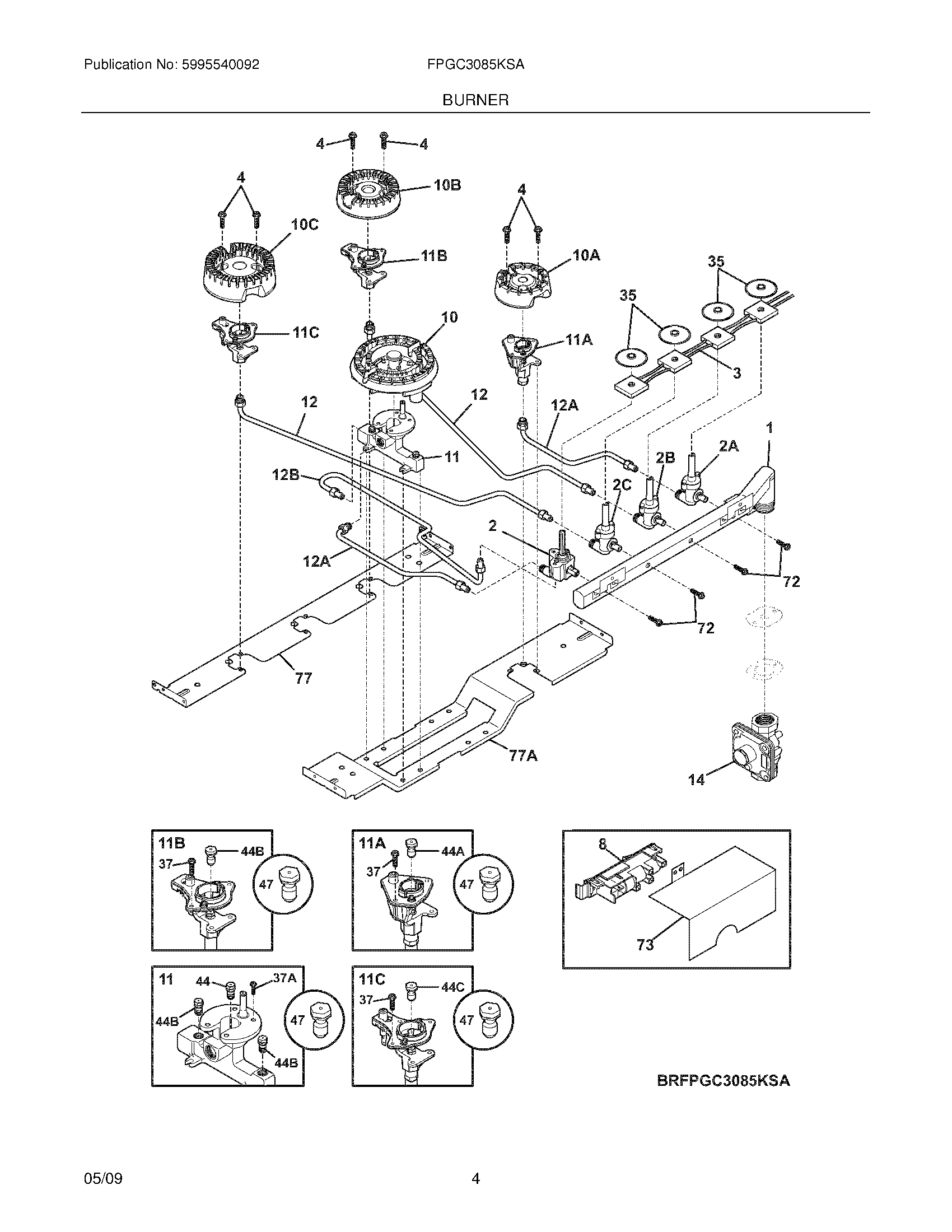

FPGC3085KSA 05 – BURNER

Products

Position	Product
NI	WCI 318024201
NI	WCI 318199779
NI	5304480396 Frigidaire Screw
NI	5303323140 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	5300803416 Frigidaire Dishwasher Screw
1	WCI 318177012
2A	318233900 Frigidaire Oven Valve
2B	WCI 318233910
2	WCI 318321803
2C	WCI 318233920
3	318232645 Frigidaire Wiring Harness
4	316240600 Frigidaire Igniter Mounting Screw
8	5304505695 Frigidaire Oven Module
10C	316438000 Frigidaire Sealed Burner 12K Assembly
10	316440300 Frigidaire Burner Assembly
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
10A	316438200 Frigidaire Range Sealed Burner, 5K
11C	316540702 Frigidaire Igniter/Orifice Assembly
11B	316540700 Frigidaire Igniter/Orifice Assembly
11A	316540800 Frigidaire Igniter/Orifice Assembly
11	316440100 Frigidaire Igniter and Orifice Assembly
12B	WCI 318560704
12A	WCI 318560702
12	TUBE, BURNER, LF & LR, (2)
14	WCI 318122712
35	WCI 318146301
37A	5303325980 Frigidaire Oven Screw
37	5303323130 Frigidaire Oven Screw
44B	316527500 Frigidaire Oven Burner Orifice
44	316527514 Frigidaire Oven Orifice Assembly
44C	316527502 Frigidaire Oven Orifice
44A	316527504 Frigidaire Oven Orifice
47	WCI 318565402
72	316215600 Frigidaire Oven Screw
73	WCI 318024202
77A	WCI 318565500
77	WCI 318564100
