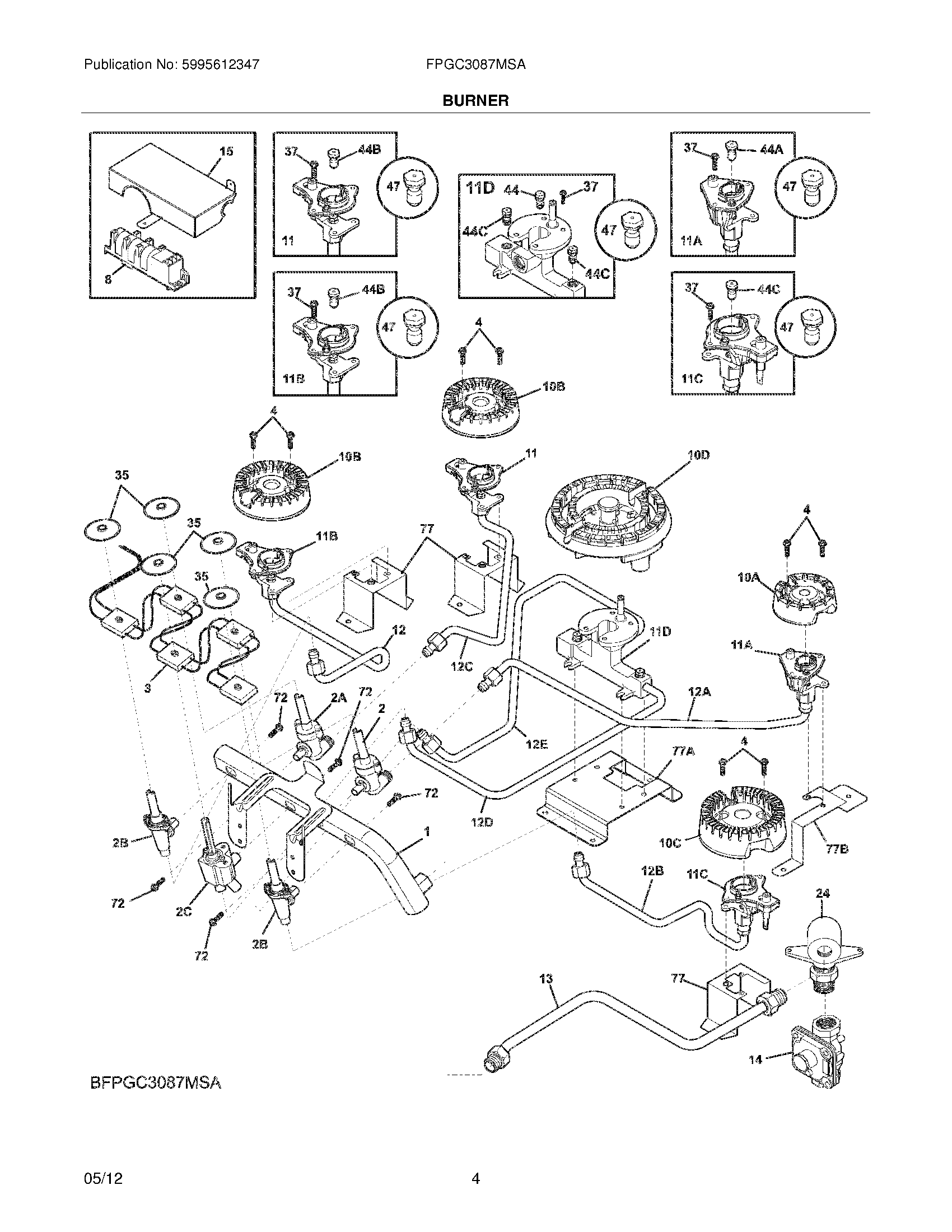

FPGC3087MSA 05 – BURNERS

FPGC3087MSA 05 – BURNERS

Written by

in

FPGC3087MSA 05 – BURNERS

Products

PositionProduct
NI5303323130 Frigidaire Oven Screw
NIWCI 318199789
NI316566901 Frigidaire Oven Sleeve
NI5303323140 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318570101
NI5303307980 Frigidaire Oven Screw
NI5300803416 Frigidaire Dishwasher Screw
1WCI 318569803
2C316574900 Frigidaire Oven Valve
2318387400 Frigidaire Oven Valve
2BWCI 316520704
2A318387401 Frigidaire Oven Valve
3WCI 318232660
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10C316438000 Frigidaire Sealed Burner 12K Assembly
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10D316440300 Frigidaire Burner Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11D316440102 Frigidaire Igniter Assembly/Orifice
11WCI 316540704
11C316540702 Frigidaire Igniter/Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
12EWCI 318560734
12DWCI 318560735
12CWCI 318560726
12B318560723 Frigidaire Tube
12AWCI 318560724
12WCI 318560725
13WCI 318054517
14WCI 318122717
15WCI 318024211
24318054010 Frigidaire Oven Elbow
35WCI 318146301
44B316527500 Frigidaire Oven Burner Orifice
44316527514 Frigidaire Oven Orifice Assembly
44C316527502 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
47WCI 318565428
72316215600 Frigidaire Oven Screw
77BWCI 318920304
77WCI 318920309
77AWCI 318384106
