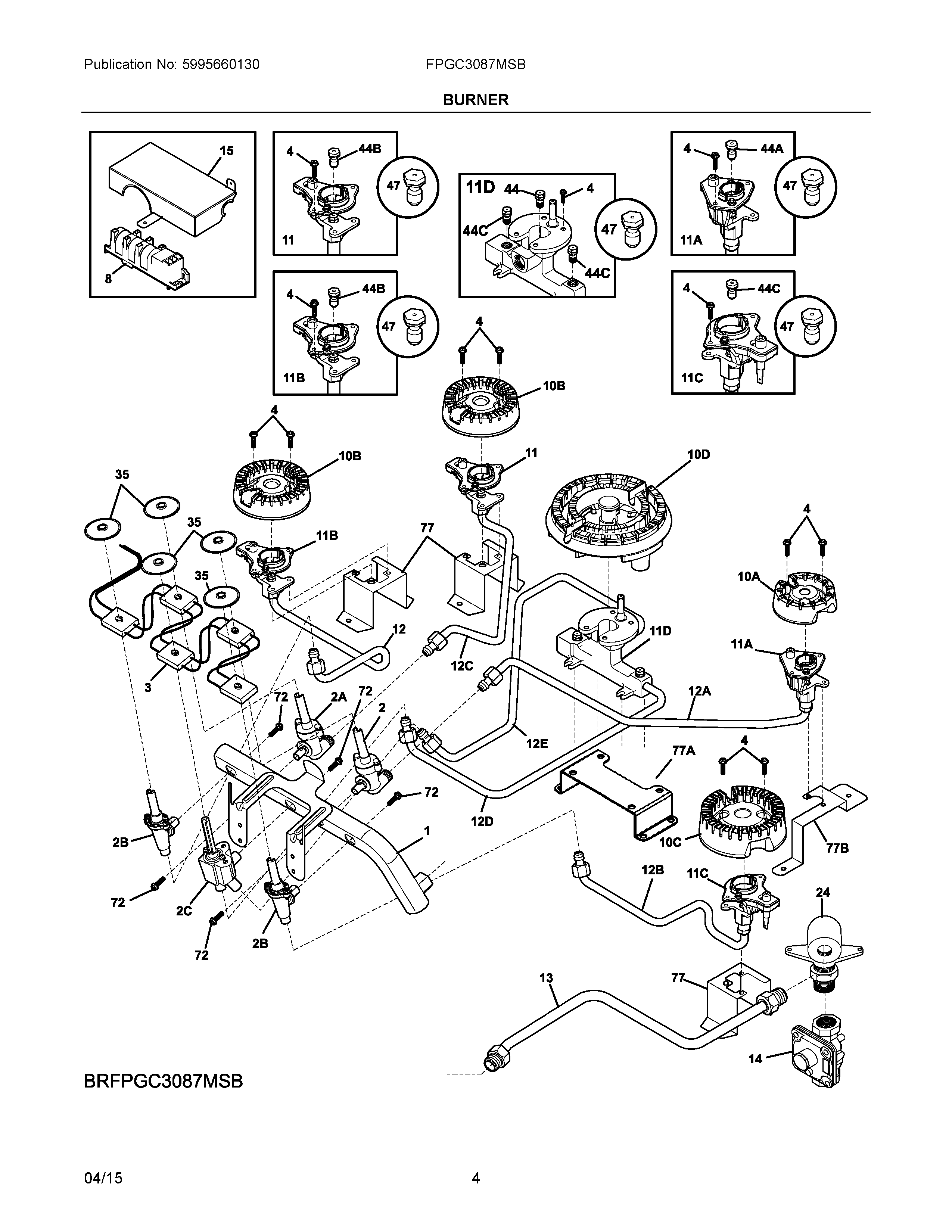

FPGC3087MSB 03 – BURNER

Products

Position	Product
NI	305338601 Frigidaire Screw
NI	305338602 Frigidaire Screw
NI	305452800 Frigidaire Screw
NI	WCI 318199789
NI	305309701 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	316566901 Frigidaire Oven Sleeve
1	WCI 318569804
2	318387400 Frigidaire Oven Valve
2C	316574900 Frigidaire Oven Valve
2B	WCI 316520704
2A	318387401 Frigidaire Oven Valve
3	WCI 318232660
4	316240600 Frigidaire Igniter Mounting Screw
8	SPARK MODULE
10A	316438200 Frigidaire Range Sealed Burner, 5K
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
10D	316440300 Frigidaire Burner Assembly
10C	316438000 Frigidaire Sealed Burner 12K Assembly
11C	316540702 Frigidaire Igniter/Orifice Assembly
11A	316540800 Frigidaire Igniter/Orifice Assembly
11B	316540700 Frigidaire Igniter/Orifice Assembly
11	WCI 316540704
11D	316440102 Frigidaire Igniter Assembly/Orifice
12B	318560723 Frigidaire Tube
12D	WCI 318560735
12A	WCI 318560724
12C	WCI 318560726
12	WCI 318560725
12E	WCI 318560734
13	WCI 318054517
14	WCI 318122717
15	WCI 318024209
24	318054010 Frigidaire Oven Elbow
35	WCI 318146301
44A	316527504 Frigidaire Oven Orifice
44B	316527500 Frigidaire Oven Burner Orifice
44C	316527502 Frigidaire Oven Orifice
44	316527514 Frigidaire Oven Orifice Assembly
47	WCI 318565429
72	316215600 Frigidaire Oven Screw
77B	WCI 318920304
77	WCI 318920309
77A	WCI 305583001
