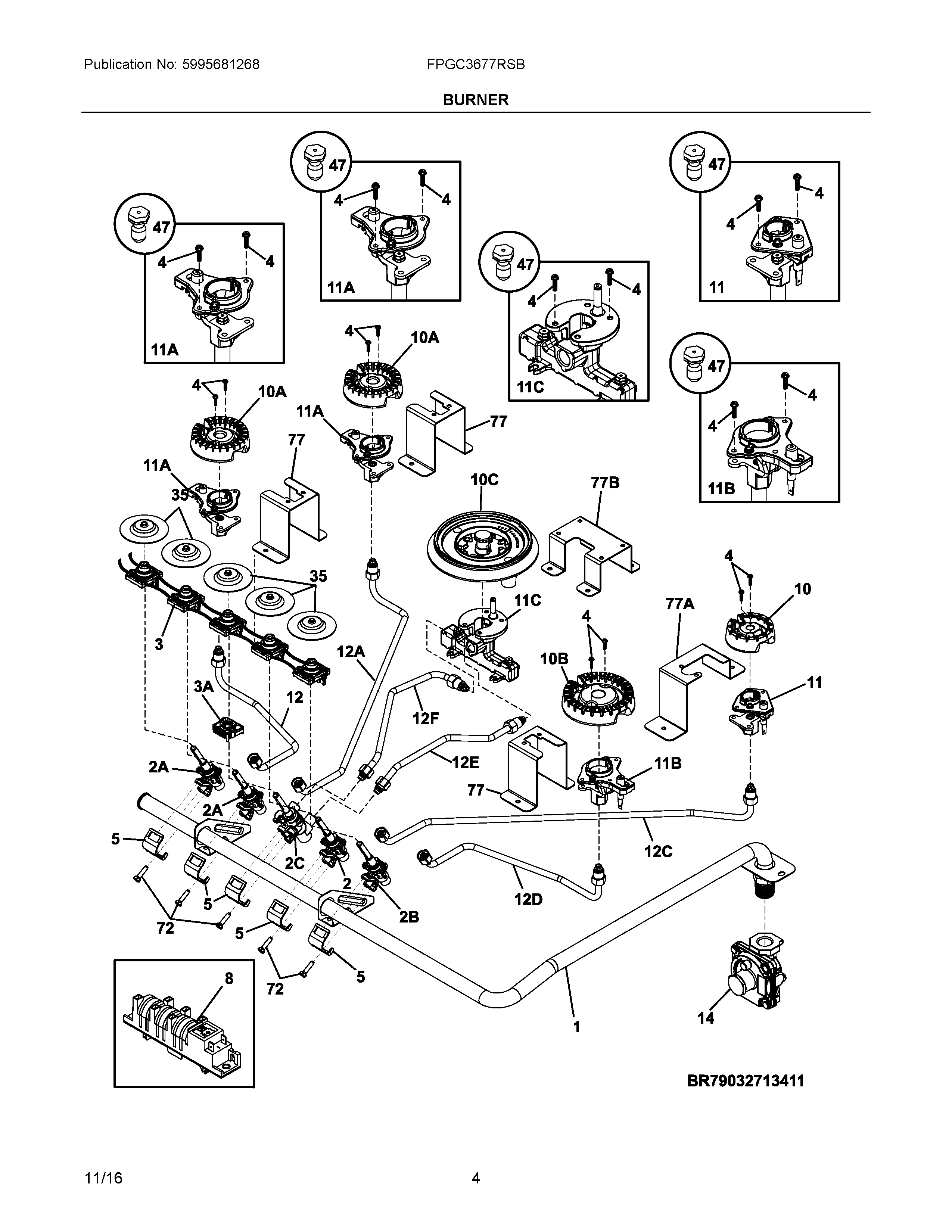

FPGC3677RSB 03 – BURNER

FPGC3677RSB 03 – BURNER

Written by

in

FPGC3677RSB 03 – BURNER

Products

PositionProduct
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
NICA316566901 Frigidaire Oven Sleeve
NIAWCI 318199780
15304505689 Frigidaire Manifold
2B5304505691 Frigidaire Oven Valve
25304505693 Frigidaire Oven Surface Burner Valve
2A5304505690 Frigidaire Oven Valve
2C5304508435 Frigidaire Oven Valve
35304527828 Frigidaire Switch Assembly
3A5304508439 Frigidaire Oven Adapter Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
8SPARK MODULE
10C5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438600 Frigidaire Range Sealed Burner, 14K
11B5304500255 Frigidaire Igniter/Orifice Assembly
11A5304498787 Frigidaire Igniter Assembly/Orifice
11C316440107 Frigidaire Igniter/Orifice Assembly
115304498786 Frigidaire Igniter/Orifice Assembly
12E5304508438 Frigidaire Tube
12FWCI 5304508437
12A5304520942 Frigidaire Tube
125304520943 Frigidaire Tube
12C5304520940 Frigidaire Tube
12D5304532994 Frigidaire Tube
145304519943 Frigidaire Regulator
355304508440 Frigidaire Bushing
725304508436 Frigidaire Oven Screw
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
77B5304500254 Frigidaire Bracket
