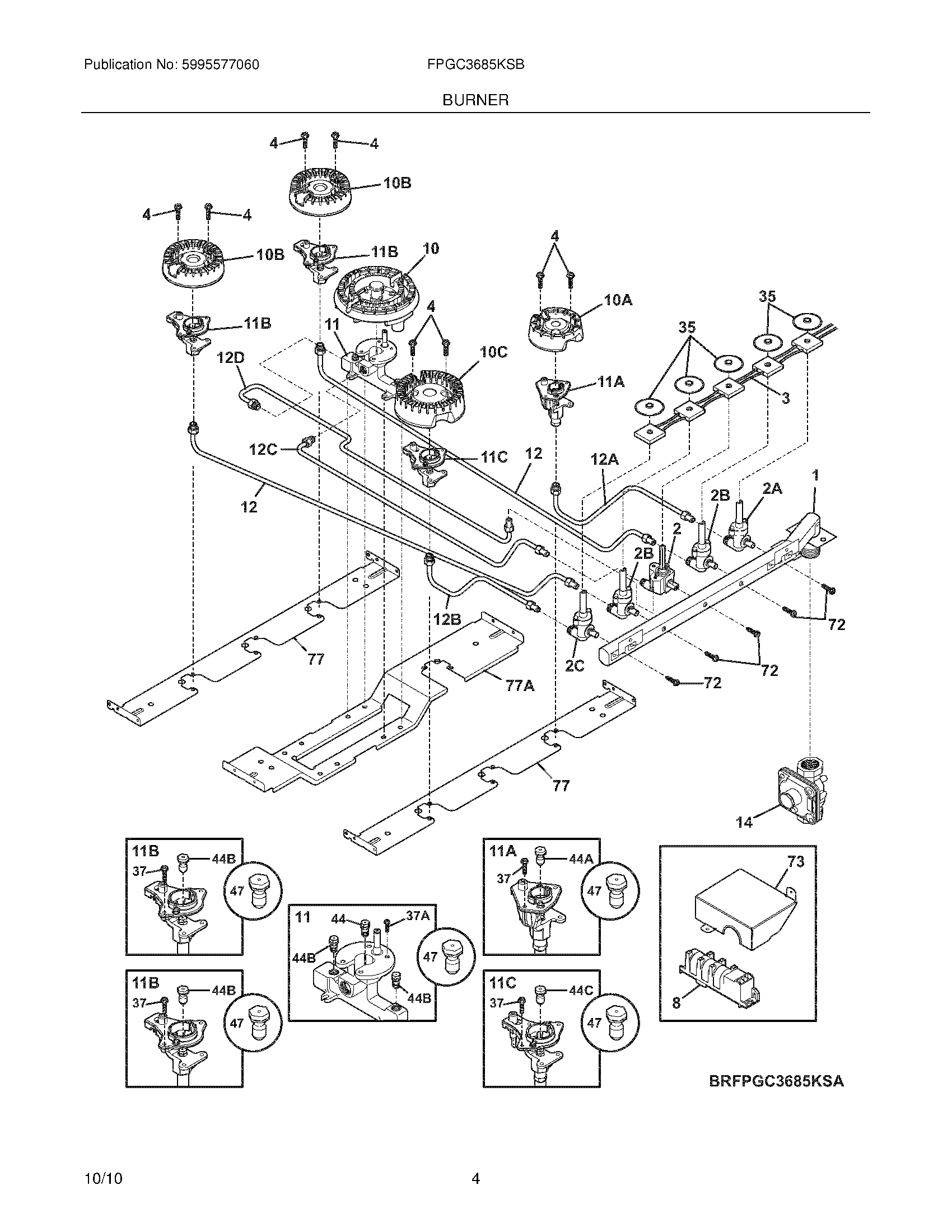

FPGC3685KSB 05 – BURNER

Products

Position	Product
NI	WCI 318199780
NI	5300803416 Frigidaire Dishwasher Screw
NI	5303323140 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	5303307980 Frigidaire Oven Screw
1	WCI 318177016
2A	318233900 Frigidaire Oven Valve
2B	WCI 318233910
2C	WCI 318233920
2	WCI 318321803
3	318232621 Frigidaire Wiring Harness
4	316240600 Frigidaire Igniter Mounting Screw
8	SPARK MODULE
10	316440300 Frigidaire Burner Assembly
10A	316438200 Frigidaire Range Sealed Burner, 5K
10C	316438000 Frigidaire Sealed Burner 12K Assembly
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
11	316440100 Frigidaire Igniter and Orifice Assembly
11C	316540702 Frigidaire Igniter/Orifice Assembly
11B	316540700 Frigidaire Igniter/Orifice Assembly
11A	316540800 Frigidaire Igniter/Orifice Assembly
12	WCI 318560710
12C	WCI 318560714
12A	WCI 318560712
12B	WCI 318560713
12D	WCI 318560715
14	WCI 318122717
35	WCI 318146301
37A	5303325980 Frigidaire Oven Screw
37	5303323130 Frigidaire Oven Screw
44C	316527502 Frigidaire Oven Orifice
44	316527514 Frigidaire Oven Orifice Assembly
44B	316527500 Frigidaire Oven Burner Orifice
44A	316527504 Frigidaire Oven Orifice
47	WCI 318565403
72	316215600 Frigidaire Oven Screw
73	WCI 318024209
77	WCI 318564100
77A	WCI 318565500
