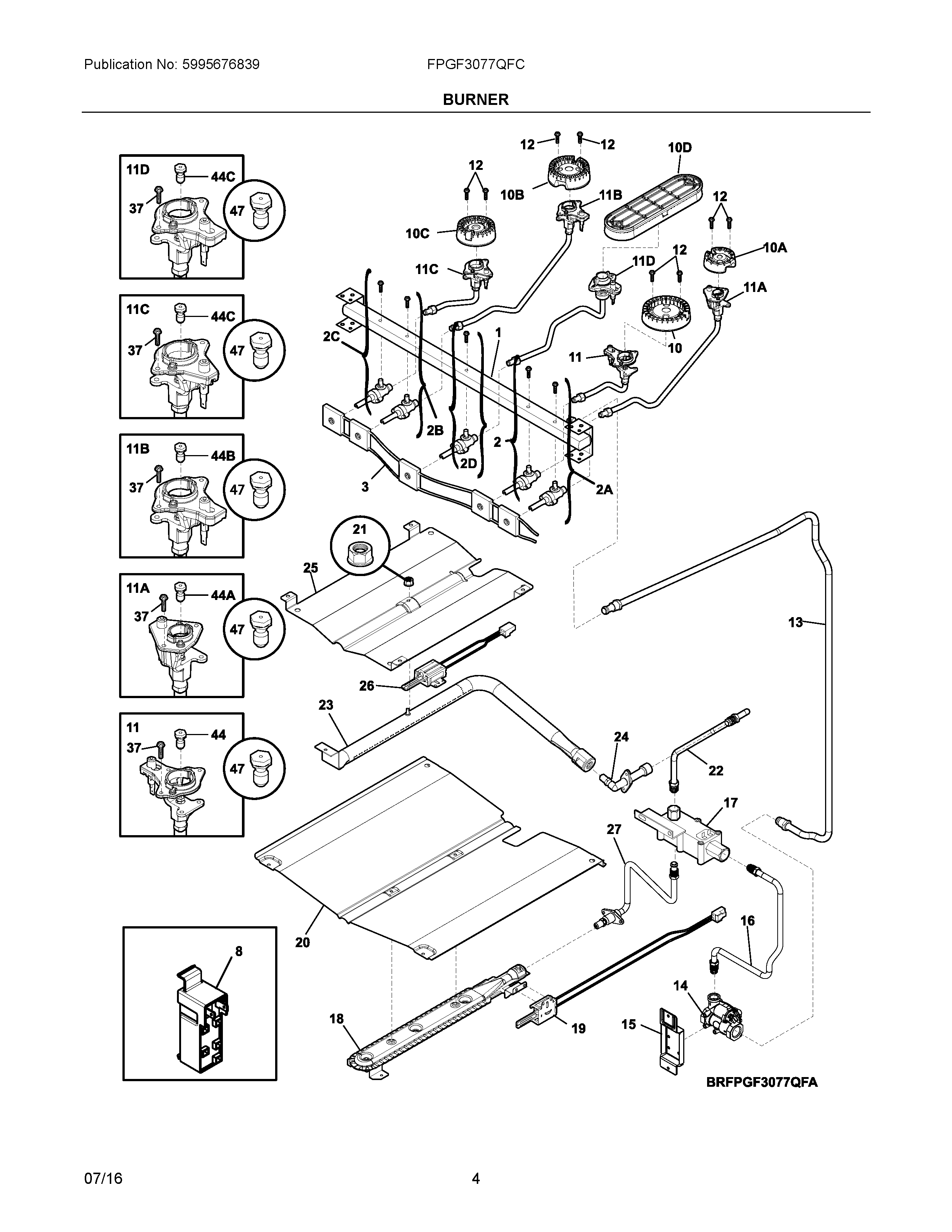

FPGF3077QFC 03 – BURNER

FPGF3077QFC 03 – BURNER

Written by

in

FPGF3077QFC 03 – BURNER

Products

Position	Product
NIA	316021104 Frigidaire Oven Screw Assembly
NIA	316602300 Frigidaire Bracket
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NIA	5304494425 Frigidaire Oven Harness
NIA	316498100 Frigidaire Shield
NIA	5303271648 Frigidaire Oven Screw
NIA	316401500 Frigidaire Oven Cover
NI	316021105 Frigidaire Oven Screw
NI	316215600 Frigidaire Oven Screw
1	5304513540 Frigidaire Oven Manifold
2	316560900 Frigidaire Oven Valve
2B	5303935306 Frigidaire Oven Valve
2A	5303935308 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
2D	5303935309 Frigidaire Top Burner Valve
3	5304494418 Frigidaire Harness
8	5304508269 Frigidaire Oven Range Spark Module Kit
10B	316438000 Frigidaire Sealed Burner 12K Assembly
10A	316438200 Frigidaire Range Sealed Burner, 5K
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10D	316559300 Frigidaire Oven Burner
10	316438400 Frigidaire Range Sealed Burner, 16/17K
11A	316536610 Frigidaire Igniter Assembly/Orifice
11	316536625 Frigidaire Igniter/Orifice Assembly
11B	316536612 Frigidaire Igniter Assembly/Orifice
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
11D	316536623 Frigidaire Igniter/Orifice Assembly
12	316540900 Frigidaire Oven Screw
13	316607701 Frigidaire Oven Tube
14	316091711 Frigidaire Regulator Assembly
15	316603300 Frigidaire Bracket
16	5304507349 Frigidaire Tube
17	5303210798 Frigidaire Range Wall Oven Gas Safety Valve
18	5304494426 Frigidaire Oven Burner
19	BAKE IGNITOR
20	BAFFLE, OVEN BURNER
21	5303013272 Frigidaire Oven Nut
22	5304508596 Frigidaire Oven Tube
23	316404302 Frigidaire Oven Burner
24	5304516894 Frigidaire Oven Elbow
25	5304497666 Frigidaire Oven Baffle
26	5304506545 Frigidaire Gas Oven Range Igniter
27	316602400 Frigidaire Oven Tube
37	316240600 Frigidaire Igniter Mounting Screw
44B	316527502 Frigidaire Oven Orifice
44A	316527504 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
44	316543200 Frigidaire Igniter/Orifice Assembly
47	GRLP4 Frigidaire Oven LP Conversion Kit
