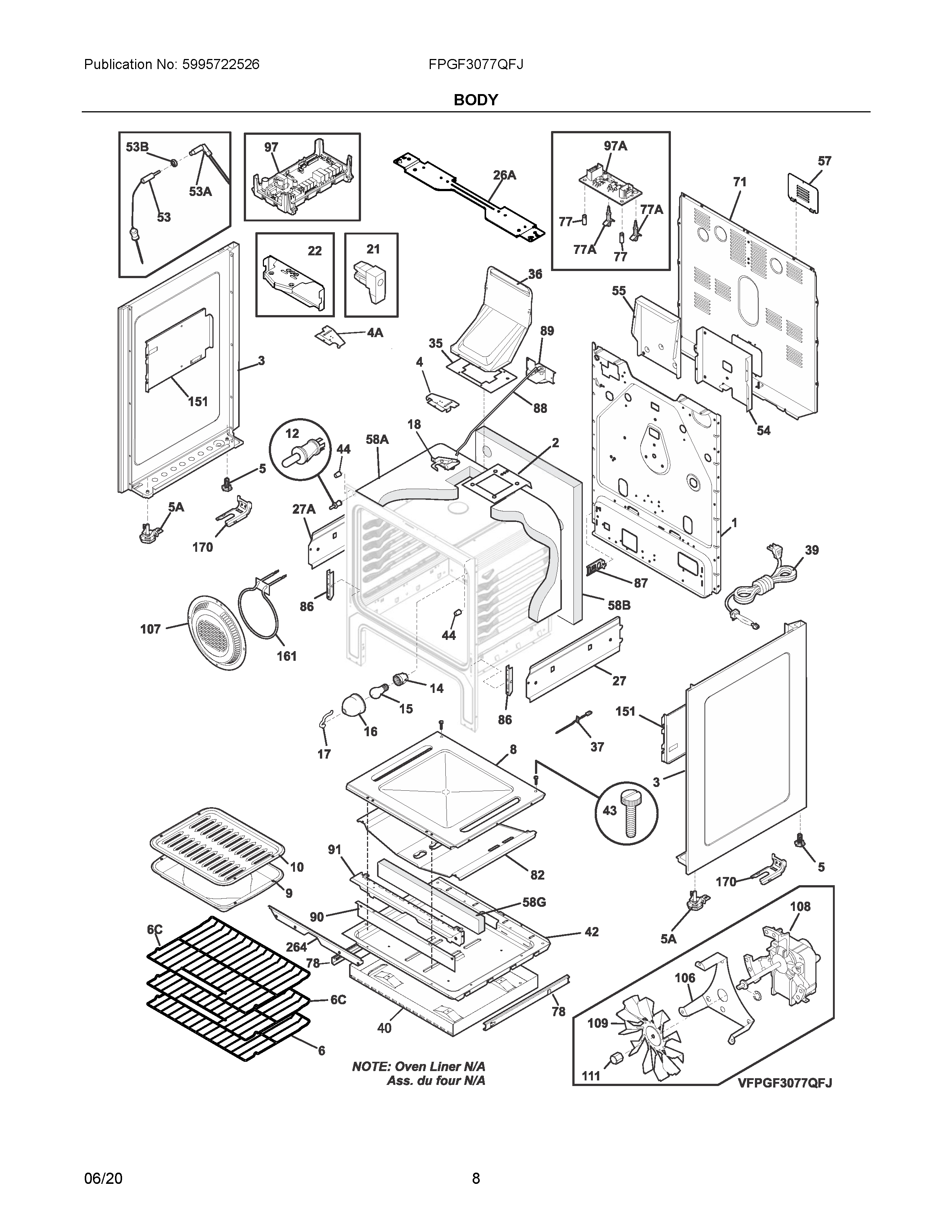

FPGF3077QFJ 04 – BODY

FPGF3077QFJ 04 – BODY

Written by

in

FPGF3077QFJ 04 – BODY

Products

PositionProduct
NIB316116000 Frigidaire Screw
NI241853202 Frigidaire Refrigerator Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIBA316534100 Frigidaire Oven Washer
NIA316432800 Frigidaire Clip
NI316418901 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI316021132 Frigidaire Screw
NI316602200 Frigidaire Plate
NI316602300 Frigidaire Bracket
NI5303289910 Frigidaire Oven Screw
NI808858501 Frigidaire Harness
NI316021105 Frigidaire Oven Screw
NI5303285179 Frigidaire Oven Door Screw
NIA316064600 Frigidaire Oven Support
NI316279600 Frigidaire Screw
NI5304510506 Frigidaire Harness
1316602501 Frigidaire Back
2316437100 Frigidaire Brace Assembly DSP
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4A316605401 Frigidaire Bracket-MAINTOP
4316605400 Frigidaire MAINTOP Bracket
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316496205 Frigidaire Oven Rack
6C316496201 Frigidaire Oven Rack
8316603201 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
12316445500 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26A316498200 Frigidaire Oven Bracket
27316604100 Frigidaire SHIELD
27A316604101 Frigidaire Shield
35316542102 Frigidaire Flue Gasket
36FLUE
37316490000 Frigidaire Oven Range Temperature Sensor
395304534000 Frigidaire Cord
40316602600 Frigidaire Shield
42316601600 Frigidaire Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
53B316247700 Frigidaire Oven Nut
535304504202 Frigidaire Red Meat Temperature Probe
53A316536904 Frigidaire Receptacle
545304512756 Frigidaire Shield
555304510473 Frigidaire Shield
57316283600 Frigidaire Oven Cover
58G08067973 Frigidaire 0 Insulation
58BWCI 316403600
58A316403700 Frigidaire Insulation
71316283203 Frigidaire Shield
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
78316456700 Frigidaire Oven Glide Assembly
82316601401 Frigidaire Shield
86316441300 Frigidaire Receptacle
87BRACKET, HARNESS
88316232702 Frigidaire Rod
89MOTOR
90WCI 316601900
91316601800 Frigidaire Shield
97316472803 Frigidaire Range Circuit Board Assembly
97A5304509920 Frigidaire Circuit Board
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
108316256900 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1515304518926 Frigidaire Shield
161316211603 Frigidaire Oven Element
264316404700 Frigidaire Bracket
