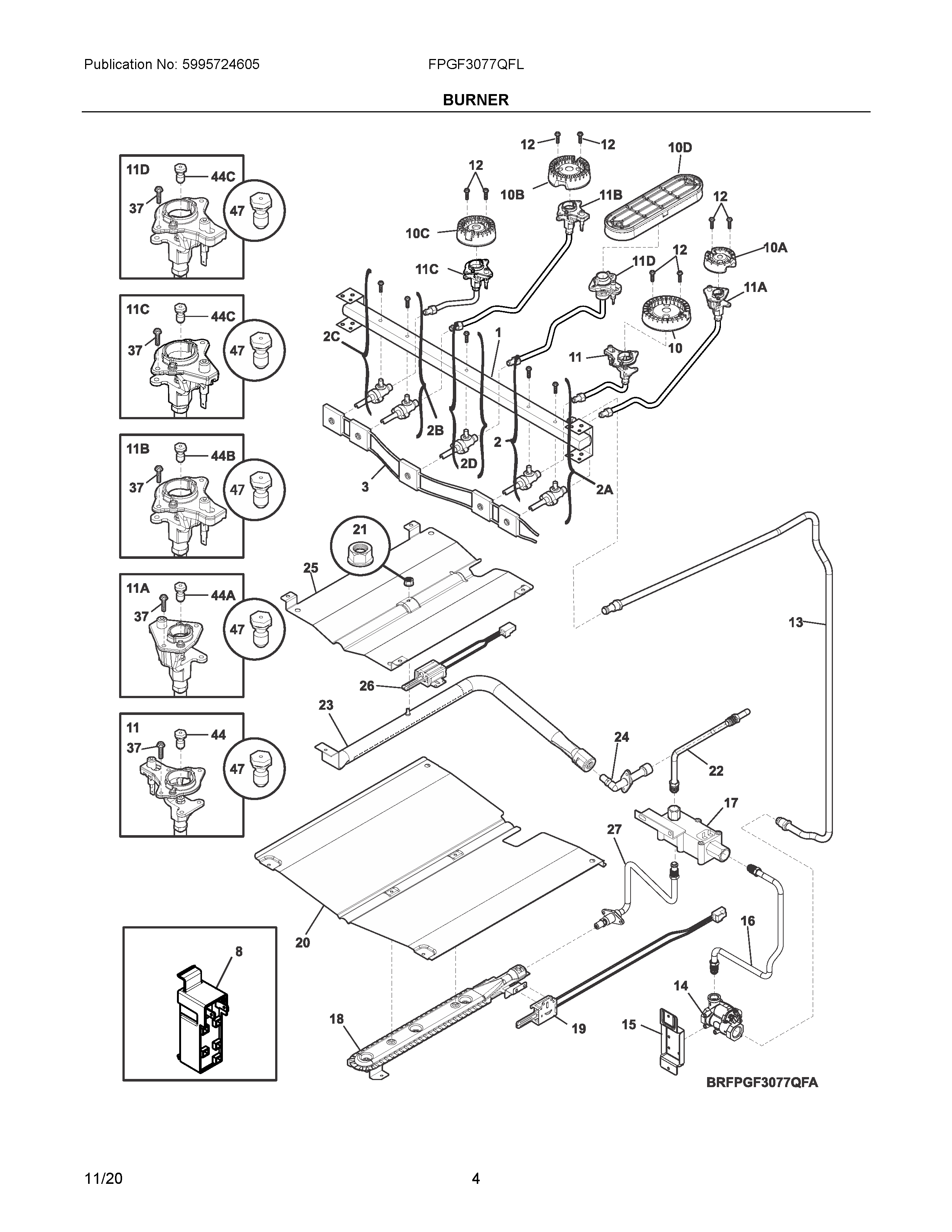

FPGF3077QFL 03 – BURNER

FPGF3077QFL 03 – BURNER

Written by

in

FPGF3077QFL 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NIA316602300 Frigidaire Bracket
NI5304505563 Frigidaire Oven Wire
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NIA5304494425 Frigidaire Oven Harness
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
NIA316401500 Frigidaire Oven Cover
NIA5303271648 Frigidaire Oven Screw
NIA316498100 Frigidaire Shield
15304513540 Frigidaire Oven Manifold
2C5304506548 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2D5304506551 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
2A5304506547 Frigidaire Oven Valve
35304528828 Frigidaire Harness
8SPARK MODULE
10B316438000 Frigidaire Sealed Burner 12K Assembly
10D316559300 Frigidaire Oven Burner
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11316536625 Frigidaire Igniter/Orifice Assembly
11B316536612 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
135304512755 Frigidaire Tube
14316091711 Frigidaire Regulator Assembly
15316603300 Frigidaire Bracket
165304507349 Frigidaire Tube
175303210798 Frigidaire Range Wall Oven Gas Safety Valve
185304494426 Frigidaire Oven Burner
19BAKE IGNITOR
20BAFFLE, OVEN BURNER
215303013272 Frigidaire Oven Nut
225304508596 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
27316602400 Frigidaire Oven Tube
37316240600 Frigidaire Igniter Mounting Screw
44316543200 Frigidaire Igniter/Orifice Assembly
44C316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44B316527502 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
