FPGF3081KFB 05 – BURNER

FPGF3081KFB 05 – BURNER

Written by

in

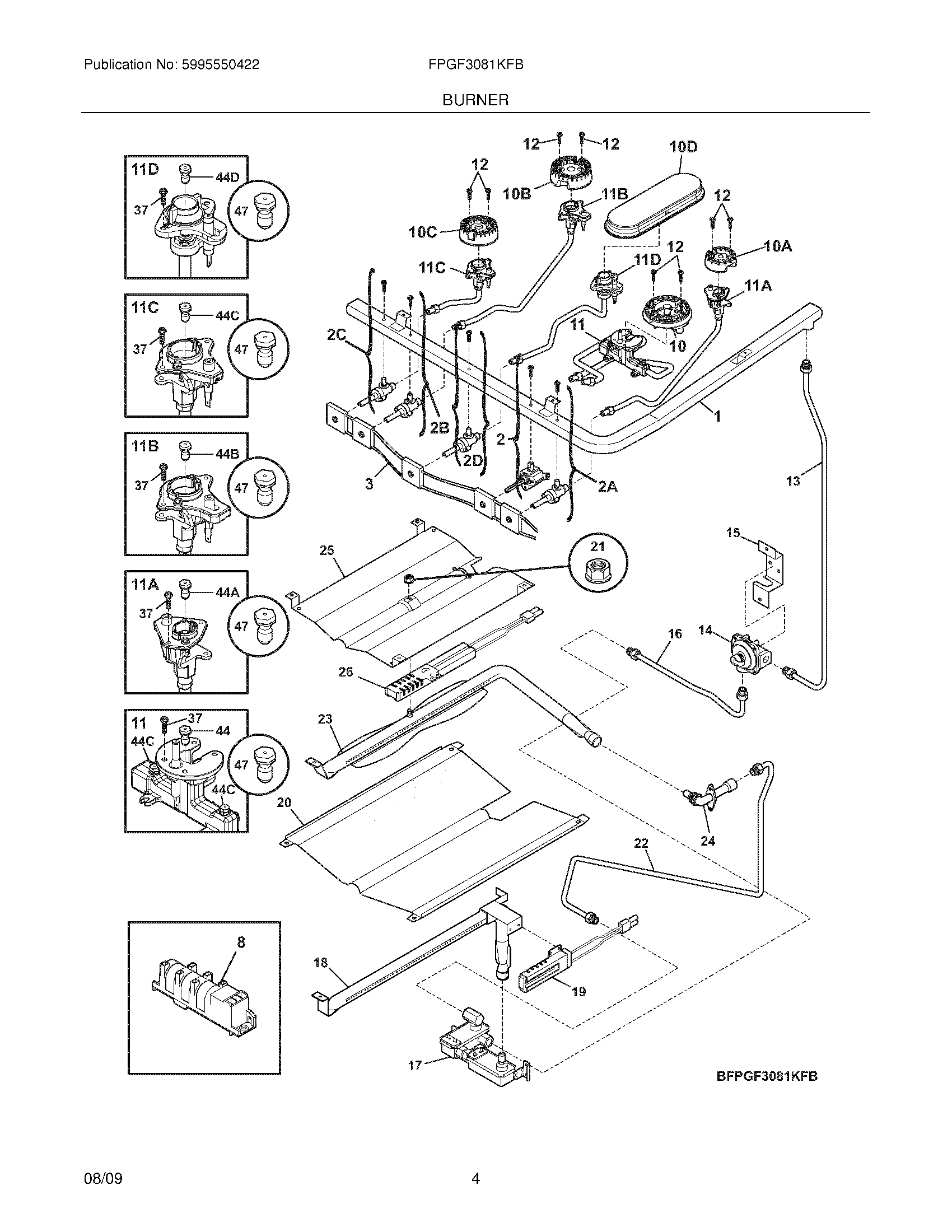

FPGF3081KFB 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	316021132 Frigidaire Screw
NI	WCI 316064103
NI	WCI 316526902
NI	316001017 Frigidaire Screw
NI	WCI 316443200
NI	316089500 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	316215600 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316401500 Frigidaire Oven Cover
1	WCI 316551202
2D	5303935259 Frigidaire Oven Valve
2A	WCI 5303935235
2B	WCI 5303935236
2	WCI 316412513
2C	WCI 5303935234
3	WCI 316219031
8	SPARK MODULE
10A	316438200 Frigidaire Range Sealed Burner, 5K
10D	WCI 316532001
10	316440300 Frigidaire Burner Assembly
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10B	316438600 Frigidaire Range Sealed Burner, 14K
11D	316532601 Frigidaire Igniter/Orifice Assembly
11C	316536602 Frigidaire Oven Igniter/Orifice Assembly
11B	316536618 Frigidaire Igniter/Orifice Assembly
11	316572100 Frigidaire Igniter/Orifice Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
12	316540900 Frigidaire Oven Screw
13	WCI 316545700
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	5304507348 Frigidaire Oven Tube
17	316404901 Frigidaire Oven Valve
18	316404400 Frigidaire Oven Burner
19	5304506545 Frigidaire Gas Oven Range Igniter
20	5304519024 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	5304507768 Frigidaire Oven Tube
23	316404304 Frigidaire Oven Burner
24	5304516894 Frigidaire Oven Elbow
25	WCI 316401301
26	BAKE IGNITOR
37	316240600 Frigidaire Igniter Mounting Screw
44	316527514 Frigidaire Oven Orifice Assembly
44B	316527513 Frigidaire Oven Orifice
44D	316237902 Frigidaire Orifice Top Burner
44A	316527504 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
