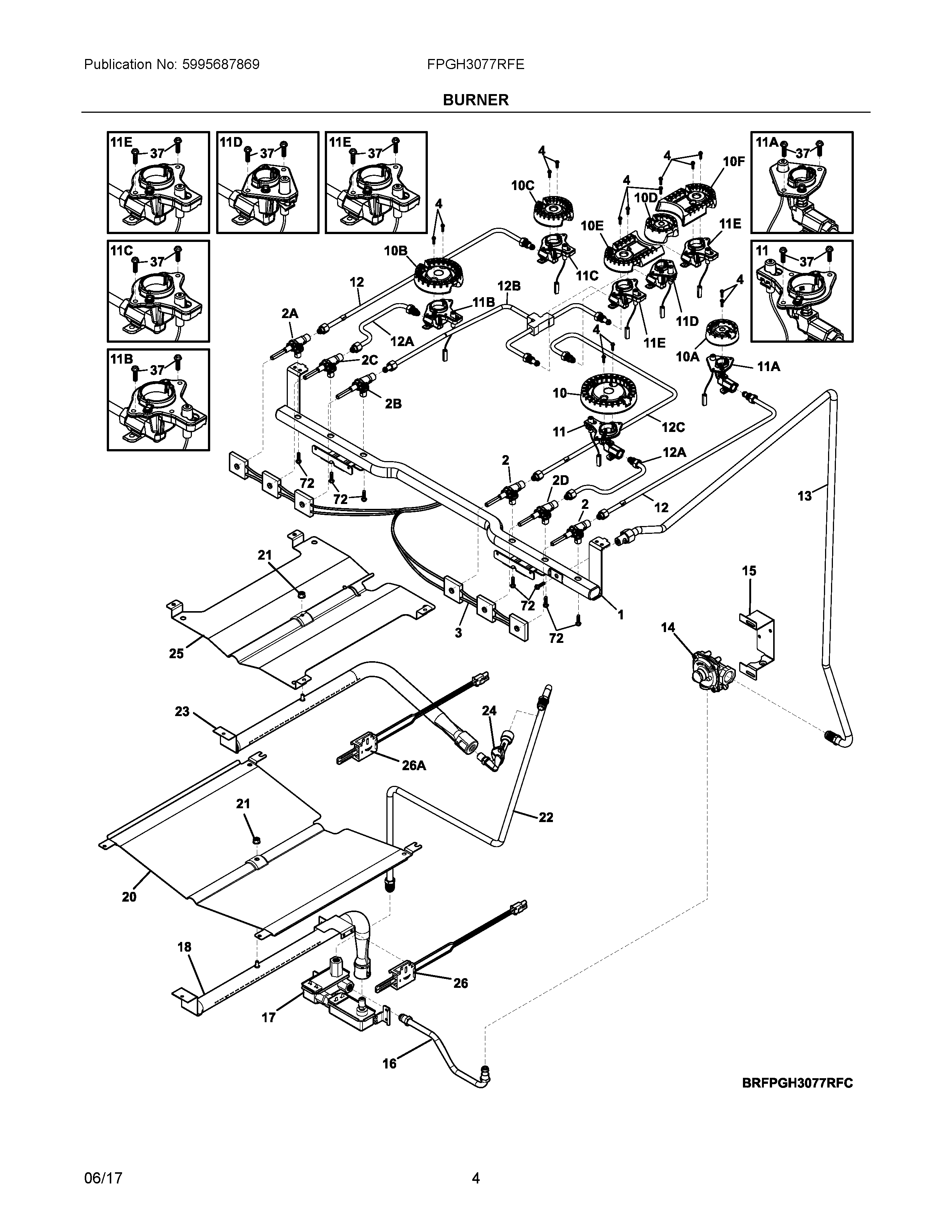

FPGH3077RFE 03 – BURNER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NIA5304507056 Frigidaire Oven Clip
NI808695309 Frigidaire LP Conversion Kit
NI808041201 Frigidaire Oven Harness
1809145501 Frigidaire Oven Manifold
25304506548 Frigidaire Oven Valve
2A5304506550 Frigidaire Oven Range Gas Valve (White)
2B5304507283 Frigidaire Oven Valve
2DVALVE, TOP BURNER, PURPLE STEM, 3000BTU
2C5304506551 Frigidaire Oven Valve
3WCI 5304509697
4316240600 Frigidaire Igniter Mounting Screw
10D5304500134 Frigidaire Oven Burner
10E5304500135 Frigidaire Oven Burner
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
10F5304500136 Frigidaire Oven Burner
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11A5304500184 Frigidaire Igniter/Orifice Assembly
11BIGNITOR/ORIFICE ASSY., TOP BURNER, 12K, W/HOLDER-WIRES
11C5304500186 Frigidaire Igniter/Orifice Assembly
11D5304500185 Frigidaire Igniter and Orifice Assembly
11E5304500187 Frigidaire Igniter/Orifice Assembly
115304500189 Frigidaire Igniter/Orifice Assembly
12CTUBE, SIMMER BURNER, CENTER
12B808868801 Frigidaire Oven Tube
125304500110 Frigidaire Oven Tube Assembly
12A5304500111 Frigidaire Oven Tube Assembly
135304500113 Frigidaire Oven Tube
14316091711 Frigidaire Regulator Assembly
15318262811 Frigidaire Oven Bracket
165304500115 Frigidaire Oven Tube
17SAFETY VALVE
185304502520 Frigidaire Oven Burner
20139005100 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304500114 Frigidaire Oven Tube
235304499689 Frigidaire Burner
245304500107 Frigidaire Mixer Elbow
25WCI 316401301
26A139013701 Frigidaire Igniter
26139013700 Frigidaire Igniter
37316540900 Frigidaire Oven Screw
72316215600 Frigidaire Oven Screw
