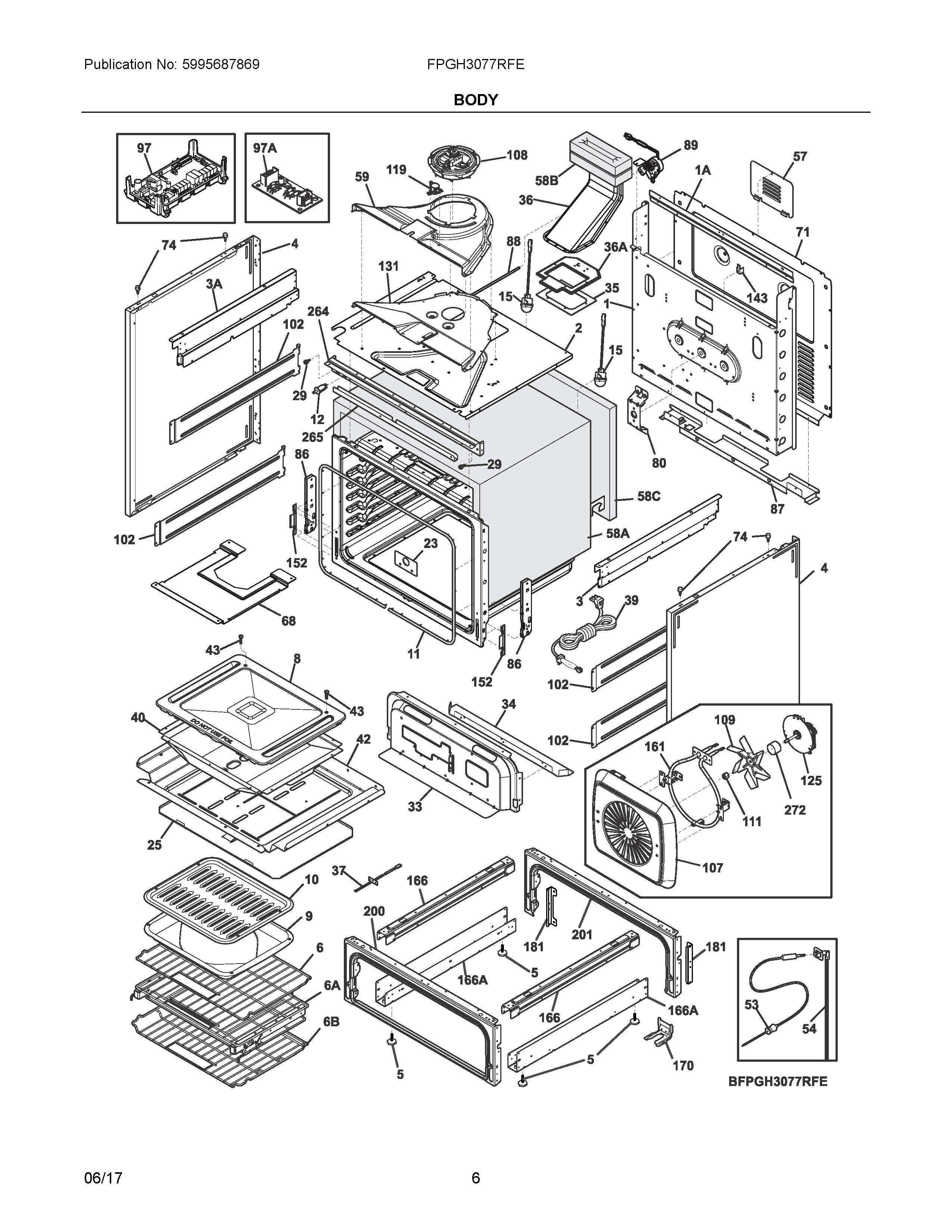

FPGH3077RFE 04 – BODY

FPGH3077RFE 04 – BODY

Written by

in

FPGH3077RFE 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA316418901 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIAWCI 318579001
NI5304510183 Frigidaire Oven Harness
NI808041201 Frigidaire Oven Harness
NIC5304436864 Frigidaire WASHER
NIA318167300 Frigidaire Clip
NIA316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NIA316116000 Frigidaire Screw
NI5303289910 Frigidaire Oven Screw
NIB5303311164 Frigidaire Oven Spring
NIAA316247900 Frigidaire Oven Spacer
NI807597603 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIWCI 5304510184
1PANEL, MAIN BACK
1ABRACKET, WIRE FILLER, REAR
2SHIELD, INSULATION, TOP
3809128202 Frigidaire Panel
3AWCI 809128201
4807226106 Frigidaire Range Black Side Body Panel
5LEG, LEVELING
65304514983 Frigidaire Oven Rack
6ARACK ASSEMBLY, GLIDING, W/HANDLE
6B139012400 Frigidaire Oven Rack
8139005003 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11139036701 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
23139004500 Frigidaire Cover
25318291900 Frigidaire Bracket Assembly
29316517600 Frigidaire Oven Spacer
33PANEL, VALVE MTG.
34318289402 Frigidaire Panel
35318291300 Frigidaire Oven Seal
36FLUEBOX, ASSEMBLY
36A139008301 Frigidaire Support
37SENSOR
395304534000 Frigidaire Cord
40139004700 Frigidaire Oven Box
42139004800 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58BINSULATION, FLUE
58AWCI 5304501901
58CWCI 5304500109
59139078002 Frigidaire Oven Duct
685304504565 Frigidaire Shield
71809123201 Frigidaire Oven Shield
74WCI 318141910
80139021101 Frigidaire Bracket Assembly
86139026900 Frigidaire Receptacle
87BRACKET, CABLE MTG.
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
97316472803 Frigidaire Range Circuit Board Assembly
97A5304509920 Frigidaire Circuit Board
102139004100 Frigidaire PANEL
107139013903 Frigidaire Oven Vent Hood Cover
108807123002 Frigidaire Oven Motor Assembly Range/Wall
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008601 Frigidaire Oven Motor
131139078102 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
152WCI 318338520
161139013800 Frigidaire Oven Element
166A5304511884 Frigidaire Oven Bracket
166318298410 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
1815304500125 Frigidaire Bracket
200808734602 Frigidaire Oven Frame
201808734603 Frigidaire Frame
264WCI 809145304
265WCI 5304500138
272139021700 Frigidaire Oven Tube
