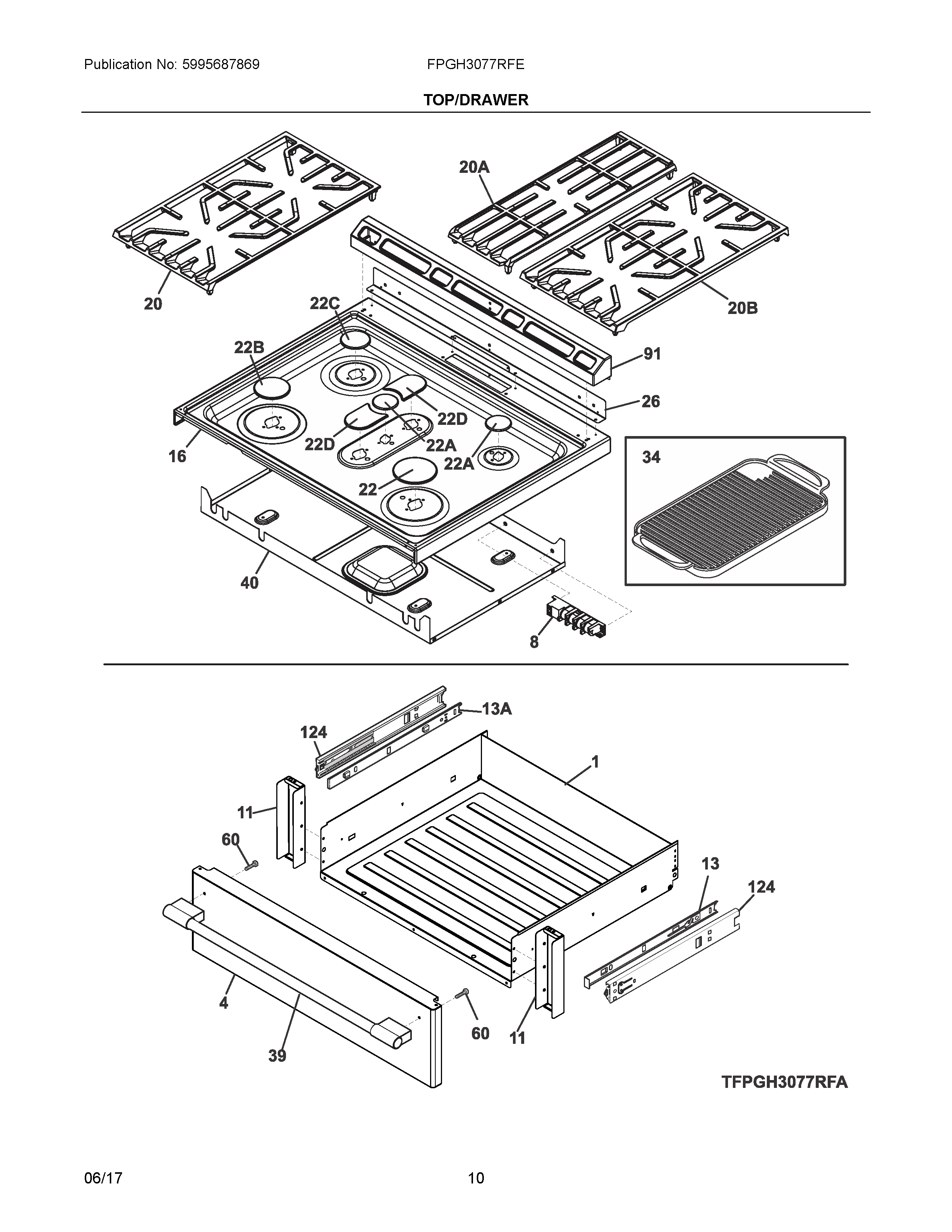

FPGH3077RFE 05 – TOP/DRAWER

FPGH3077RFE 05 – TOP/DRAWER

Written by

in

FPGH3077RFE 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA5304505563 Frigidaire Oven Wire
NIA316008401 Frigidaire Washer P-1
NI318147430 Frigidaire Oven Bumper
NI5304501948 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
1WCI 809145604
45304514666 Frigidaire Oven Panel
8808608806 Frigidaire Spark Module
11809089901 Frigidaire Oven Bracket
13318259513 Frigidaire Oven Glide
13A318259512 Frigidaire Oven Glide
16809020402 Frigidaire Oven Main Top
20B809144701 Frigidaire Oven Grate
20A809144801 Frigidaire Oven Grate
20809144702 Frigidaire Oven Grate
22ACAP
22B5304508443 Frigidaire Oven Surface Burner Cap
22C5304508442 Frigidaire Oven Surface Burner Cap
22D808851601 Frigidaire Oven Cap
225304508468 Frigidaire Oven Cap
26BRACKET, SUPPORT, REAR TRIM
345304495353 Frigidaire Oven Griddle
39808816703 Frigidaire Oven Handle
40809145901 Frigidaire Oven Box
605303310510 Frigidaire Oven Screw
915304500158 Frigidaire Oven Trim Assembly
124WCI 318330600
