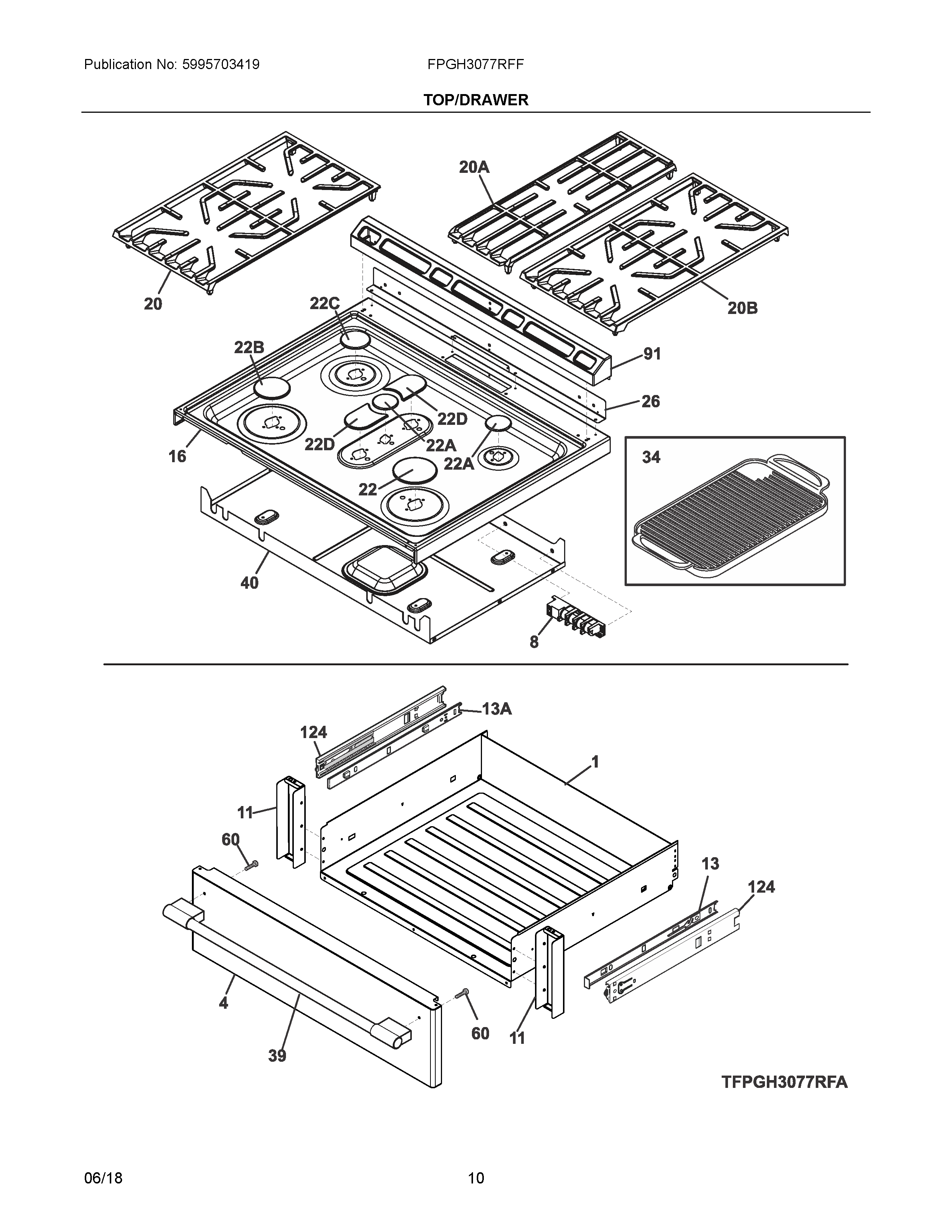

FPGH3077RFF 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	5304505563 Frigidaire Oven Wire
NIA	316008401 Frigidaire Washer P-1
NI	318147430 Frigidaire Oven Bumper
NI	5304501948 Frigidaire Screw
NI	316021109 Frigidaire Oven Screw
1	WCI 809145604
4	5304514666 Frigidaire Oven Panel
8	808608806 Frigidaire Spark Module
11	809089901 Frigidaire Oven Bracket
13	318259513 Frigidaire Oven Glide
13A	318259512 Frigidaire Oven Glide
16	809020402 Frigidaire Oven Main Top
20B	809144701 Frigidaire Oven Grate
20A	809144801 Frigidaire Oven Grate
20	809144702 Frigidaire Oven Grate
22A	CAP
22B	5304508443 Frigidaire Oven Surface Burner Cap
22C	5304508442 Frigidaire Oven Surface Burner Cap
22D	808851601 Frigidaire Oven Cap
22	5304508468 Frigidaire Oven Cap
26	BRACKET, SUPPORT, REAR TRIM
34	5304495353 Frigidaire Oven Griddle
39	808816703 Frigidaire Oven Handle
40	809145901 Frigidaire Oven Box
60	5303310510 Frigidaire Oven Screw
91	5304500158 Frigidaire Oven Trim Assembly
124	WCI 318330600
