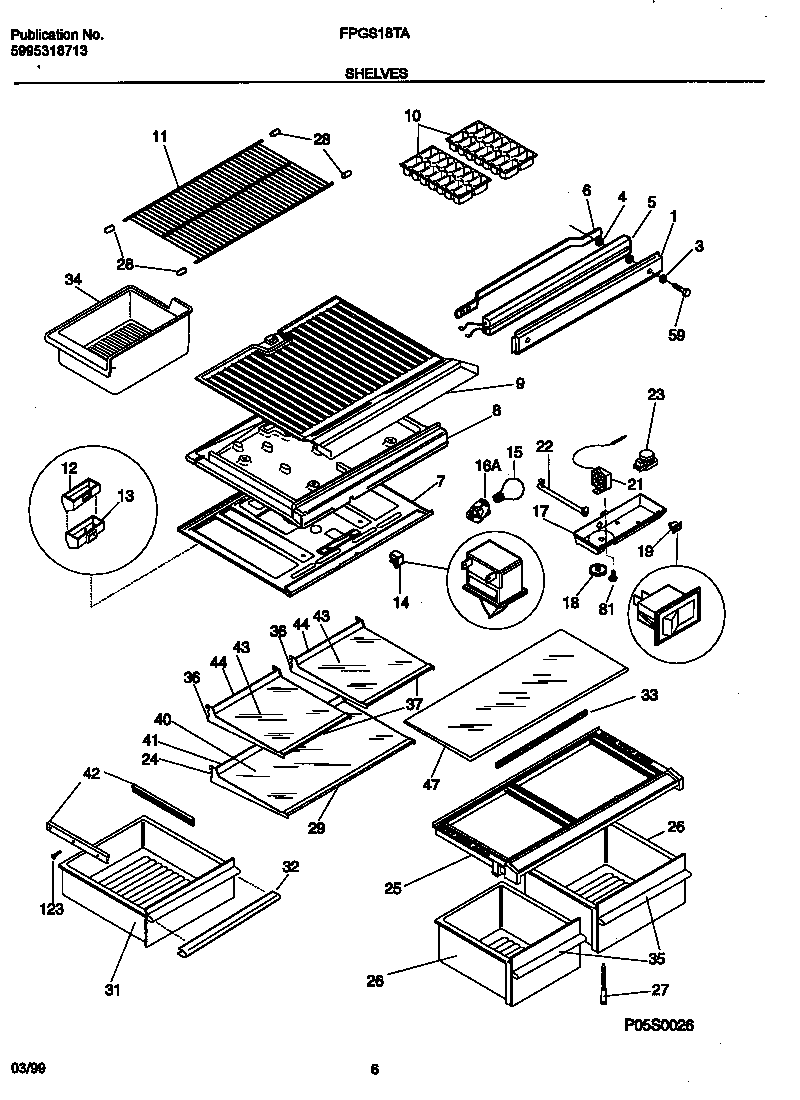

FPGS18TAL0 05 – SHELVES AND SUPPORTS

FPGS18TAL0 05 – SHELVES AND SUPPORTS

Written by

in

FPGS18TAL0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8AWCI 3018900
8DIVIDER-FOAM
8B3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206390
17ANUT, ANCHOR (NI)
18WCI 3206391
19WCI 5303207249
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215069002
25AWCI 5303280075
25COVER – CRISPER
26PAN-CRISPER, 14.34“ WIDE, RH
26APAN-CRISPER, 11.34“ WIDE, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303275679
29AWCI 5303209274
31WCI 5303299811
32WCI 5303279439
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35AWCI 5303282659
35WCI 5303275758
36FRAME-HALF SHELF
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37TRIM-HALF SHELF, FRONT
40WCI 5303211964
41WCI 5303211962
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
43GLASS, MEAT SHELF
