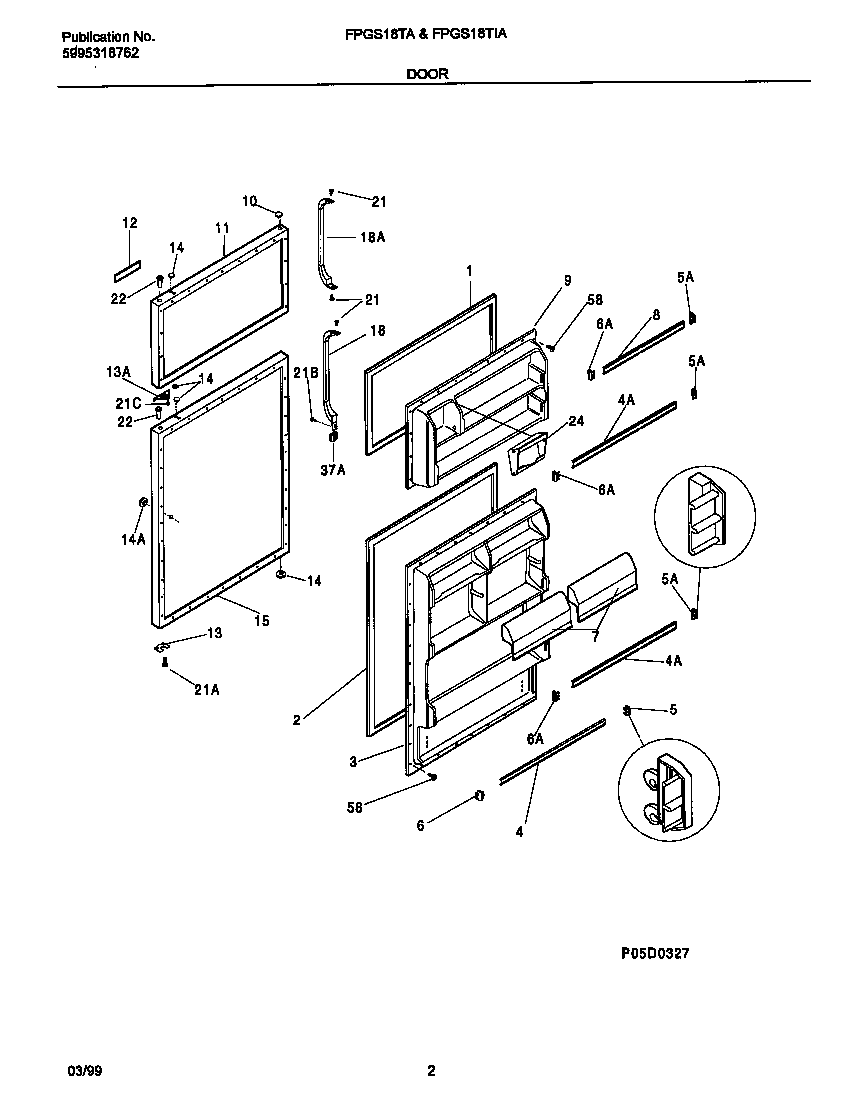

FPGS18TAL4 02 – DOORS

FPGS18TAL4 02 – DOORS

Written by

in

FPGS18TAL4 02 – DOORS

Products

PositionProduct
*56920INSULATION
1WCI 215608902
2WCI 215732403
3WCI 215132101
4RACK-DOOR, 25.53“ X 1.62“
4RACK-DOOR, 24.38“ X 1.58“
5WCI 5317828701
5SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6WCI 5317828401
6SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7DOOR-DAIRY
8WCI 215139810
9WCI 3202033
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917345
12WCI 215008602
13DOOR STOP, REFR SECTION
13WCI 218249002
14WCI 215352211
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917412
18WCI 215482132
18WCI 215482143
21218252201 Frigidaire Refrigerator Screw
21154518001 Frigidaire Refrigerator Screw
21WCI 5308011745
21SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND,
22BEARING-HINGE
24WCI 3203047
37TRIM-HANDLE, END CAP, ALMOND, REFR DOOR
585304455651 Frigidaire Refrigerator Screw
