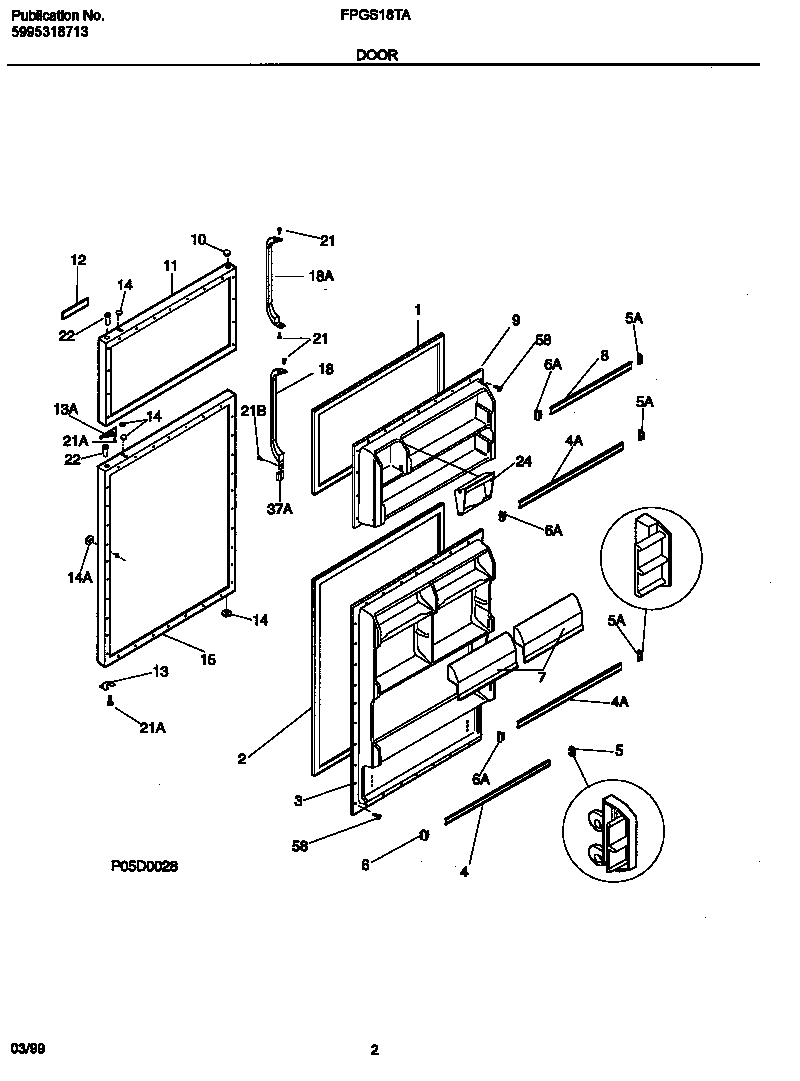

FPGS18TAW0 02 – DOOR PARTS

Products

Position	Product
*86403	INSULATION
1	WCI 5303018791
2	WCI 5303018792
3	WCI 215132101
4	RACK-DOOR, 25.53“ X 1.62“
4A	RACK-DOOR, 24.38“ X 1.58“
5	WCI 5317828701
5A	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6	WCI 5317828401
7	DOOR-DAIRY
8	WCI 215139810
9	WCI 3202033
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 5303917286
12	WCI 215008601
13	WCI 5308000255
13	DOOR STOP, REFR SECTION
15A	240494001 Frigidaire Refrigerator Plug Button
15	WCI 5303917288
18	HANDLE-DOOR, 20.10“, WHITE
18A	HANDLE-DOOR, 17.02“, WHITE
21	SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, WHITE,
21A	WCI 5308011745
21B	154518001 Frigidaire Refrigerator Screw
22	BEARING-HINGE
24	WCI 3203047
37A	TRIM-HANDLE, END CAP, WHITE, REFR DOOR
58	5304455651 Frigidaire Refrigerator Screw
