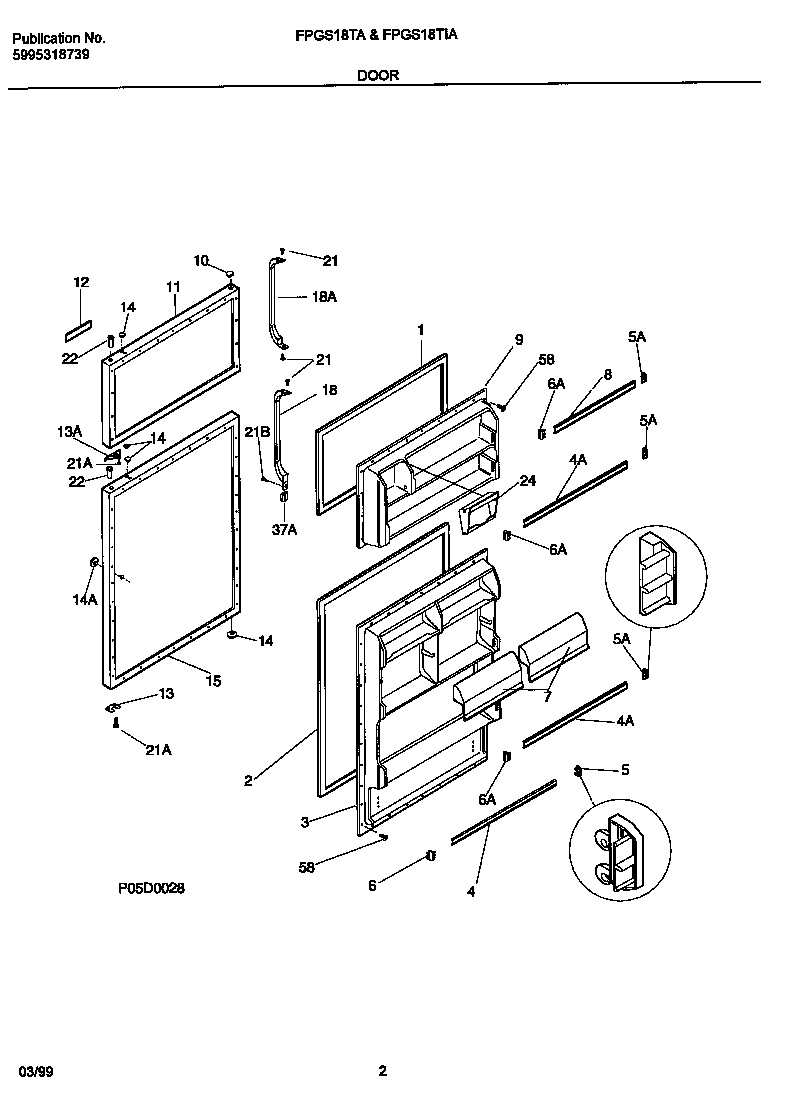

FPGS18TIAL1 02 – DOOR PARTSadmin2025-04-26T08:38:55+00:00FPGS18TIAL1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *10917 | INSULATION |
| 1 | WCI 5303276826 |
| 2 | WCI 5303275772 |
| 3 | WCI 215132101 |
| 4 | RACK-DOOR, 25.53`` X 1.62`` |
| 4A | RACK-DOOR, 24.38`` X 1.58`` |
| 5 | WCI 5317828701 |
| 5A | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6 | WCI 5317828401 |
| 7 | DOOR-DAIRY |
| 8 | WCI 215139810 |
| 9 | WCI 3202033 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917345 |
| 12 | WCI 215008602 |
| 13 | DOOR STOP, REFR SECTION |
| 13A | WCI 5308000255 |
| 14A | WCI 215352211 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | WCI 5303917412 |
| 18 | WCI 215482121 |
| 18A | WCI 215482110 |
| 21B | 154518001 Frigidaire Refrigerator Screw |
| 21A | WCI 5308011745 |
| 21 | SCREW-HANDLE MTG, CR OVAL HEAD, 10-24(D) X 5/8, ALMOND, |
| 22 | BEARING-HINGE |
| 24 | WCI 3203047 |
| 37A | TRIM-HANDLE, END CAP, ALMOND, REFR DOOR |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
