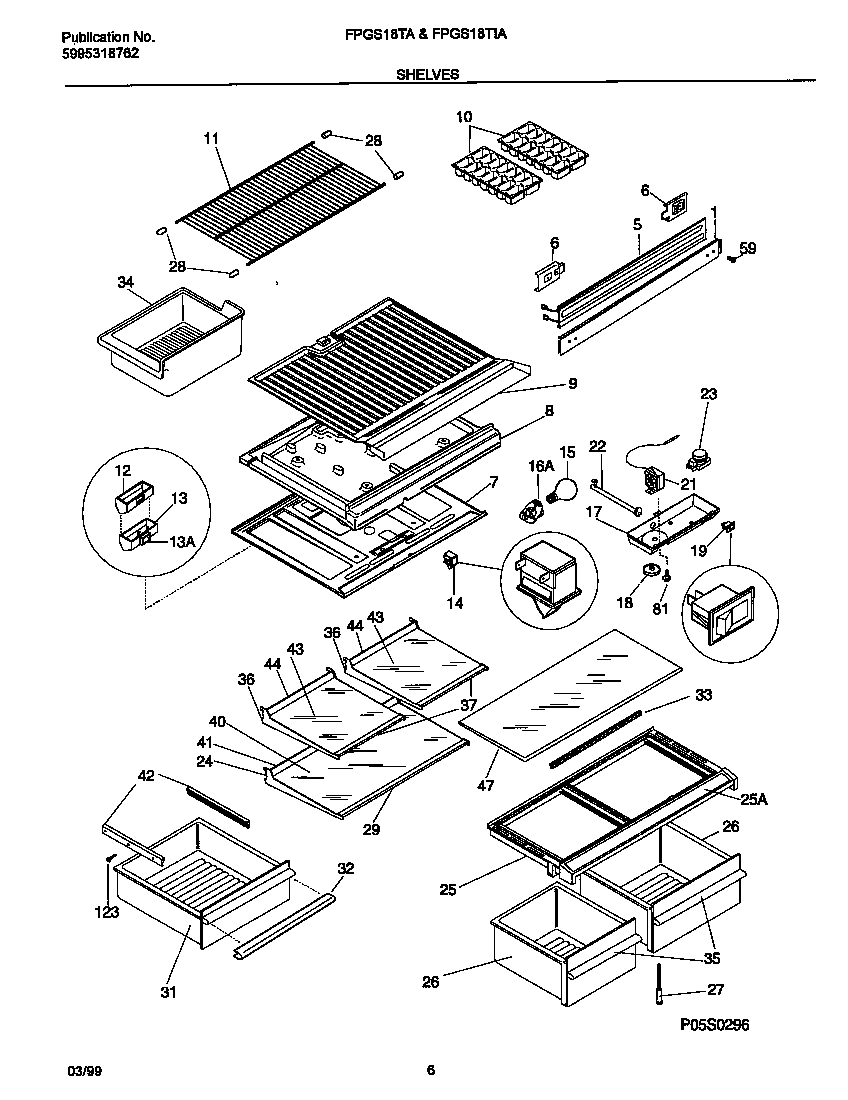

FPGS18TIAL3 04 – SHELVES

FPGS18TIAL3 04 – SHELVES

Written by

in

FPGS18TIAL3 04 – SHELVES

Products

PositionProduct
*569365304455649 Frigidaire Refrigerator Screw
*56931WCI 3018900
*56935WCI 5303001260
*56934NUT, ANCHOR (NI)
*569323205266 Frigidaire Refrigerator Edge Protector
*569335303001449 Frigidaire Refrigerator Seal
*56930WCI 5303001380
1WCI 218252504
5WCI 218271402
6WCI 218279800
7TOP – REFRIGERATOR
8DIVIDER-FOAM
9WCI 5303211427
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 3206390
18WCI 3206391
19WCI 5303207249
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919107
25WCI 5303280075
25COVER – CRISPER
26BPAN-CRISPER, 14.34“ WIDE, RH
26APAN-CRISPER, 11.34“ WIDE, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-GLASS SHELF,26.12“ ,FRONT
31WCI 5303293818
32WCI 5303279439
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35BWCI 5303282659
35AWCI 5303275758
36WCI 215919106
37TRIM-GLASS SHELF, 12.59“, FRONT
40WCI 5303211964
41WCI 215919804
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
43GLASS, MEAT SHELF
44WCI 215919810
47WCI 5303211968
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
