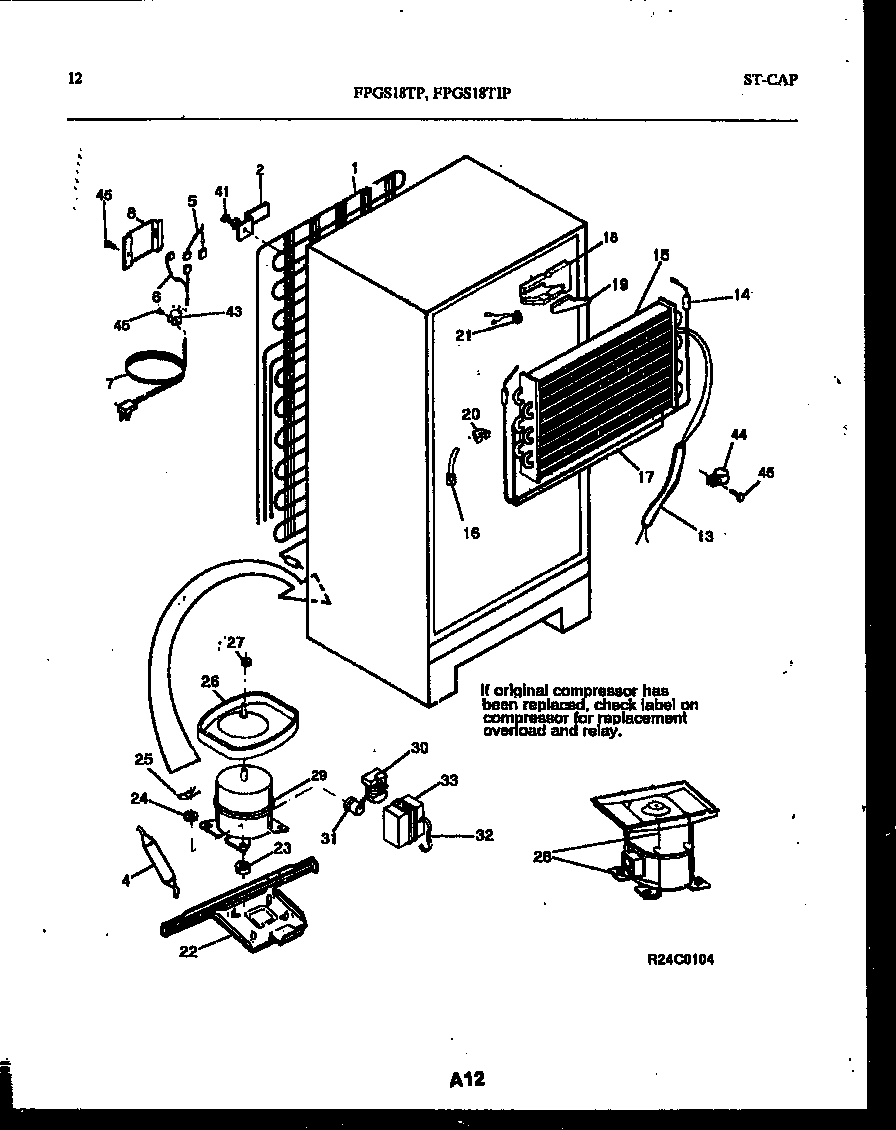

FPGS18TPLL0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*61226	WCI 3916557
*61226	5304455852 Frigidaire Refrigerator Screw
1	WCI 5300163133
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 3018900
6	WIRING HARNESS-COMPRESSOR
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 215133500
14	3206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303207493
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 3206126
22A	5304500008 Frigidaire Oven Screw
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	COMPRESSOR W/ ELECTRICALS-SERVICE
30	216594300 Frigidaire Refrigerator Starter
31	WCI 5303270406
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
