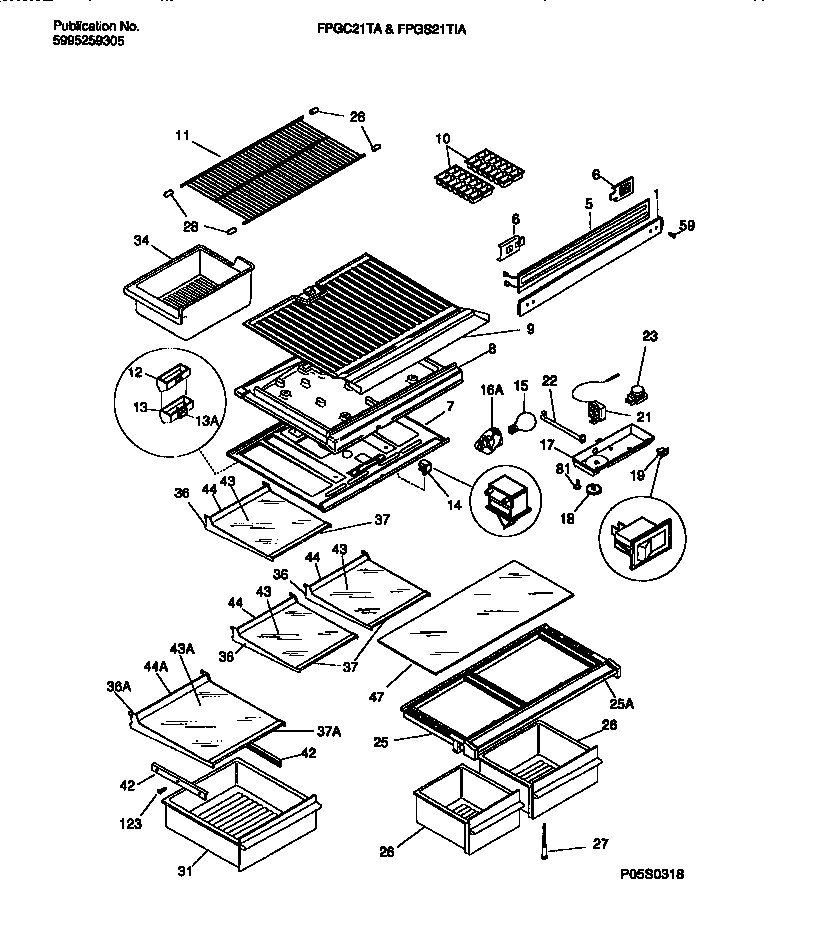

FPGS21TIAL3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

FPGS21TIAL3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FPGS21TIAL3 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252504
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7WCI 3019038
8WCI 5303019039
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9BOTTOM, FREEZER
11ASPACER, FRZR SHELF (NOT ILLUSTRATED)
11WCI 5303288243
12WCI 530804667
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25AWCI 5303280075
25WCI 5303206538
26AWCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303295941
345303212918 Frigidaire Refrigerator Cont
36WCI 215919116
36AFRAMER, HALF SHELF, CATILEVER
37TRIM-GLASS SHELF, 13.07“, FRONT
37ATRIM-GLASS SHELF, 12.59“, FRONT
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
43WCI 5303295999
43AWCI 5303296001
44TRIM-GLASS SHELF,13.07“ ,REAR
44AWCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
