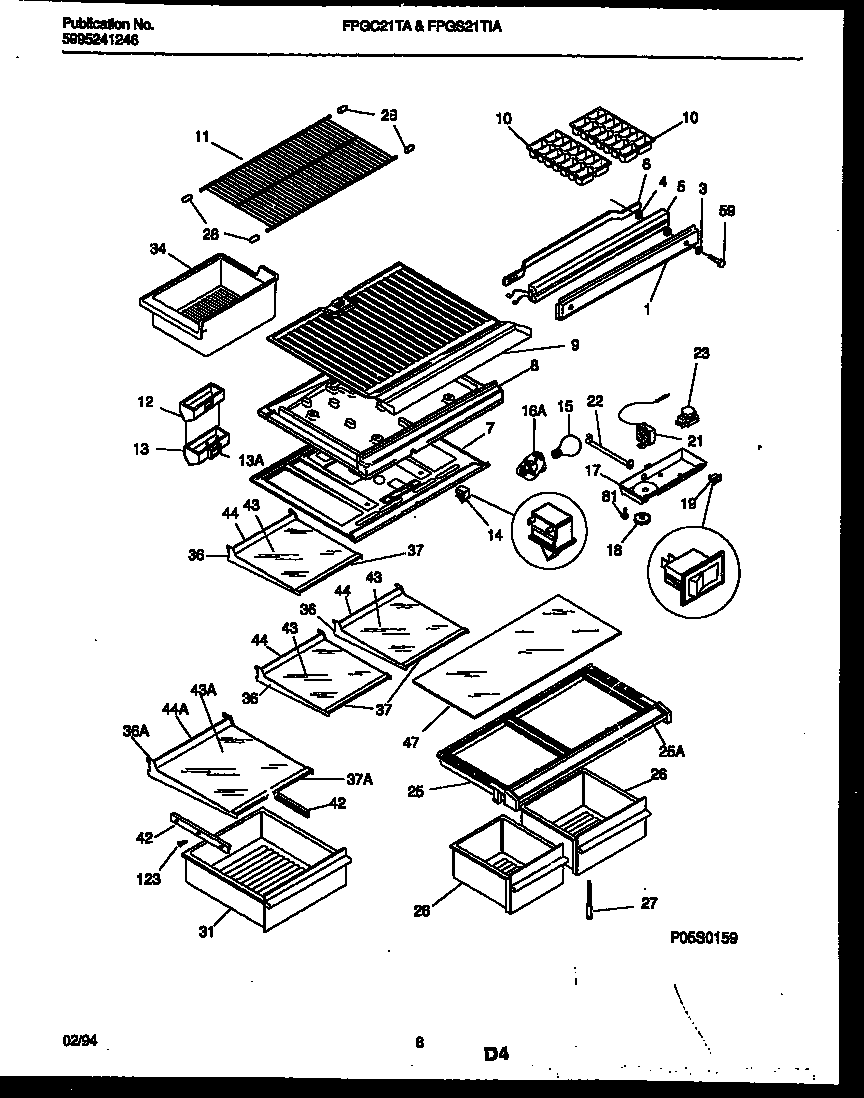

FPGS21TIAW0 05 – SHELVES AND SUPPORTS

FPGS21TIAW0 05 – SHELVES AND SUPPORTS

Written by

in

FPGS21TIAW0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM, FREEZER
11WCI 5303288243
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303296359
17ANUT, ANCHOR (NI)
18WCI 5303296361
19SWITCH-ENERGY SAVER, ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25WCI 5303206538
25AWCI 5303280075
26WCI 5303295931
26WCI 5303295929
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303295941
345303212918 Frigidaire Refrigerator Cont
36BWCI 215339900
36FRAME-HALF SHELF, CANTILEVER
36AFRAME-PAN MTG SHELF, CANTILEVER, HALF WIDTH
37BRETAINER-GLASS, (3) (NON-ILLUSTRATED)
37WCI 5303293824
37AWCI 5303293823
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 5303295999
