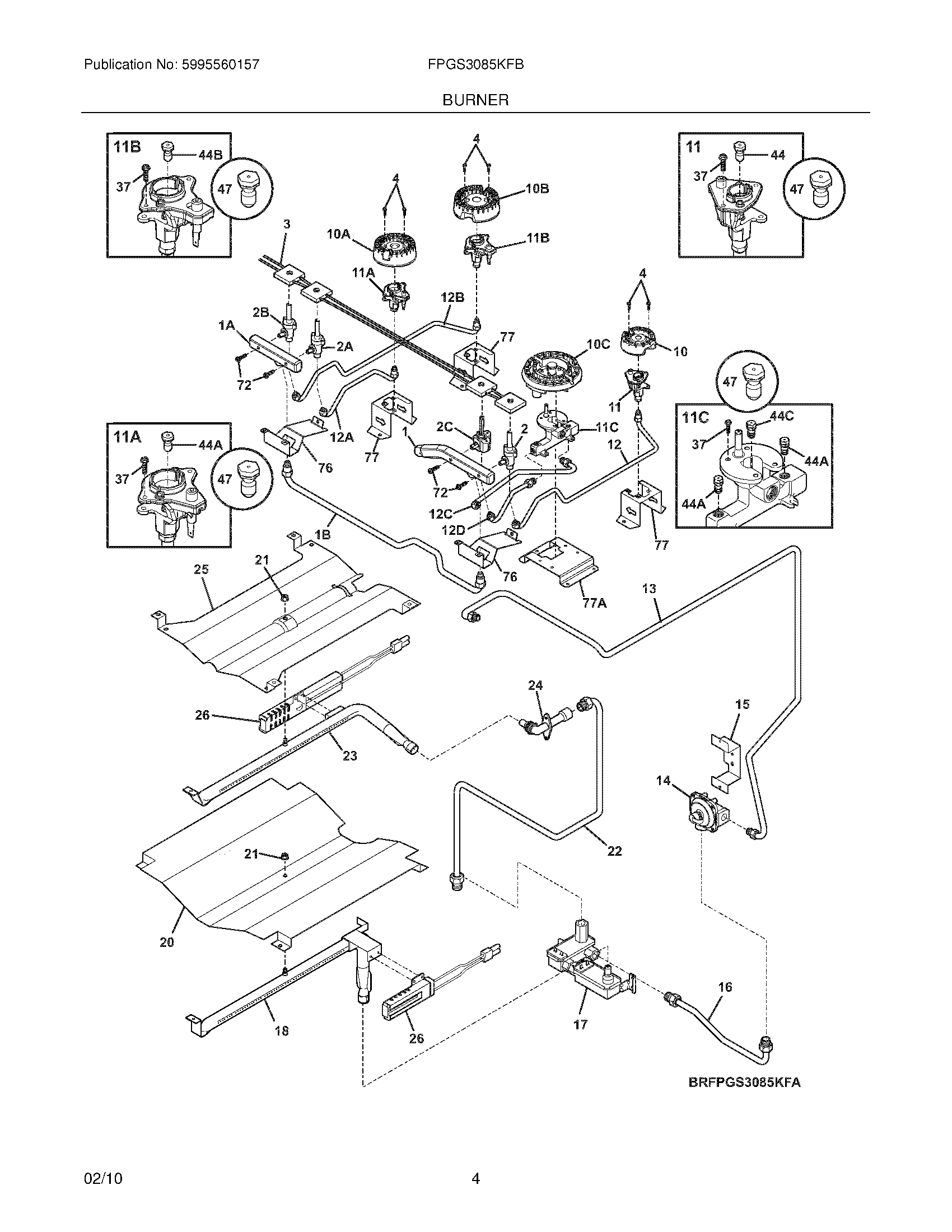

FPGS3085KFB 05 – BURNER

FPGS3085KFB 05 – BURNER

Written by

in

FPGS3085KFB 05 – BURNER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI5300803416 Frigidaire Dishwasher Screw
NI318199776 Frigidaire Electrical Harness
NIWCI 5304463705
NI5303211311 Frigidaire Refrigerator Screw
NIScrew,No.8-18 x 3/8 ,(10)
NI318268600 Frigidaire Oven Harness
NI5303325980 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
1WCI 318913400
1AWCI 318907200
1BWCI 318913500
2CWCI 316412513
2AWCI 318915701
2BWCI 318915703
2WCI 318915700
3WCI 318232659
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10C316440300 Frigidaire Burner Assembly
10A316558300 Frigidaire Oven 9.5L Sealed Burner
11316540800 Frigidaire Igniter/Orifice Assembly
11C316440100 Frigidaire Igniter and Orifice Assembly
11B316543206 Frigidaire Igniter Orifice Assembly
11A316540700 Frigidaire Igniter/Orifice Assembly
12DWCI 318928200
12B318916600 Frigidaire Oven Tube
12CWCI 318928100
12A318916500 Frigidaire Oven Tube
12WCI 318916800
13WCI 318913600
14316091711 Frigidaire Regulator Assembly
15318262810 Frigidaire Oven Bracket
16WCI 318289500
17316404901 Frigidaire Oven Valve
18318292200 Frigidaire Oven Burner
20WCI 318290400
215303013272 Frigidaire Oven Nut
22318305203 Frigidaire Tube
23WCI 318292300
24WCI 316409703
25WCI 316401301
265303935066 Frigidaire Oven Flat Igniter 17" Leads
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
44B316527513 Frigidaire Oven Orifice
44C316527514 Frigidaire Oven Orifice Assembly
47318565406 Frigidaire Kit Conversion
72316215600 Frigidaire Oven Screw
76WCI 318906702
77WCI 318920300
77AWCI 318384103
