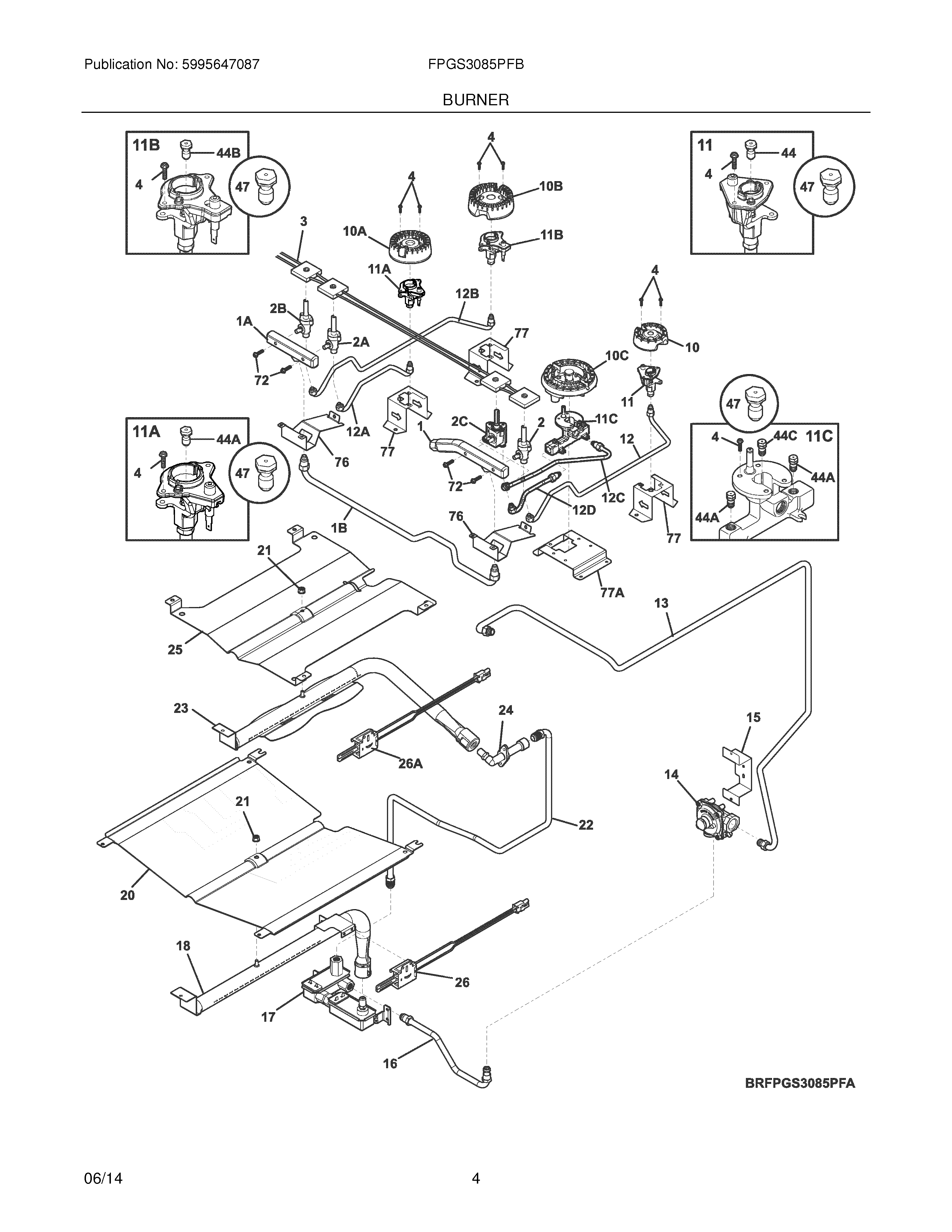

FPGS3085PFB 05 – BURNER

FPGS3085PFB 05 – BURNER

Written by

in

FPGS3085PFB 05 – BURNER

Products

Position	Product
NI	3203010 Frigidaire Clip
NI	316418901 Frigidaire Oven Screw
NI	316566901 Frigidaire Oven Sleeve
NI	808041201 Frigidaire Oven Harness
NI	318199776 Frigidaire Electrical Harness
NI	316021109 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316021105 Frigidaire Oven Screw
1	WCI 318913400
1B	WCI 318913500
1A	WCI 318907200
2B	WCI 318915703
2A	WCI 318915701
2C	316412515 Frigidaire Oven Valve
2	WCI 318915700
3	WCI 318232659
4	316240600 Frigidaire Igniter Mounting Screw
10C	316440300 Frigidaire Burner Assembly
10B	316438600 Frigidaire Range Sealed Burner, 14K
10	316438200 Frigidaire Range Sealed Burner, 5K
10A	316558300 Frigidaire Oven 9.5L Sealed Burner
11A	316540700 Frigidaire Igniter/Orifice Assembly
11C	316440100 Frigidaire Igniter and Orifice Assembly
11B	316543206 Frigidaire Igniter Orifice Assembly
11	316540800 Frigidaire Igniter/Orifice Assembly
12B	318916600 Frigidaire Oven Tube
12C	WCI 318928100
12D	WCI 318928200
12	WCI 318916800
12A	318916500 Frigidaire Oven Tube
13	WCI 318913600
14	316091711 Frigidaire Regulator Assembly
15	318262810 Frigidaire Oven Bracket
16	WCI 318289500
17	SAFETY VALVE
18	5304502520 Frigidaire Oven Burner
20	139005100 Frigidaire Oven Baffle
21	5303013272 Frigidaire Oven Nut
22	139009500 Frigidaire Tube
23	139007101 Frigidaire Burner
24	WCI 316409703
25	WCI 316401301
26A	139013701 Frigidaire Igniter
26	139013700 Frigidaire Igniter
44C	316527514 Frigidaire Oven Orifice Assembly
44A	316527500 Frigidaire Oven Burner Orifice
44	316527504 Frigidaire Oven Orifice
44B	316527513 Frigidaire Oven Orifice
47	318565406 Frigidaire Kit Conversion
72	316215600 Frigidaire Oven Screw
76	WCI 318906703
77	WCI 318920300
77A	WCI 318384103
