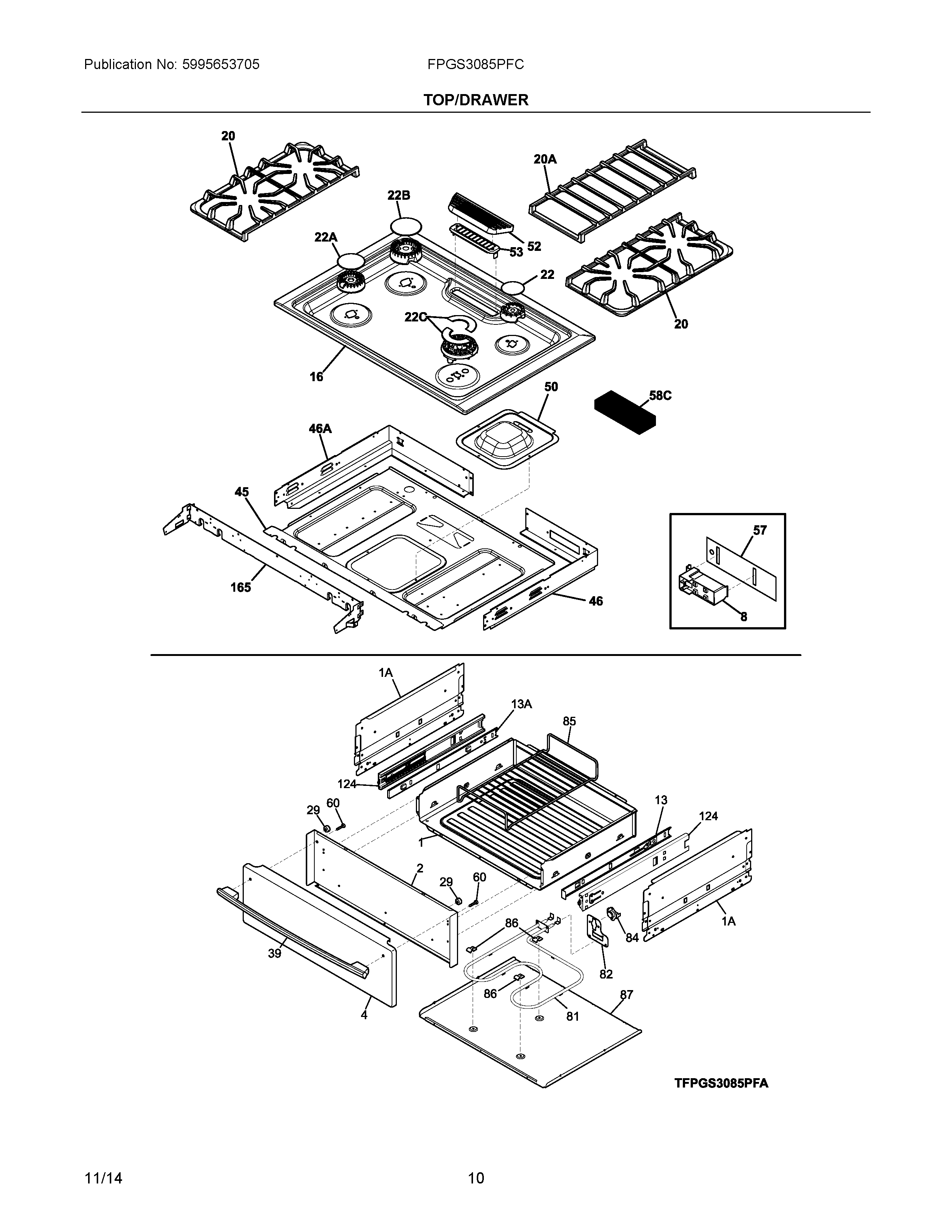

FPGS3085PFC 05 – TOP/DRAWER

FPGS3085PFC 05 – TOP/DRAWER

Written by

in

FPGS3085PFC 05 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318291505 Frigidaire Plate
NI807527301 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
1WCI 318304404
1A318300003 Frigidaire Oven Panel
2WCI 318303907
4318298829 Frigidaire Oven Panel
8808608802 Frigidaire Oven Spark Ignition Four Pole
13WCI 318259509
13AWCI 318259508
16MAINTOP ASSEMBLY, BLACK
205304493357 Frigidaire Grate
20A5304490871 Frigidaire Grate
22A5304508442 Frigidaire Oven Surface Burner Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22CAP
22C316262204 Frigidaire Oven Cap
29318147430 Frigidaire Oven Bumper
39HANDLE, DOOR/DRAWER, STAINLESS
45318578704 Frigidaire Panel Assembly
46WCI 318568200
46AWCI 318568201
50PANEL, SERVICE, FAN
52318291126 Frigidaire Cover
53WCI 318308303
57318295611 Frigidaire Panel
58C318594401 Frigidaire Insulation
60WCI 5304472906
81318255301 Frigidaire Oven Element
82WCI 318304500
84318005108 Frigidaire Thermostat
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87318300102 Frigidaire Oven Panel
124316105501 Frigidaire P-1 Glide
165WCI 318913300
