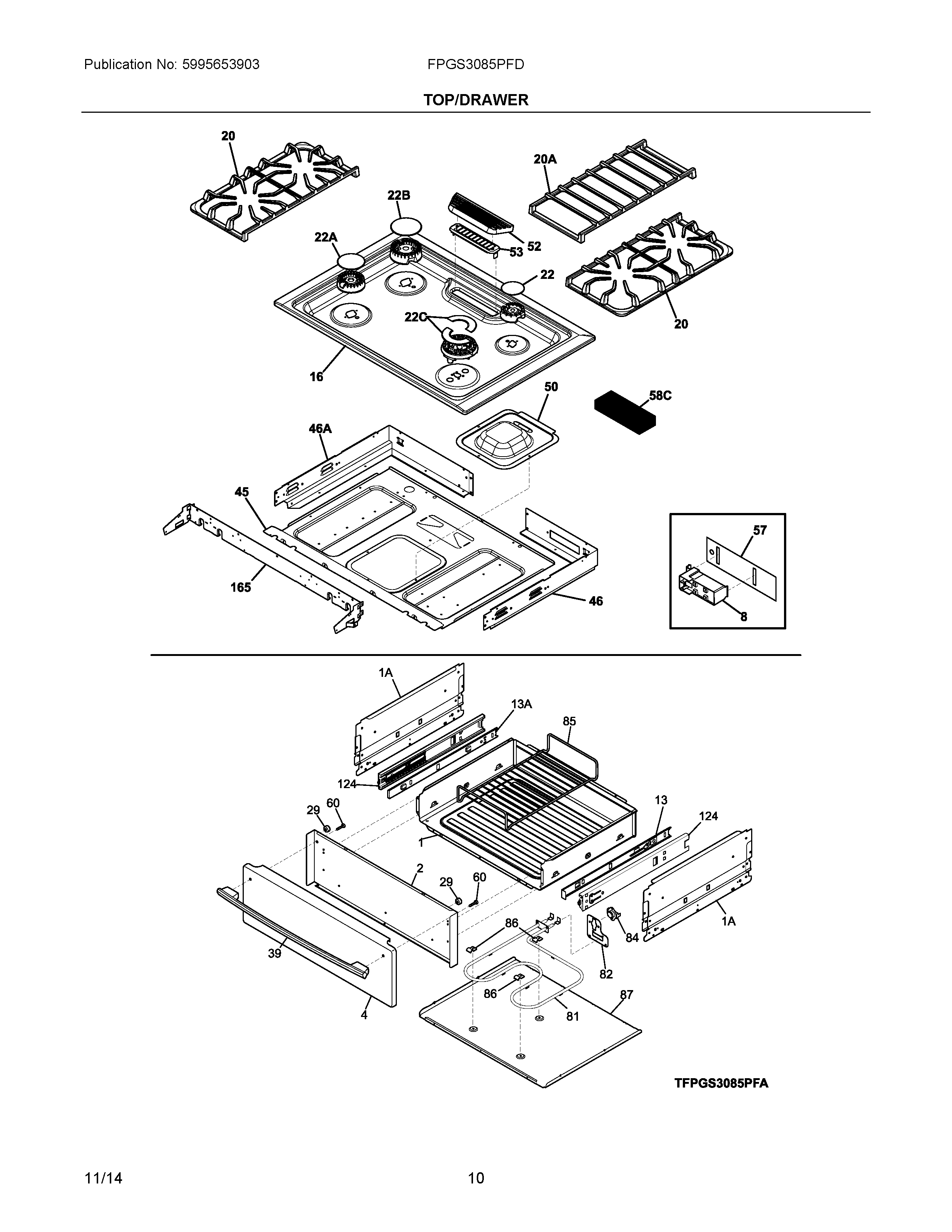

FPGS3085PFD 05 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	318291505 Frigidaire Plate
NI	807527301 Frigidaire Harness
NI	316021109 Frigidaire Oven Screw
1	WCI 318304404
1A	318300003 Frigidaire Oven Panel
2	WCI 318303907
4	318298829 Frigidaire Oven Panel
8	808608802 Frigidaire Oven Spark Ignition Four Pole
13	WCI 318259509
13A	WCI 318259508
16	MAINTOP ASSEMBLY, BLACK
20	5304493357 Frigidaire Grate
20A	5304490871 Frigidaire Grate
22A	5304508442 Frigidaire Oven Surface Burner Cap
22B	5304508443 Frigidaire Oven Surface Burner Cap
22	CAP
22C	316262204 Frigidaire Oven Cap
29	318147430 Frigidaire Oven Bumper
39	HANDLE, DOOR/DRAWER, STAINLESS
45	318578704 Frigidaire Panel Assembly
46	WCI 318568200
46A	WCI 318568201
50	PANEL, SERVICE, FAN
52	318291126 Frigidaire Cover
53	WCI 318308303
57	318295611 Frigidaire Panel
58C	318594401 Frigidaire Insulation
60	WCI 5304472906
81	318255301 Frigidaire Oven Element
82	WCI 318304500
84	318005108 Frigidaire Thermostat
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
124	316105501 Frigidaire P-1 Glide
165	WCI 318913300
