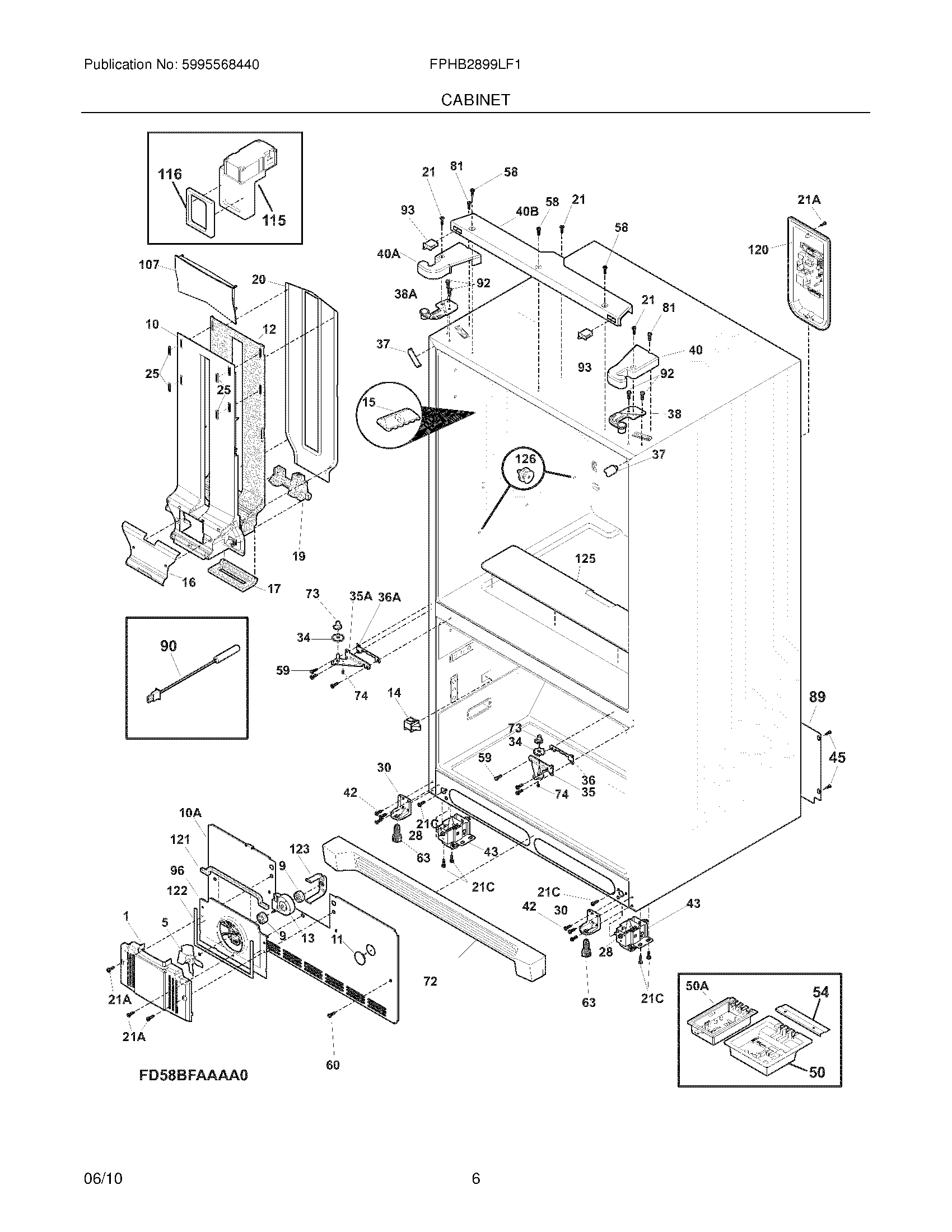

FPHB2899LF1 07 – CABINET

FPHB2899LF1 07 – CABINET

Written by

in

FPHB2899LF1 07 – CABINET

Products

Position	Product
NI	242006903 Frigidaire Refrigerator Air Duct
NI	5304521649 Frigidaire Refrigerator Wiring Harness
NI	WCI 242025201
NI	WCI 242061601
NI	215474201 Frigidaire Refrigerator Washer
NI	WCI 5303918416
NI	240494001 Frigidaire Refrigerator Plug Button
NI	241969001 Frigidaire Refrigerator Cap
NI	242072501 Frigidaire Refrigerator Insulation
1	241859701 Frigidaire Refrigerator Fan Cover
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
9	241518301 Frigidaire Refrigerator Bushing
10	242072002 Frigidaire Refrigerator Cover
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
12	INSULATION-AIR DUCT
13	SWS:EVAPORATOR FAN MOTOR
14	242060201 Frigidaire Refrigerator Switch-Light/Lamp
15	WCI 241891102
16	242072101 Frigidaire Refrigerator Cover
17	5303918479 Frigidaire Refrigerator Gasket
19	242072601 Frigidaire Refrigerator Support
20	242072201 Frigidaire Refrigerator Cover
21A	5304453707 Frigidaire Oven Screw
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
25	241949502 Frigidaire Refrigerator Clip
30	241778701 Frigidaire Refrigerator Anti-Tip Bracket
34	241868301 Frigidaire Refrigerator Washer
35A	241767212 Frigidaire Refrigerator Lower Hinge
35	241767211 Frigidaire Refrigerator Lower Hinge
36A	241868202 Frigidaire Refrigerator Spacer
36	241868201 Frigidaire Refrigerator Spacer
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40B	241862405 Frigidaire Refrigerator Upper Hinge Cover
40	5304494165 Frigidaire Refrigerator Upper Hinge Cover
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50A	241852501 Frigidaire Refrigerator Clip
50	WCI 241996322
50A	WCI 241891604
54	241532401 Frigidaire Refrigerator Channel
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
60	218362501 Frigidaire Refrigerator Screw
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	242054804 Frigidaire Refrigerator Kickplate Grille
73	242075701 Frigidaire Refrigerator Cam-Lower Hinge
74	218755401 Frigidaire Refrigerator Screw Set
89	WCI 241733905
90	240597220 Frigidaire Sensor
92	241710601 Frigidaire Refrigerator Screw
93	241835505 Frigidaire Refrigerator Light Switch
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
107	241963102 Frigidaire Refrigerator Duct-Air
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
120	WCI 241956703
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
125	242071201 Frigidaire Refrigerator Cover
126	5304515677 Frigidaire Package of 4 Screws
