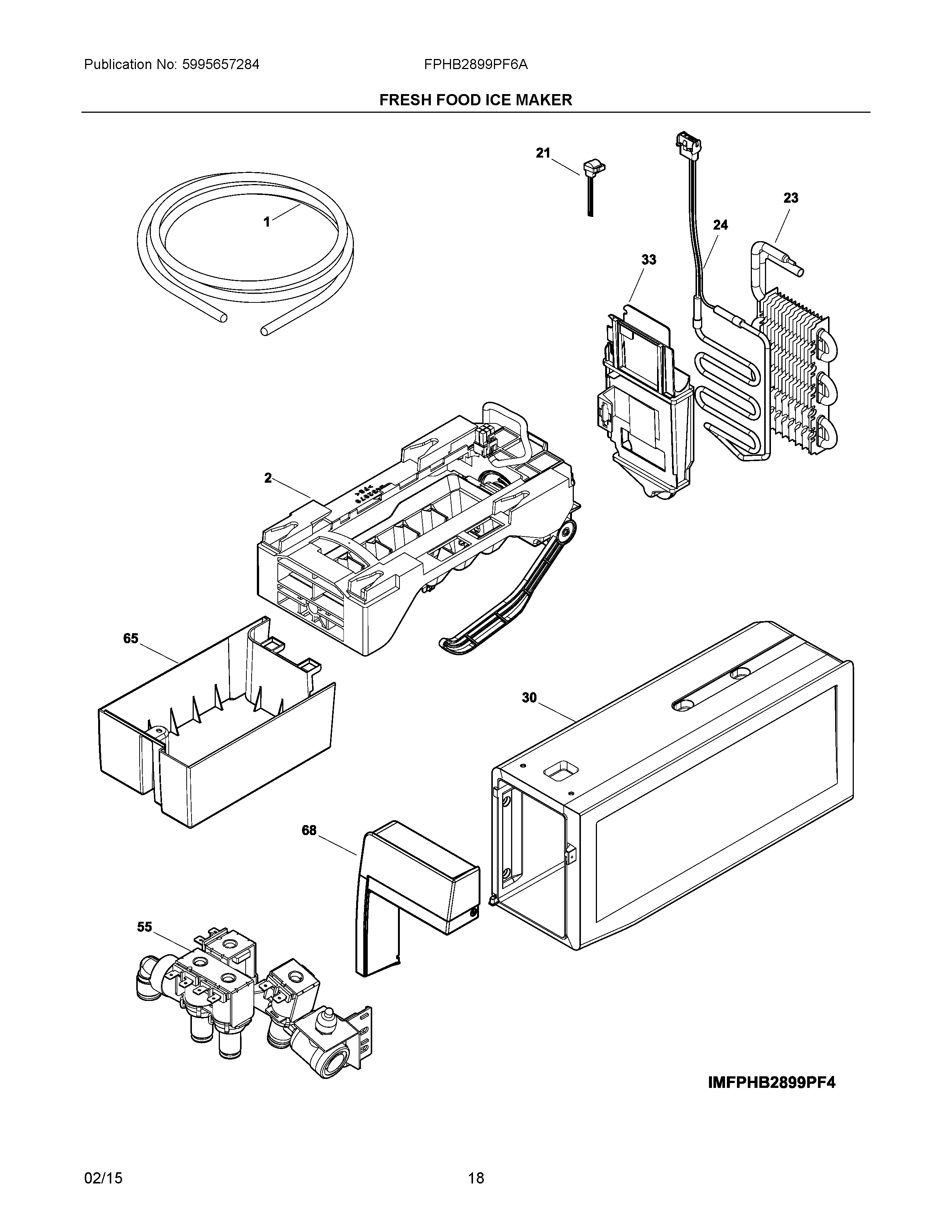

FPHB2899PF6A 09 – FRESH FOOD ICE MAKER

Products

PositionProduct
NIA241953902 Frigidaire Refrigerator Screw
NIF242220202 Frigidaire Refrigerator Water Inlet Tube
NID241965906 Frigidaire Refrigerator Water Tube
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIA242096001 Frigidaire Refrigerator Insulation
NIA808714501 Frigidaire Refrigerator Harness
NIA5303918784 Frigidaire Refrigerator Air Handler Housing
NIC241964707 Frigidaire Refrigerator Water Tube
NIB241920106 Frigidaire Fill Tube Kit
NI240396801 Frigidaire Refrigerator Tube Clamp
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIE242220204 Frigidaire Water Inlet Tube
NI241806601 Frigidaire Refrigerator Water Connector
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIA241844403 Frigidaire Refrigerator Tube
1218976436 Frigidaire Refrigerator Water Inlet Tube
2243297613 Frigidaire Refrigerator Ice Maker
215303918568 Frigidaire Thermostat Defrost
23242094603 Frigidaire Refrigerator Evaporator
24242094802 Frigidaire Defrost Heater
30242100402 Frigidaire Refrigerator Housing Assembly
33HOUSING-EVAPORATOR
55QUAD WATER VALVE
65808462601 Frigidaire Refrigerator Cover
66WCI 242060701
68242095002 Frigidaire Refrigerator Cover
