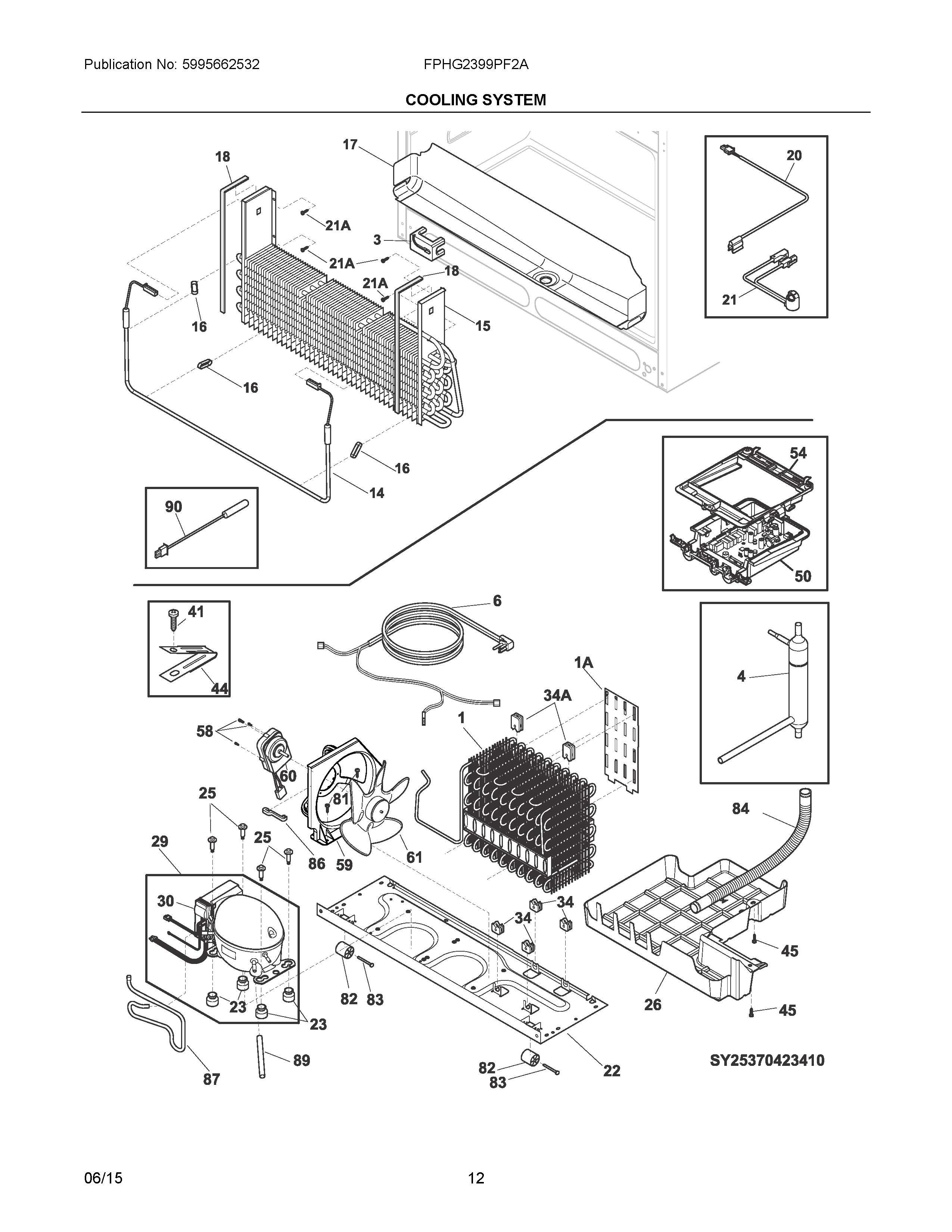

FPHG2399PF2A 06 – COOLING SYSTEM

FPHG2399PF2A 06 – COOLING SYSTEM

Written by

in

FPHG2399PF2A 06 – COOLING SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NIA	WCI 242141202
NIA	241810104 Frigidaire Refrigerator Seal
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	241947701 Frigidaire Refrigerator Spacer
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	242104901 Frigidaire Refrigerator Wiring Harness
1A	241987301 Frigidaire Refrigerator Deflector-Air
1	241862903 Frigidaire Refrigerator Condenser
3	241838401 Frigidaire Refrigerator Block-Evaporator Coil
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5303918410 Frigidaire Refrigerator Defrost Heater Kit
15	242044501 Frigidaire Refrigerator Evaporator
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241791201 Frigidaire Refrigerator Trough-Drain
18	241860101 Frigidaire Refrigerator Gasket
20	808137001 Frigidaire Refrigerator Thermistor
21	5304521781 Frigidaire Refrigerator Thermostat
22	241602112 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241920608 Frigidaire PAN-DEFROST
29	5304524549 Frigidaire Refrigerator Compressor with Inverter
29A	5304475104 Frigidaire Refrigerator Compressor Kit
30	5304512686 Frigidaire Refrigerator Inverter Kit
34	241929901 Frigidaire GROMMET-COND MTG
34A	241929902 Frigidaire Condenser Mounting Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
50	5304504031 Frigidaire Refrigerator Main Power Board
54	807854301 Frigidaire Refrigerator Support
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	240359403 Frigidaire Refrigerator Fan Shroud Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241830904 Frigidaire Refrigerator Drain Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
87	WCI 241846302
89	WCI 215346900
90	240597220 Frigidaire Sensor
