FPHI2188PF1 07 – SHELVES

FPHI2188PF1 07 – SHELVES

Written by

in

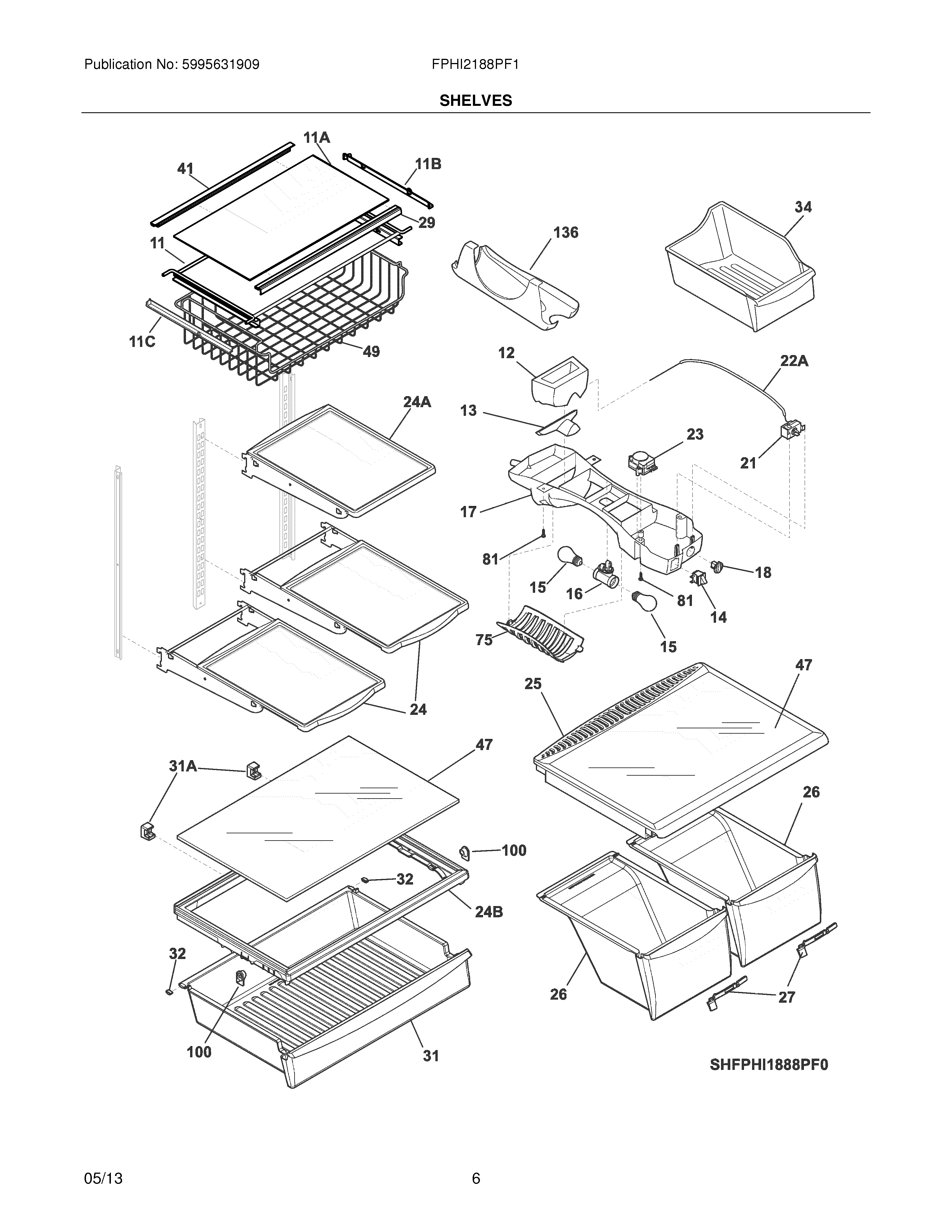

FPHI2188PF1 07 – SHELVES

Products

Position	Product
NI	5304455649 Frigidaire Refrigerator Screw
NI	WCI 807407006
NI	5303299664 Frigidaire Refrigerator Spacer-Shelf
NI	5304535377 Frigidaire Aluminum Tape
NI	240568606 Frigidaire Refrigerator Coil Cover Seal
NI	240388701 Frigidaire Refrigerator Wiring Harness
11A	Glass-shelf,full shelf
11	Frame-shelf,full width
11C	Cover,hanger lh ,wire basket
11B	Cover,hanger rh ,wire basket
12	240545901 Frigidaire Refrigerator Air Diffuser
13	240362601 Frigidaire Refrigerator P1 Diffuser
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
15	316538904 Frigidaire Oven Lamp Light
16	240364201 Frigidaire Refrigerator Light/Lamp Socket
17	240368105 Frigidaire Refrigerator Control Box
18	Knob-control
21	241537103 Frigidaire Refrigerator Temperature Control Thermostat
22A	240468202 Frigidaire Refrigerator Tube
23	215846604 Frigidaire Refrigerator Defrost Timer
24B	240362101 Frigidaire Refrigerator Crisper Cover Clip
24A	240355261 Frigidaire Refrigerator "Spill-Safe" Shelf
24	SHELF-"SPILL-SAFE", CANTILEVER, SLIDING
24B	241872203 Frigidaire Refrigerator Beam Support
24B	242205404 Frigidaire Refrigerator Deli Pan Cover
25	WCI 242201803
26	242218506 Frigidaire Refrigerator Pan
27	242215901 Frigidaire Refrigerator Slide
29	TRIM-SHELF, FRONT
31A	SUPPORT-SHELF, FW PANTRY, REAR
31	242322203 Frigidaire Refrigerator Meat Pan
32	240349801 Frigidaire Refrigerator Clip
34	240385201 Frigidaire Refrigerator Ice Container
41	TRIM-SHELF, REAR
47	240350609 Frigidaire Refrigerator Crisper Cover Glass Shelf Insert
49	WCI 241833201
75	240412701 Frigidaire Light Cover
81	5304455650 Frigidaire Refrigerator Screw
100	241768601 Frigidaire Refrigerator Cover-Support Crisper
136	DISPENSER-CAN, WHITE
