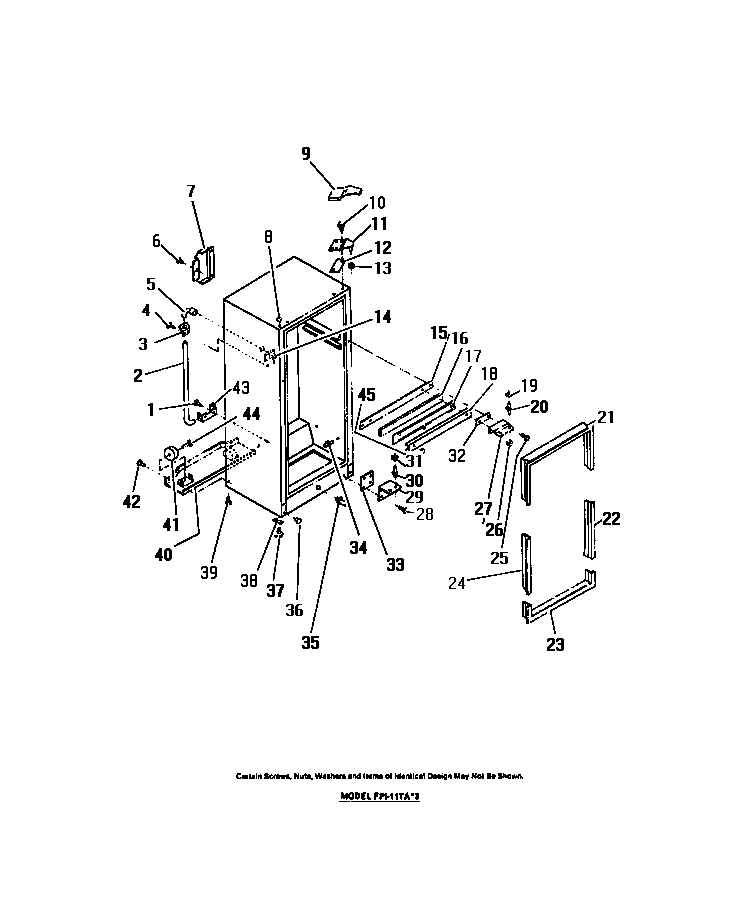

FPI11TAL3 02 – CABINET

FPI11TAL3 02 – CABINET

Written by

in

FPI11TAL3 02 – CABINET

Products

Position	Product
2	WCI 8016529
3	RETAINER
5	WCI 8011116
9A	COVER-HNG-ALMD
10	SCREW-HINGE MOUNTING (2)
11	WCI 8016530
12	SHIM-TOP HNG
14	SPOUT-DRAIN
15	WCI 8011211
16	WCI 8011192
17	HEATER-MULLION
18A	MULLION – ALMD
20	WCI 8000184
21	WCI 8011225
22	WCI 8011228
23	MOULDING-BTM
24	MLDG W/O HOLE-LS
25	WCI 8000127
26	WCI 8011151
27	HINGE BRKT – CTR
28	SCREW-SEMS (3)
29	HINGE BRKT-BTM
30	PIN-LOWER HINGE
31	WCI 8011152
32	SHIM-CTR HNG
33	SHIM-BTM HNG
34	SUPPORT (4)
35	WCI 8011162
36A	PLUG BUTTONS L (2)
37	SCREW-LEVLNG (2)
38	TEE NUT (2)
40	WCI 8012871
41	ROLLER-REAR (2)
42	SCREW-MTG. (10)
43	TRAP BRACKET
44	PIN-ROLLER (2)
