FPI11TAL3 05 – FOOD & FREEZER DOORS – Aparts

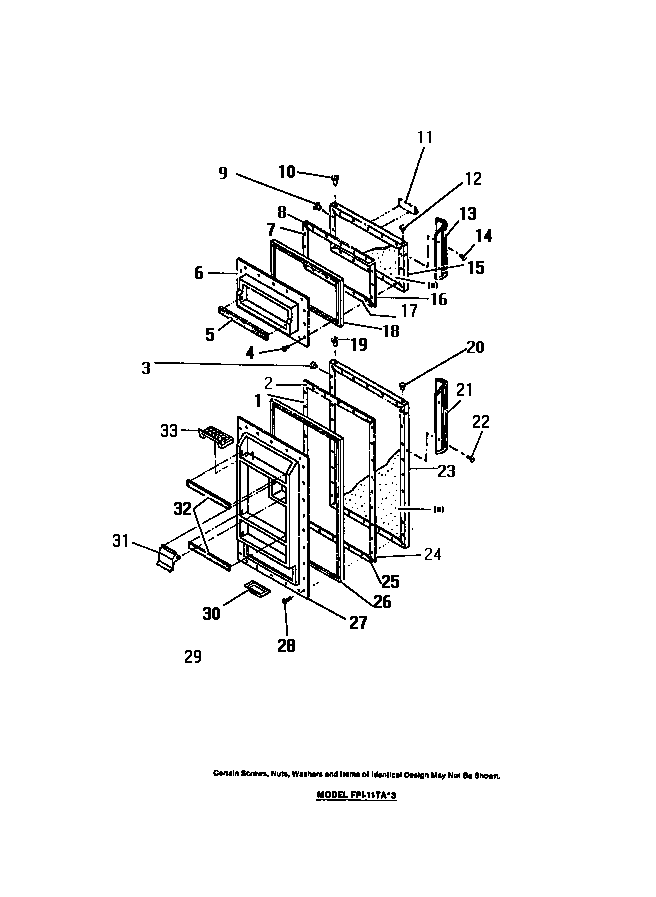

FPI11TAL3 05 – FOOD & FREEZER DOORS

Products

Position	Product
1	RETAINER-REFR LS
5	RACK-DOOR (3)
6	PANEL-INNER-FRZR
7	RETAINER-FRZR LS
9A	PLUG-HANDLE, ALMOND
11	WCI 8009843
15A	PANEL-EXT-ALMD RH
16	RETAINER-FRZR RS
18	GASKET-FRZR
19	HINGE BEARING (8)
20A	PLUG-HNG-ALMD
21	HANDLE ASSY (2)
22	SCREW-HANDLE MOUNTING (4)
23A	PANEL-EXT-ALMD
24	RETAINER-REFR RS
25	RETAINER-TOP/BTM
26	GASKET-REFR.
27	PANEL-INNER-REFR
28	SCREW-MTG (34)
29A	WCI 8016538
