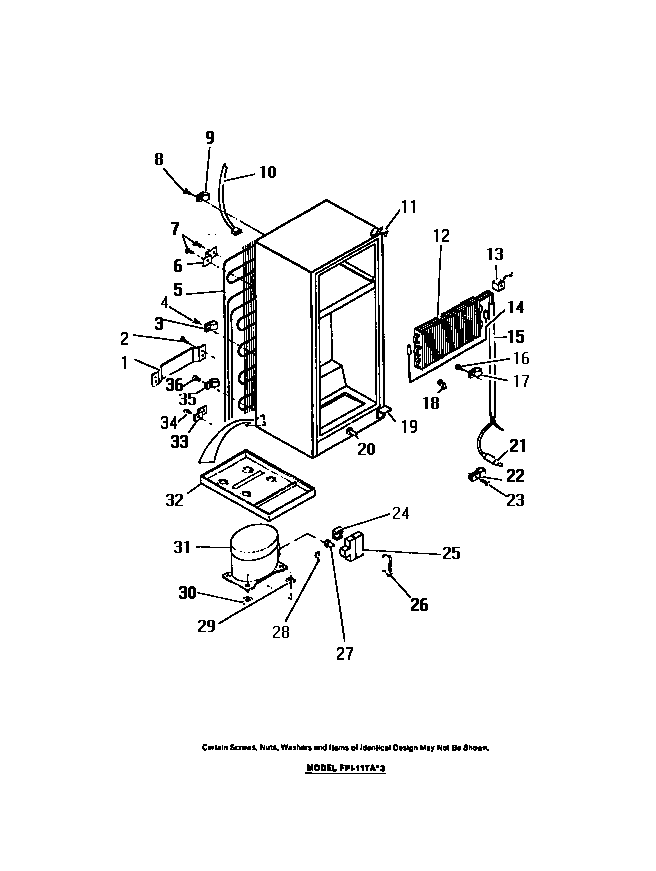

FPI11TAL3 06 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

Position	Product
1	WCI 8013300
2	WCI 8011120
5	WCI 8011180
6	BRKT-COND-UPR (2)
9	WCI 8011202
10	SERVICE CORD
11	WCI 8016530
12	WCI 8011224
13	THERMOSTAT-DFR
14	HEATER-DEFR.
15	HEAT EXCHANGER
18	WCI 8000110
19	HINGE BRKT-BTM
20	WCI 8011162
21	WCI 8000027
22	CLAMP (2)
24A	RELAY
24	START RELAY (ML064 COMPRESSOR)
25	WCI 8000116
25A	WCI 8007438
26A	WCI 8007439
26	WCI 8000117
27A	PROTECTOR-OVERLOAD
27	OVERLOAD PROTECTOR (ML064 COMPRESSOR)
28	WCI 8000115
28A	WCI 8007437
29	CLIP, COMPRESSOR MOUNTING (3)
30	WCI 8008778
31	WCI 8950037
32	DRAIN PAN
33	BRKT-COND-LWR (2)
35	CLAMP (2)
36	SCREW-MTG. (10)
