FPI11TAW3 05 – FOOD & FREEZER DOORS

FPI11TAW3 05 – FOOD & FREEZER DOORS

Written by

in

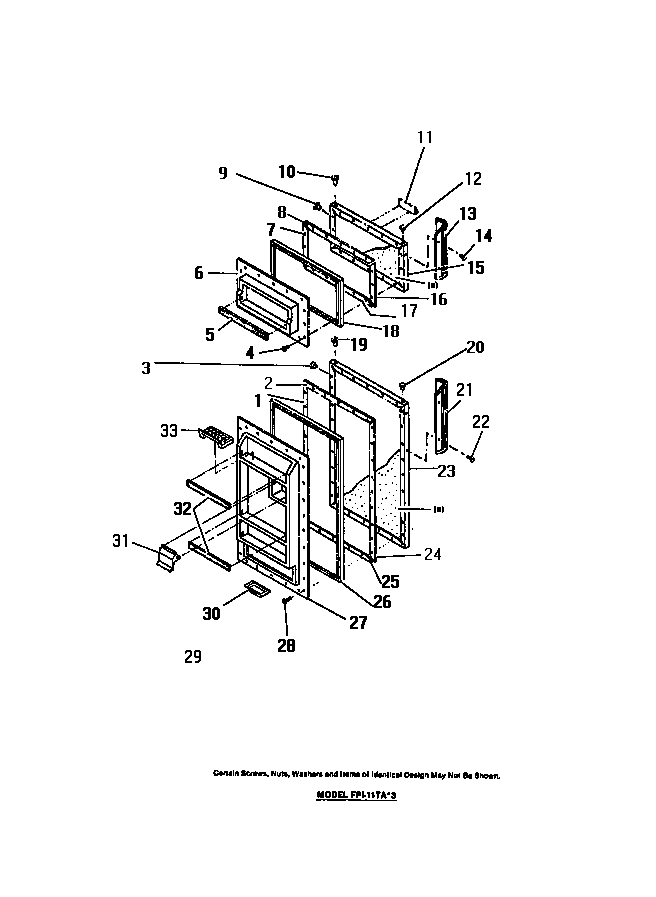

FPI11TAW3 05 – FOOD & FREEZER DOORS

Products

Position	Product
1	RETAINER-REFR LS
6	PANEL-INNER-FRZR
7	RETAINER-FRZR LS
9	PLUG-HANDLE, WHITE
11	WCI 8009843
15	WCI 8016535
16	RETAINER-FRZR RS
18	GASKET-FRZR
19	HINGE BEARING (8)
20	PLUGS
21	HANDLE ASSY (2)
22	SCREW-HANDLE MOUNTING (4)
23	WCI 8013301
24	RETAINER-REFR RS
25	RETAINER-TOP/BTM
26	GASKET-REFR.
27	PANEL-INNER-REFR
28	SCREW-MTG (34)
29	WCI 8016536
30	WCI 8009664
31	WCI 8011230
32	RACK-DOOR (3)
33	WCI 8011179
