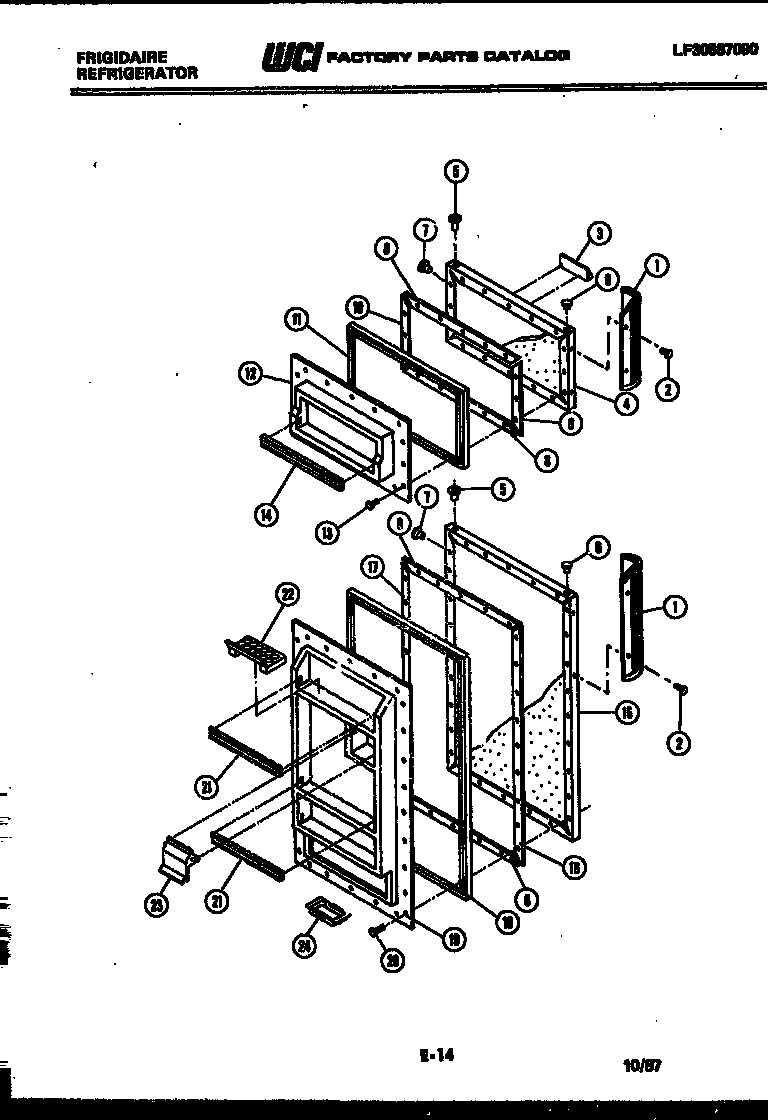

FPI11TAW5 03 – DOOR PARTS

Products

PositionProduct
1HANDLE ASSY (2)
2SCREW-HANDLE MOUNTING (4)
3WCI 8009843
4WCI 8016535
4PANEL-EXT-ALMD RH
5HINGE BEARING (8)
6PLUGS
7PLUG-HANDLE, WHITE
8RETAINER-TOP/BTM
9RETAINER-FRZR RS
10RETAINER-FRZR LS
11GASKET-FRZR
12PANEL-INNER-FRZR
15WCI 8013301
16RETAINER-REFR RS
17RETAINER-REFR LS
18GASKET-REFR.
19PANEL-INNER-REFR
20SCREW-MTG (34)
21RACK-DOOR (3)
22WCI 8011179
23WCI 8011230
24WCI 8009664
