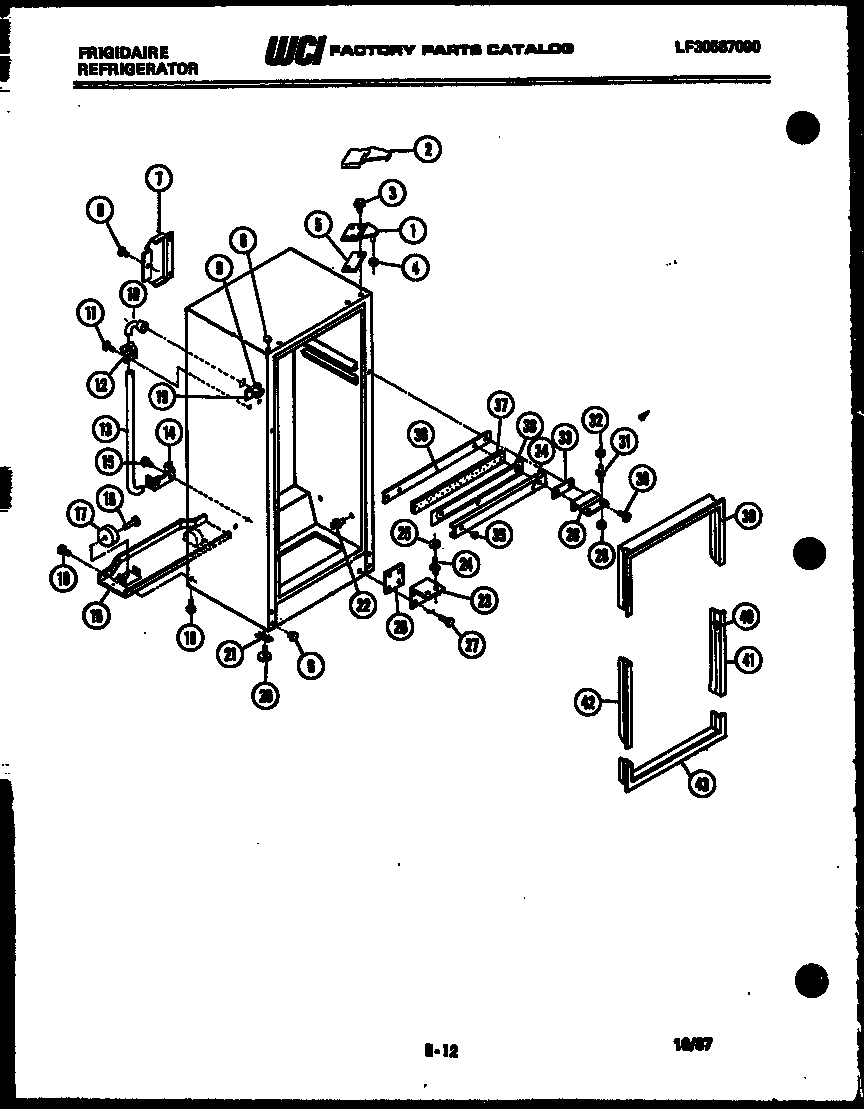

FPI11TLAL5 02 – CABINET PARTS

FPI11TLAL5 02 – CABINET PARTS

Written by

in

FPI11TLAL5 02 – CABINET PARTS

Products

Position	Product
1	WCI 8011172
2	COVER-HNG-ALMD
3	SCREW-HINGE MOUNTING (2)
5	SHIM-TOP HNG
6	WCI 8007129
7	WCI 8011184
9	SPOUT-DRAIN
10	WCI 8011116
12	RETAINER
13	WCI 8017578
14	TRAP BRACKET
16	PIN-ROLLER (2)
17	ROLLER-REAR (2)
18	SCREW-MTG. (10)
19	WCI 8012871
20	SCREW-LEVLNG (2)
21	TEE NUT (2)
22	SUPPORT (4)
23	HINGE BRKT-BTM
24	PIN-LOWER HINGE
26	SHIM-BTM HNG
27	SCREW-SEMS (3)
28	HINGE BRKT – CTR
29	WCI 8011151
30	WCI 8000127
31	WCI 8000184
32	WCI 8011152
33	SHIM-CTR HNG
34	MULLION – ALMD
35	WCI 8016534
36	HEATER-MULLION
37	WCI 8011192
38	WCI 8011211
39	WCI 8011225
40	SWITCH, LIGHT
41A	WCI 8011128
42A	WCI 8017576
43	MOULDING-BTM
