FPI11TLAL5 03 – DOOR PARTS – Aparts

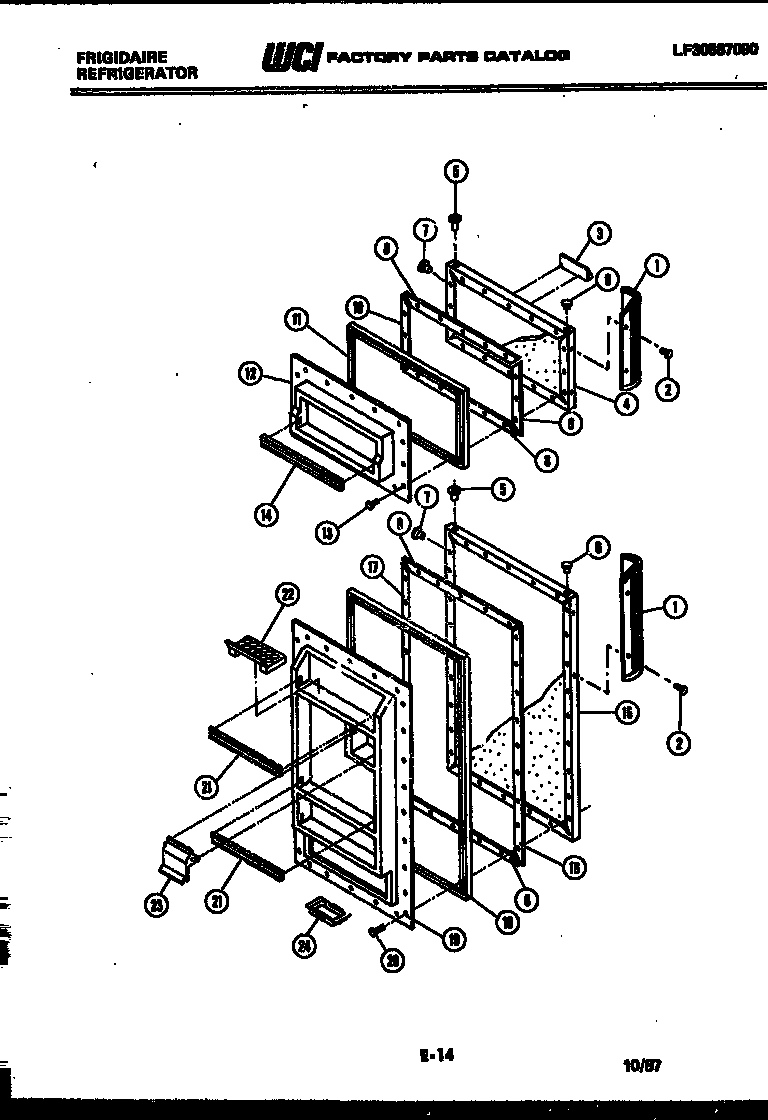

FPI11TLAL5 03 – DOOR PARTS

Products

Position	Product
1	HANDLE ASSY (2)
2	SCREW-HANDLE MOUNTING (4)
3	WCI 8009843
4A	WCI 8016536
4A	WCI 8016538
5	HINGE BEARING (8)
6	PLUG-HNG-ALMD
7	PLUG-HANDLE, ALMOND
8	RETAINER-TOP/BTM
9	RETAINER-FRZR RS
10	RETAINER-FRZR LS
11	GASKET-FRZR
12	PANEL-INNER-FRZR
15	PANEL-EXT-ALMD
16	RETAINER-REFR RS
17	RETAINER-REFR LS
18	GASKET-REFR.
19	PANEL-INNER-REFR
20	SCREW-MTG (34)
21	RACK-DOOR (3)
22	WCI 8011179
23	WCI 8011230
24	WCI 8009664
