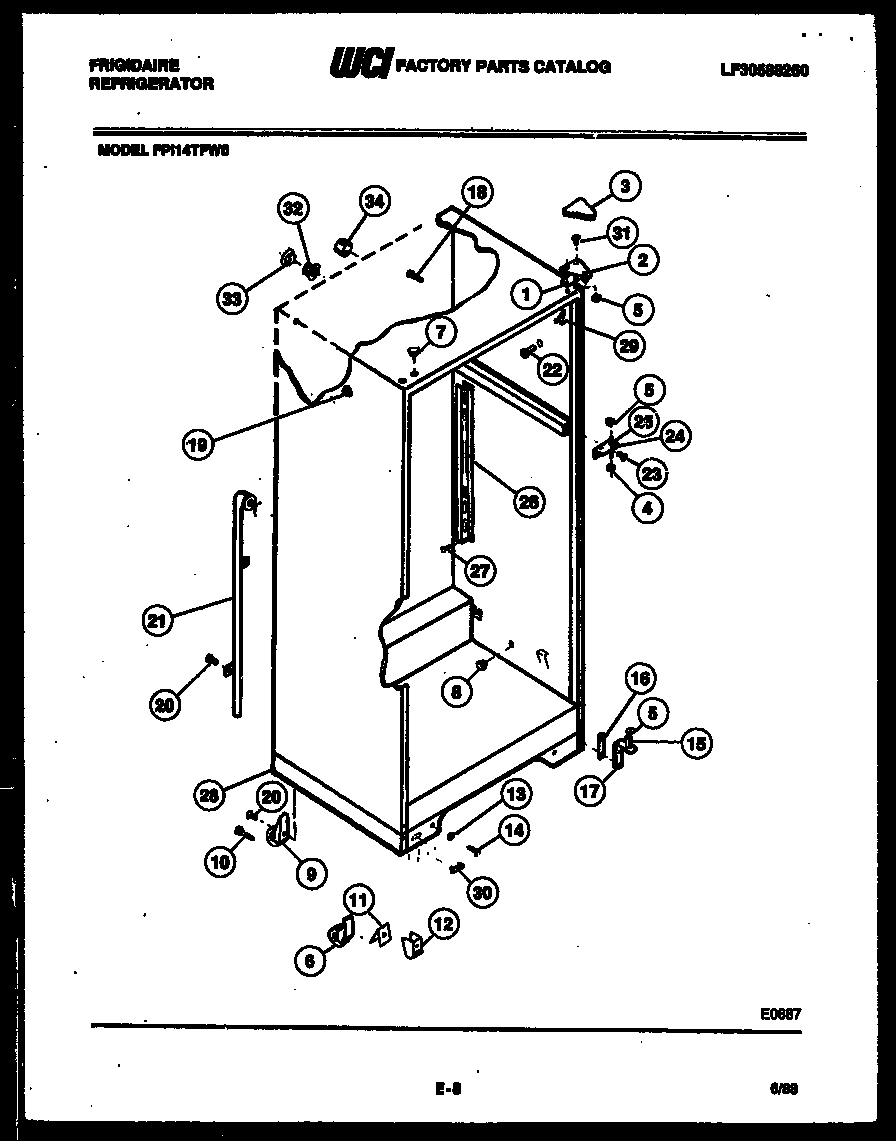

FPI14TFL0 03 – CABINET PARTS

FPI14TFL0 03 – CABINET PARTS

Written by

in

FPI14TFL0 03 – CABINET PARTS

Products

Position	Product
1	WCI 8012829
2	WCI 8012843
3	COVER, HNG, ALMD
4	WASHER-5/16 NYLON
5	WASHER-1/4 NYLON (3)
6	ROLLER-FRONT (2)
7	WCI 8007129
8	PLUG-REFRIGERATOR LINER (2)
9	WCI 8009773
10	WCI 8009762
11	WCI 8009790
12	WCI G185848
13	WCI 8011326
14	WCI 8009761
15	PIN-LOWER HINGE
16	SHIM-LOWER HINGE
17	BRACKET-HNG
17A	SCREW-HINGE MOUNTING
18	WCI 8000097
19	WCI 8016571
20	SCREW-TUBE MOUNTING (2)
21	WCI 8003605
22	WCI 8000244
23A	WCI 8003607
23	SCREW-HINGE/MULLION (4)
24	WCI 8000757
25	WCI 8000184
26	WCI 8000302
27	WCI 8002728
28	WCI 8010090
29	WCI 8003618
30	WCI 8003585
31	SCREW-HINGE MOUNTING (2)
32	WCI 8006970
33	WCI 8006971
34	WCI 8000004
