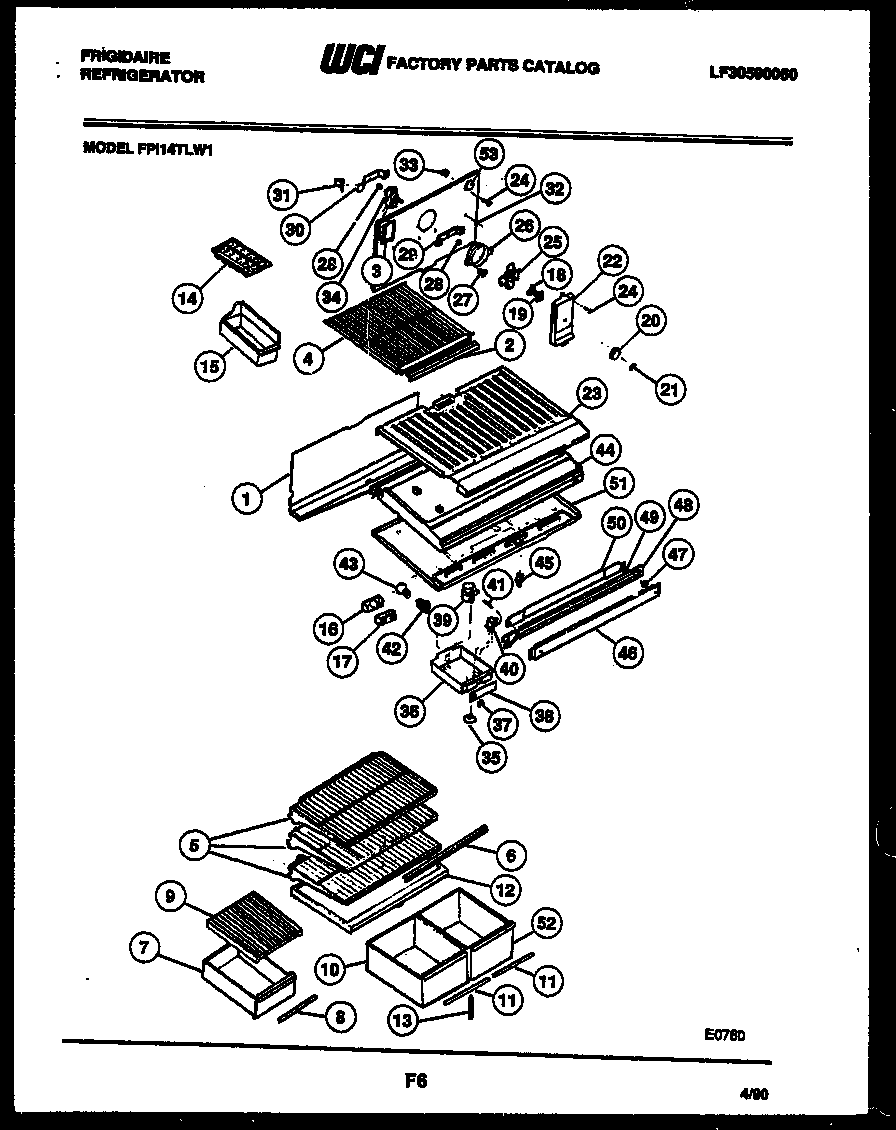

FPI14TLL1 04 – SHELVES AND SUPPORTS

FPI14TLL1 04 – SHELVES AND SUPPORTS

Written by

in

FPI14TLL1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1TROUGH-DRAIN
2WCI 3018933
3BUTTON – DECORATIVE PLUG
4WCI 5308009974
5WCI 5303209980
6WCI 3018935
7WCI 3018936
8WCI 3018937
9WCI 3018938
10WCI 3018939
11WCI 3018940
12WCI 3018425
13SUPPORT-CRISPER CVR, ADJUSTABLE
14WCI 08000153
155303212918 Frigidaire Refrigerator Cont
16DEFLECTOR-AIR
17COVER – AIR DEFLECTOR
18DAMPER-FAN COVER
19Nut,push-on
20KNOB, DAMPER
21LABEL, KNOB
22WCI 08009819
23WCI 5308000748
255308000010 Frigidaire Refrigerator Evaporator Fan Blade
26RING-FAN ORIFICE
28G187559 Frigidaire Refrigerator Bushing
29WCI 5303001226
30BRACKET-MOTOR MTG, REAR
31WCI 5308000107
31A218843801 Frigidaire Refrigerator Screw
32WCI 3001358
33NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
345300158289 Frigidaire Evaporator Fan Motor
35WCI 08006978
36WCI 5308009730
36A5304455650 Frigidaire Refrigerator Screw
37WCI 5308016615
38WCI 08006988
39A5304455649 Frigidaire Refrigerator Screw
39215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40AWCI 5303001260
40WCI 5308015762
41TUBE
42SOCKET-LIGHT/LAMP
43316538904 Frigidaire Oven Lamp Light
44WCI 5308000759
455309918806 Frigidaire Refrigerator Light Switch Door
46WCI 5303916134
46AWCI 53008012258
47WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
48WCI 5308017408
49WCI 3001370
50WCI 5308003604
51AWCI 5303001380
51TOP PANEL-REFR, W/ SNAP BUSHING
52WCI 3018941
535303208309 Frigidaire Refrigerator Plug Hole
