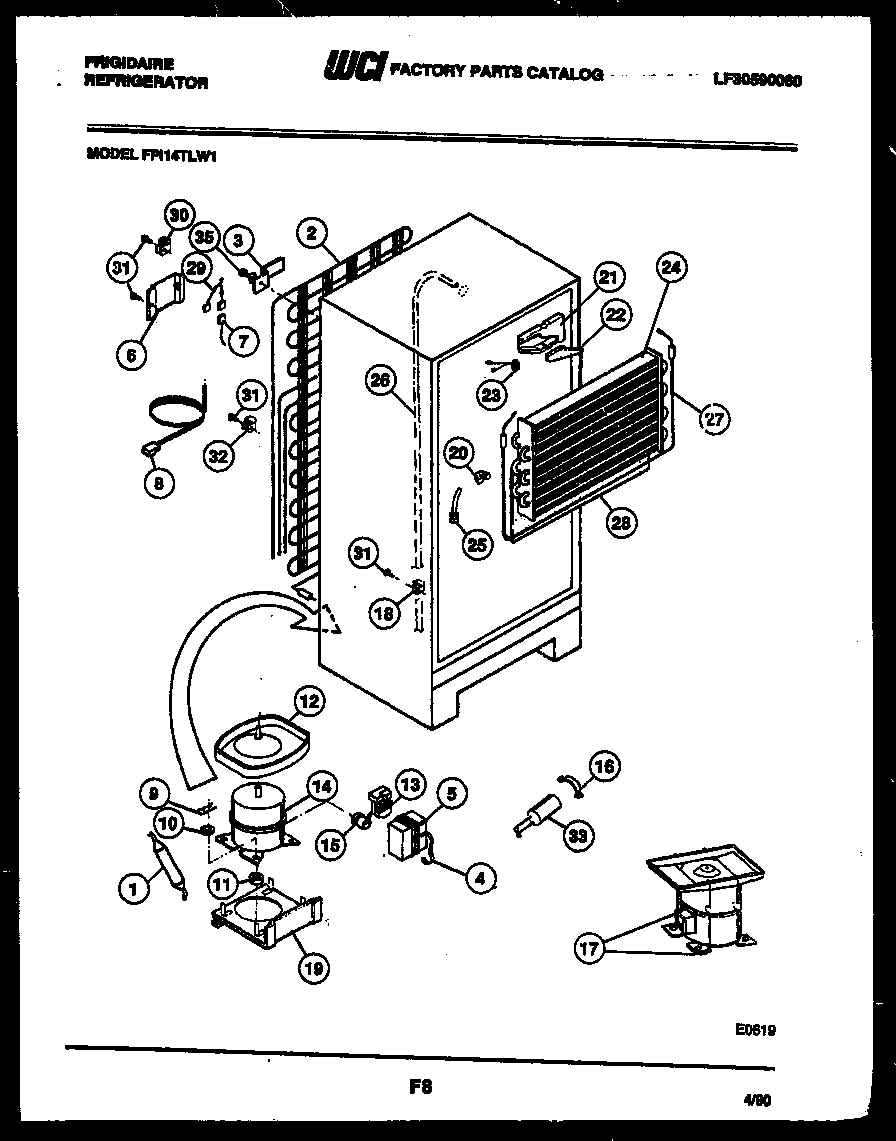

FPI14TLL1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

Products

Position	Product
1A	WCI 3201679
1	5303305677 Frigidaire Replacement Filter Dryer Filters
1B	218843801 Frigidaire Refrigerator Screw
2	WCI 5303001341
2A	HOT TUBE REPAIR KIT-SERVICE
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3	BRACKET-MTG (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI 5303001197
7	WIRING HARNESS, COMPRESSOR,
8	CORD-ELECTRIC POWER
9	CLIP – COMPRESSOR MTG
10	WASHER-COMPR MTG
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12A	Nut,lock `1/4-20 ,drain pan mtg
12	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12B	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13	RELAY-TL
14	COMPRESSOR W/ ELEC
15	WCI 5303001713
16	STRAP CAPACITOR
17	PAN RETAINER KIT, SERVICE
19	WCI 5308009596
20	INSULATION BLOCK, LH
21	INSULATION BLOCK, RH
22	INSULATION PLUG, RH
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	HEAT EXCHANGER, SUCTION LINE
27	WCI 5303001362
28	INSULATOR-EVAP, PLASTIC
29	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
30	5308000133 Frigidaire Refrigerator Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
33	WCI 5303018427
35	5308000039 Frigidaire Refrigerator Screw
