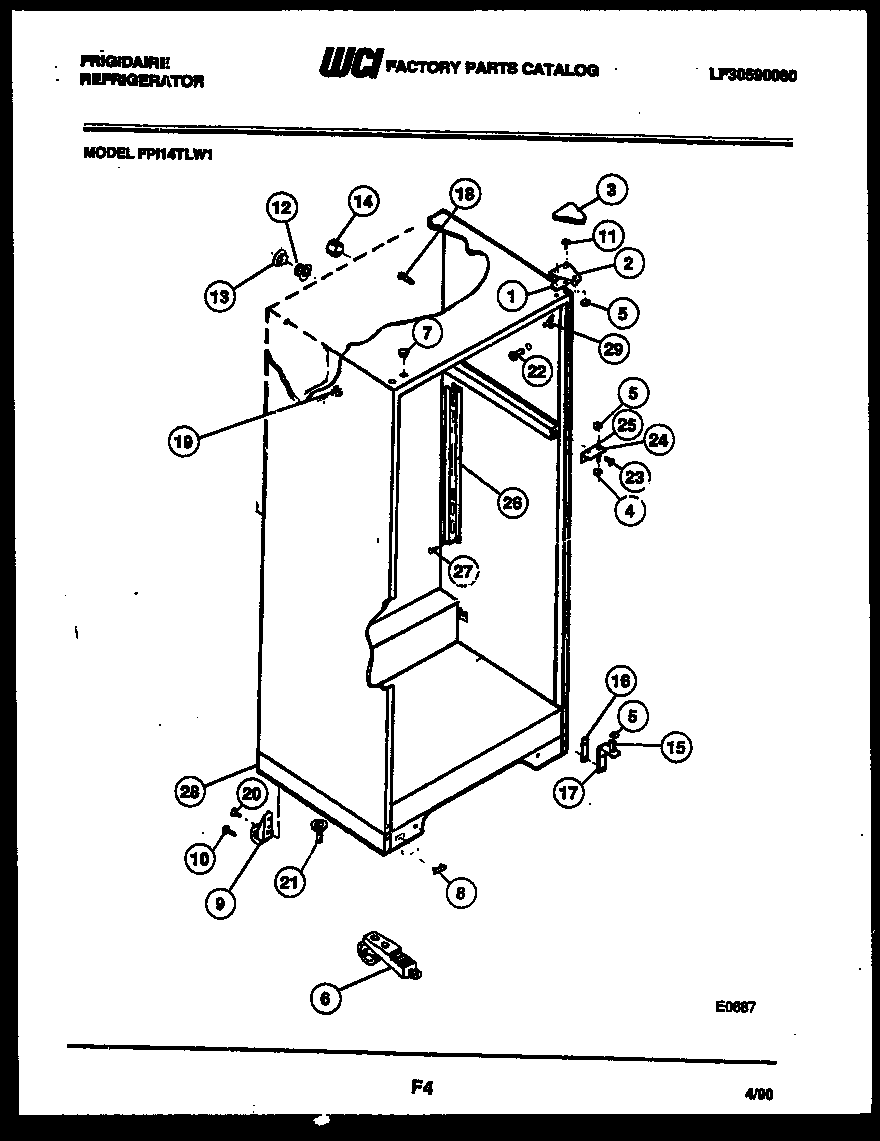

FPI14TLW1 03 – CABINET PARTS

FPI14TLW1 03 – CABINET PARTS

Written by

in

FPI14TLW1 03 – CABINET PARTS

Products

PositionProduct
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-UPPER HINGE, WHITE
4WASHER, .28 X .62 X .19, NYLON
5WASHER, .34 X .62 X .05, NYLON
6WCI 5300188673
6CWCI 5308011326
6BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
6D5304455650 Frigidaire Refrigerator Screw
6AWCI 5308009790
7PLUG-BUTTON, WHITE
8COVER-HOLE, LOWER HINGE
9WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
12WCI 5303001286
13WCI 5303001287
14TUBE-RUBBER
155303001321 Frigidaire Refrigerator Lower Hinge Pin
16SHIM-LOWER HINGE
17ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
17HINGE – LOWER DOOR
17B241710601 Frigidaire Refrigerator Screw
18SUPPORT-COIL COVER
19PLUG, BUTTON, CABINET LINER (NI)
205304455651 Frigidaire Refrigerator Screw
21TUBE – DRAIN
22SUPPORT-SHELF (2)
22ASCREW (2)
23WCI 5308012258
24BRACKET-CTR HINGE
25WCI 5308000184
26CHANNEL, RH & LH
275304455852 Frigidaire Refrigerator Screw
28WCI 5303006086
29CORNER TRIM, WHITE (4)
