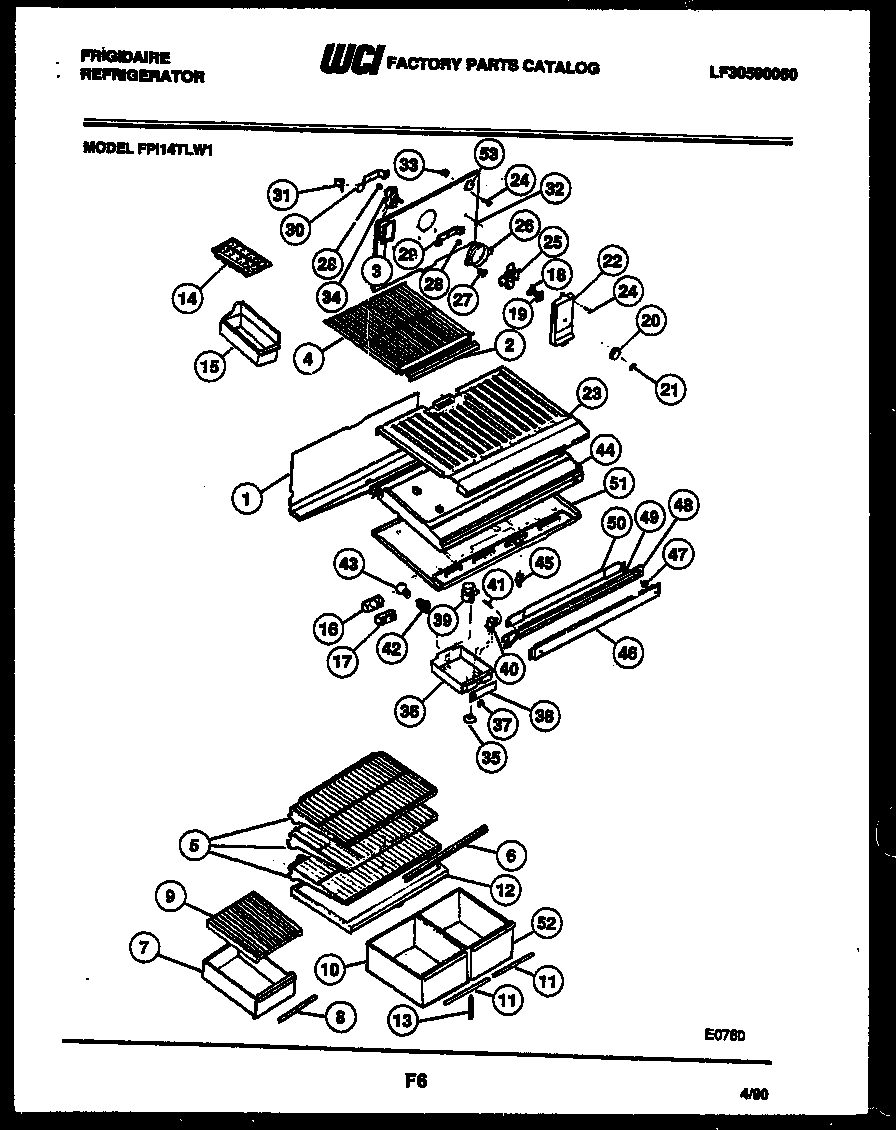

FPI14TLW1 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	TROUGH-DRAIN
2	WCI 3018933
3	BUTTON – DECORATIVE PLUG
4	WCI 5308009974
5	WCI 5303209980
6	WCI 3018935
7	WCI 3018936
8	WCI 3018937
9	WCI 3018938
10	WCI 3018939
11	WCI 3018940
12	WCI 3018425
13	SUPPORT-CRISPER CVR, ADJUSTABLE
14	WCI 08000153
15	5303212918 Frigidaire Refrigerator Cont
16	DEFLECTOR-AIR
17	COVER – AIR DEFLECTOR
18	DAMPER-FAN COVER
19	Nut,push-on
20	KNOB, DAMPER
21	LABEL, KNOB
22	WCI 08009819
23	WCI 5308000748
25	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
26	RING-FAN ORIFICE
28	G187559 Frigidaire Refrigerator Bushing
29	WCI 5303001226
30	BRACKET-MOTOR MTG, REAR
31A	218843801 Frigidaire Refrigerator Screw
31	WCI 5308000107
32	WCI 3001358
33	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
34	5300158289 Frigidaire Evaporator Fan Motor
35	WCI 08006978
36A	5304455650 Frigidaire Refrigerator Screw
36	WCI 5308009730
37	WCI 5308016615
38	WCI 08006988
39A	5304455649 Frigidaire Refrigerator Screw
39	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40A	WCI 5303001260
40	WCI 5308015762
41	TUBE
42	SOCKET-LIGHT/LAMP
43	316538904 Frigidaire Oven Lamp Light
44	WCI 5308000759
45	5309918806 Frigidaire Refrigerator Light Switch Door
46	WCI 5303200465
46A	WCI 53008012258
47	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
48	WCI 5308017408
49	WCI 3001370
50	WCI 5308003604
51	TOP PANEL-REFR, W/ SNAP BUSHING
51A	WCI 5303001380
52	WCI 3018941
53	5303208309 Frigidaire Refrigerator Plug Hole
