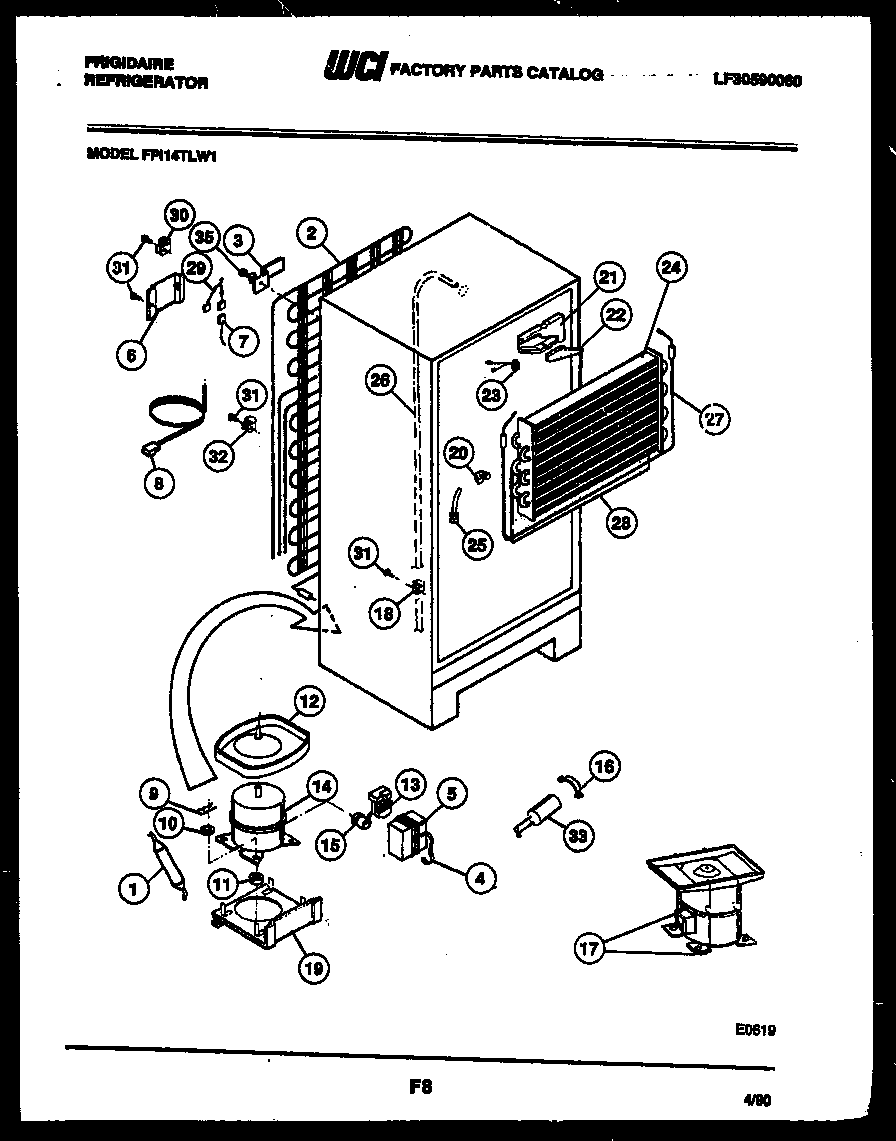

FPI14TLW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPI14TLW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPI14TLW1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1AWCI 3201679
15303305677 Frigidaire Replacement Filter Dryer Filters
1B218843801 Frigidaire Refrigerator Screw
2WCI 5303001341
2AHOT TUBE REPAIR KIT-SERVICE
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3BRACKET-MTG (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12ANut,lock `1/4-20 ,drain pan mtg
12PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
13RELAY-TL
14COMPRESSOR W/ ELEC
15WCI 5303001713
16STRAP CAPACITOR
17PAN RETAINER KIT, SERVICE
19WCI 5308009596
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT EXCHANGER, SUCTION LINE
27WCI 5303001362
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
305308000133 Frigidaire Refrigerator Clamp
315304455651 Frigidaire Refrigerator Screw
325303001199 Frigidaire Refrigerator Wiring Harness Clamp
33WCI 5303018427
355308000039 Frigidaire Refrigerator Screw
