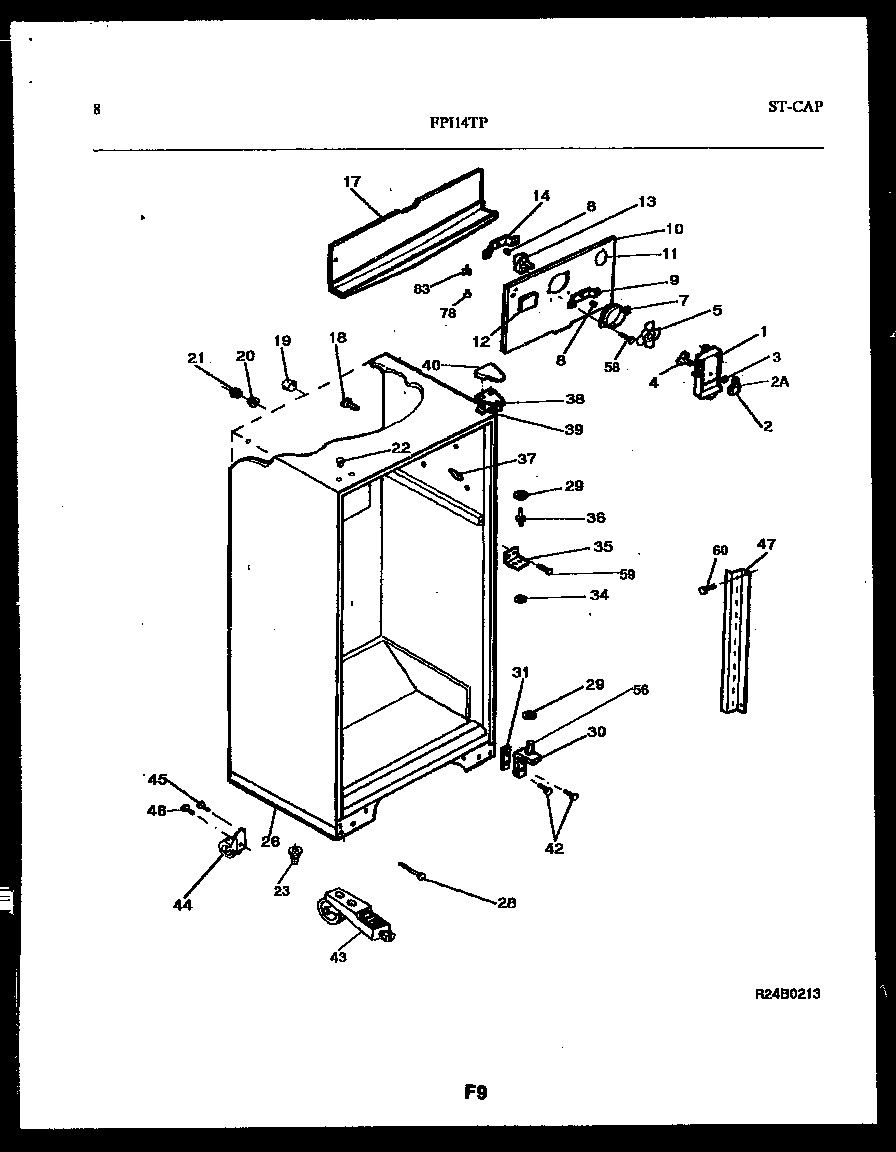

FPI14TPH0 05 – CABINET PARTS

Products

Position	Product
*48145	PLUG, BUTTON, CABINET LINER (NI)
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
40	COVER – HINGE-WHEAT
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5300188673
43B	WCI 5308011326
43A	WCI 5308009790
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
60	5304455852 Frigidaire Refrigerator Screw
83	WCI 5308000107
