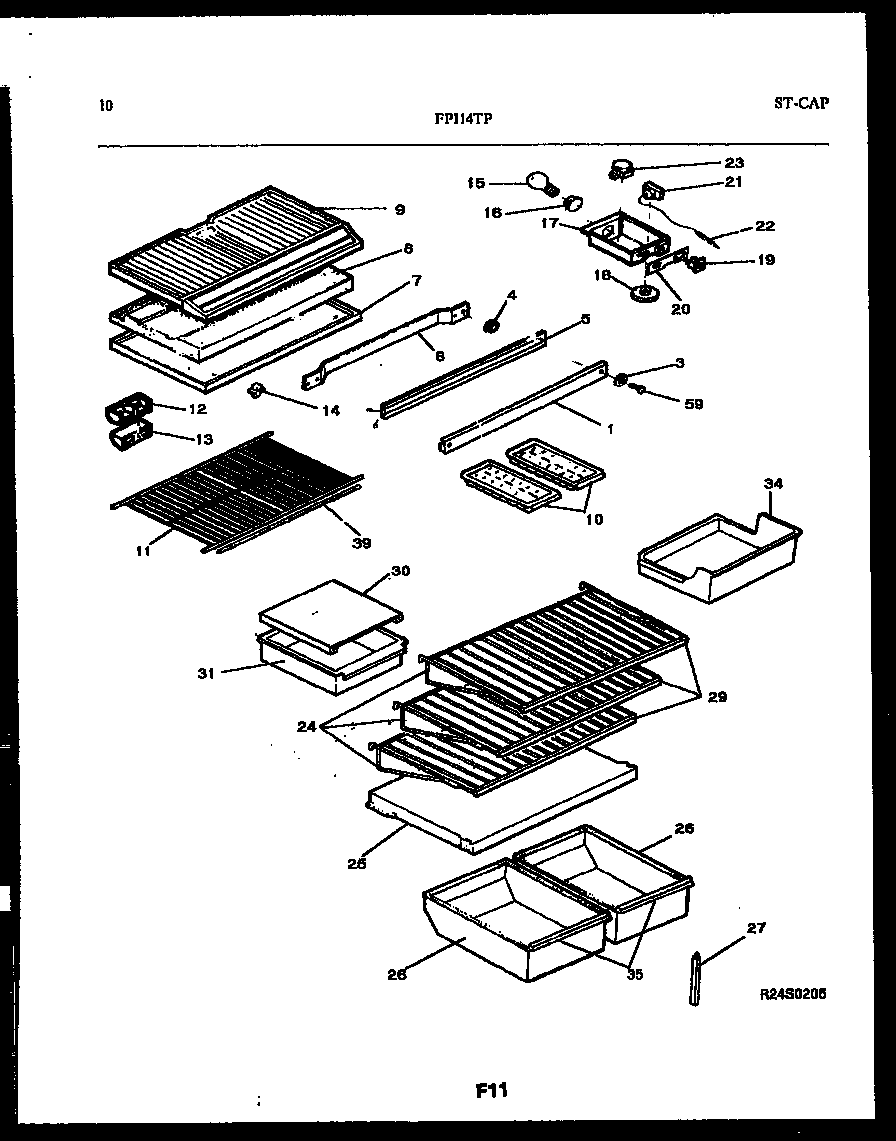

FPI14TPW0 06 – SHELVES AND SUPPORTS

FPI14TPW0 06 – SHELVES AND SUPPORTS

Written by

in

FPI14TPW0 06 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200465
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4WCI 3001370
5WCI 5308017408
6WCI 5308003604
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/ SNAP BUSHING
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8WCI 5308000759
9WCI 5308000748
10WCI 01121808
11ASUPPORT-SHELF (2)
11BSCREW (2)
11WCI 5308009974
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5308009730
17A5304455650 Frigidaire Refrigerator Screw
18WCI 08006978
19WCI 5308016615
20WCI 08006988
21WCI 5308015762
21AWCI 5303001260
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303209980
