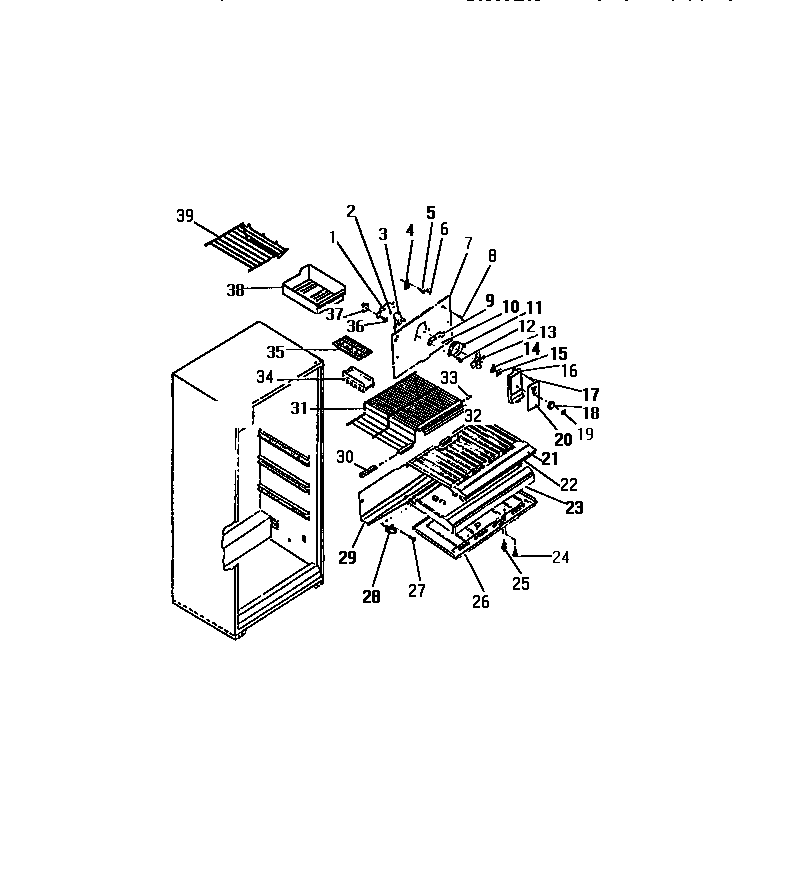

FPI16TCL0 07 – INTERIOR FREEZER COMPARTMENT

Products

Position	Product
1	WCI 8000042
3	WCI 8004176
4	WCI 8000221
6	WCI 8000012
7	COVER-EVAPORATOR
8	SCREW (5)
9	WCI 8000043
10	WCI 8000032
11	WCI 8000124
13	WCI 8000010
14	WCI 8000066
15	WCI 8000067
16	WCI 8009817
18	WCI 8009793
19	WCI 8009823
20	LABEL-FAN COVER
21	WCI 8010002
22	WCI 8009638
23	WCI 8009750
24	SCREW-TOP MOUNTING (3)
25	SWITCH, LIGHT
26	WCI 8010000
27	WCI 8013647
28	WCI 8000056
29	DRAIN TROUGH
30	TRIM-HALF SHELF (3)
31	WCI 8009859
32	TRIM, SHELF
33	WCI 8013638
35	WCI 1121808
36	WCI 8000098
37	WCI 8000107
38	ICE, CONTAINER
