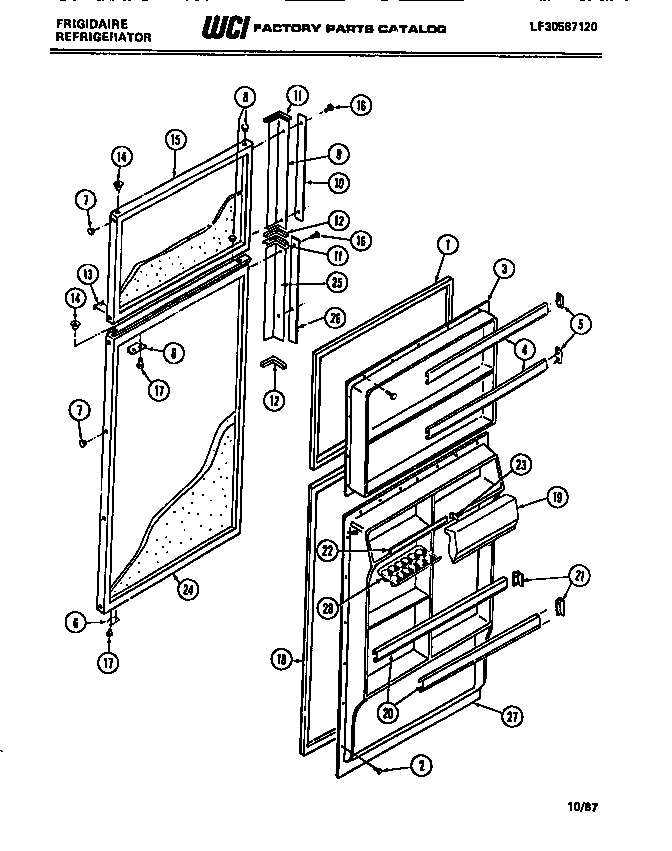

FPI16TEA0 02 – FOOD & FREEZER DOORS

Products

Position	Product
1	WCI 8016626
2	SCREW-PANEL MOUNTING (56)
3	WCI 8009909
6	WCI 8000255
7A	PLUG-HANDLE-AVOCADO
8A	PLUG-HINGE-AVOCADO
11	END CAP-TOP (2)
12	END CAP-BOTTOM (2)
13	WCI 8009843
14	HINGE BEARING (8)
15A	WCI 8012836
16	SCREW-HANDLE MOUNTING (4)
17	WCI 8011745
18	WCI 8009733
19	WCI 8009784
20	WCI 8009700
21A	SUPPORT-RACK LS (2) (NON-ILLUSTRATED)
21	SUPPORT-RACK RS (2)
22	DOOR RACK-TOP
23	SUPPORT-RACK LS (NON-ILLUSTRATED)
23A	SUPPORT-RACK RS
24A	REFR DOOR-AVOCADO
25	HANDLE ASSY W/ CAP & TRIM
26	WCI 8010232
27	WCI 8009791
28	EGG TRAY
28B	KIT DR CONV, AVOC (NI)
