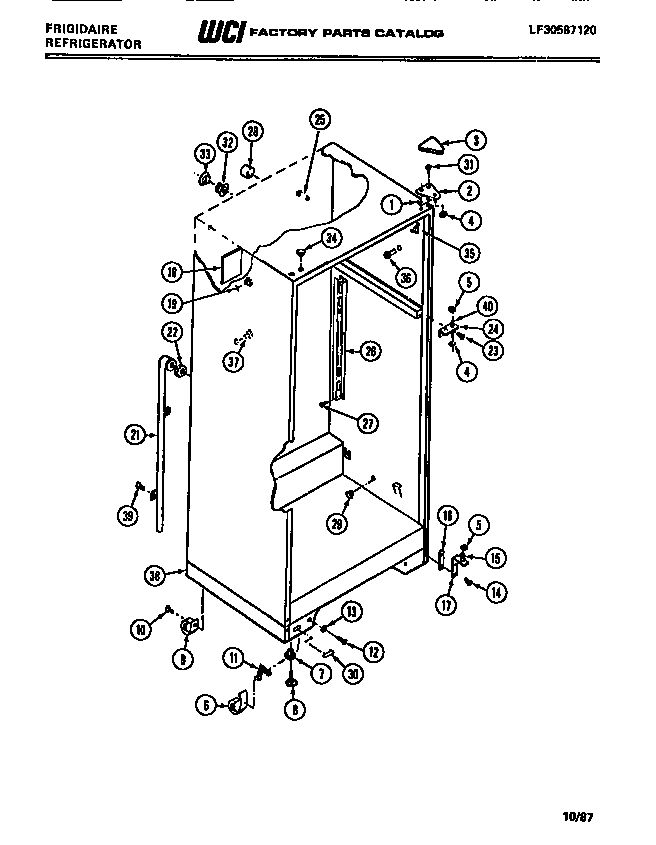

FPI16TEH0 03 – CABINET

Products

Position	Product
1	WCI 8012829
2	WCI 8012843
3B	COVER-HNG-WEAT
4	WASHER-1/4 NYLON (3)
5	WASHER-5/16 NYLON
6	WCI 8009760
7	WCI 8003584
8	SCREWS LEVELING (4)
9	WCI 8009773
9A	SCREW (5)
10	WCI 8009762
11	WCI 8009790
12	WCI 8009761
13A	WCI 8013678
13	WCI 8011326
14	SCREW-HINGE MOUNTING
15	PIN-LOWER HINGE
16	SHIM-LOWER HINGE
17	WCI 8017609
18	WCI 8000082
19	WCI 8016571
21	WCI 8010012
22	WCI 8009755
23	SCREW-HINGE/MULLION (4)
24	WCI 8000757
25	WCI 8000097
26	WCI 8000302
27	WCI 8002728
28	WCI 8000004
29	PLUG-REFRIGERATOR LINER (2)
30	WCI 8003585
31	SCREW-HINGE MOUNTING (2)
32	WCI 8006970
33	WCI 8006971
34B	WCI 8007127
35B	WCI 8010016
36	WCI 8002747
37	WCI 8009759
38	CABINET BASE
39A	TAPPING PLATE (4)
39	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
40	WCI 8000184
